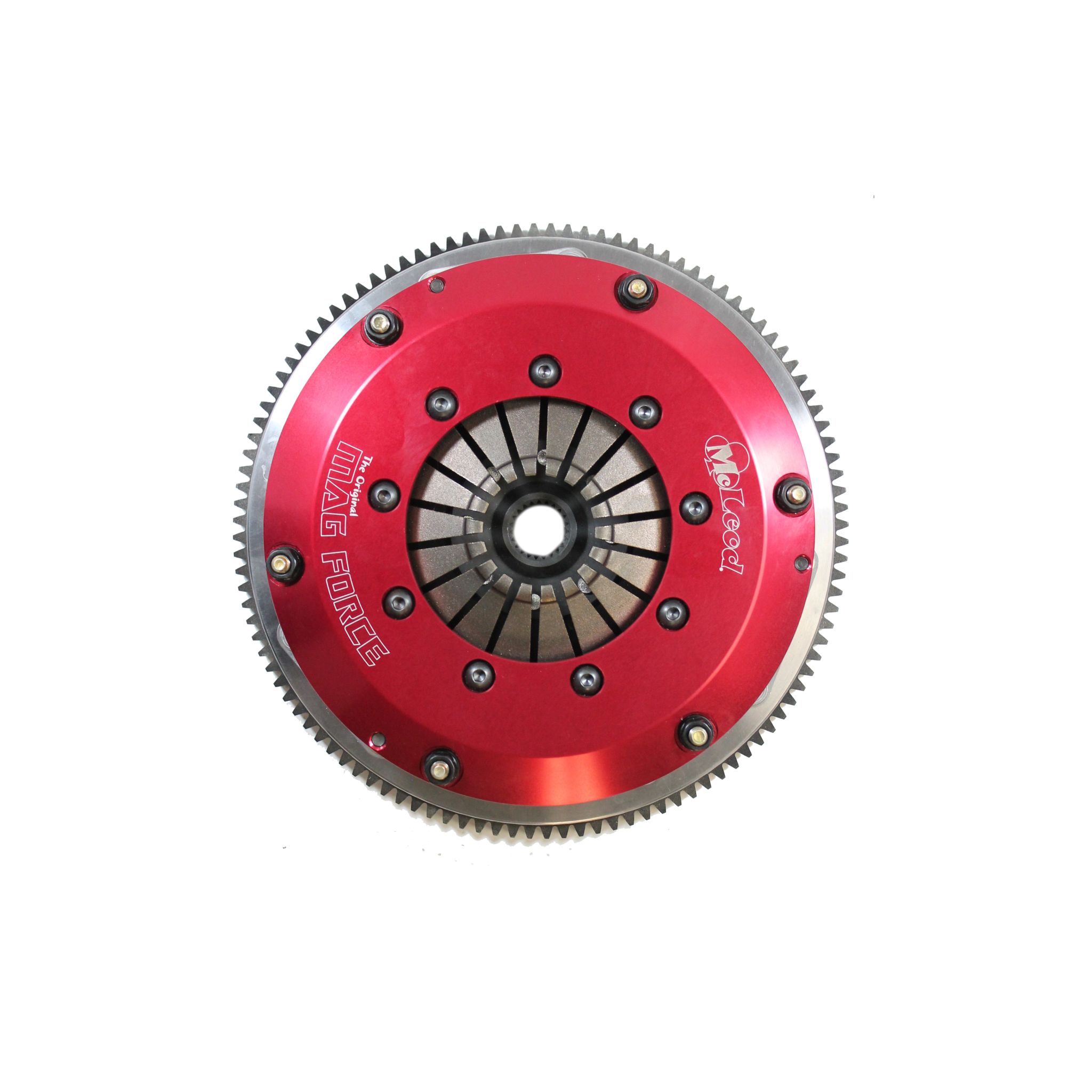

Mag ForceSE: 2 Disc: Pin Drive: Ford 1963-95 SBF 289/302/351: 1-1/16 x 10: 157T

Mag Force SE – Rated up to 700 HP, this clutch system is perfect for high horsepower street cars in both Import and Domestic applications. With a billet aluminum cover, ceramic discs, this is your ideal clutch for the street or Road Racing, Drag Racing and Salt Flats Time trials.

Additional Attributes:

GTIN: 00887753314888
Alignment Tool Included: Yes
Clutch Disc Quantity: 2
Clutch Usage: Performance
Counter Weight Kit if Required: 563333 (sold separately)
Counterweight Assist: No
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Disc Diameter (in.): 8.000
Disc Material: Ceramic
Disc Style: Segmented
Engine Balance: Internal
Flywheel Included: Yes
Flywheel Material: Billet aluminum
Hardware Included: Yes
Horsepower Rating: 1500
Hub Style: Solid
Input Shaft Diameter (in.): 1.063
Input Spline Quantity: 10
Make: Ford
Pilot Bushing Included: No
Pressure Plate Style: Diaphragm
Quantity: Sold as a kit.
Ring Gear Tooth Quantity: 157-tooth
Throwout Bearing Included: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 16 x 17 x 5.5 inches
Weight: 25 PG

PDF:

McLeodProductInstructions
