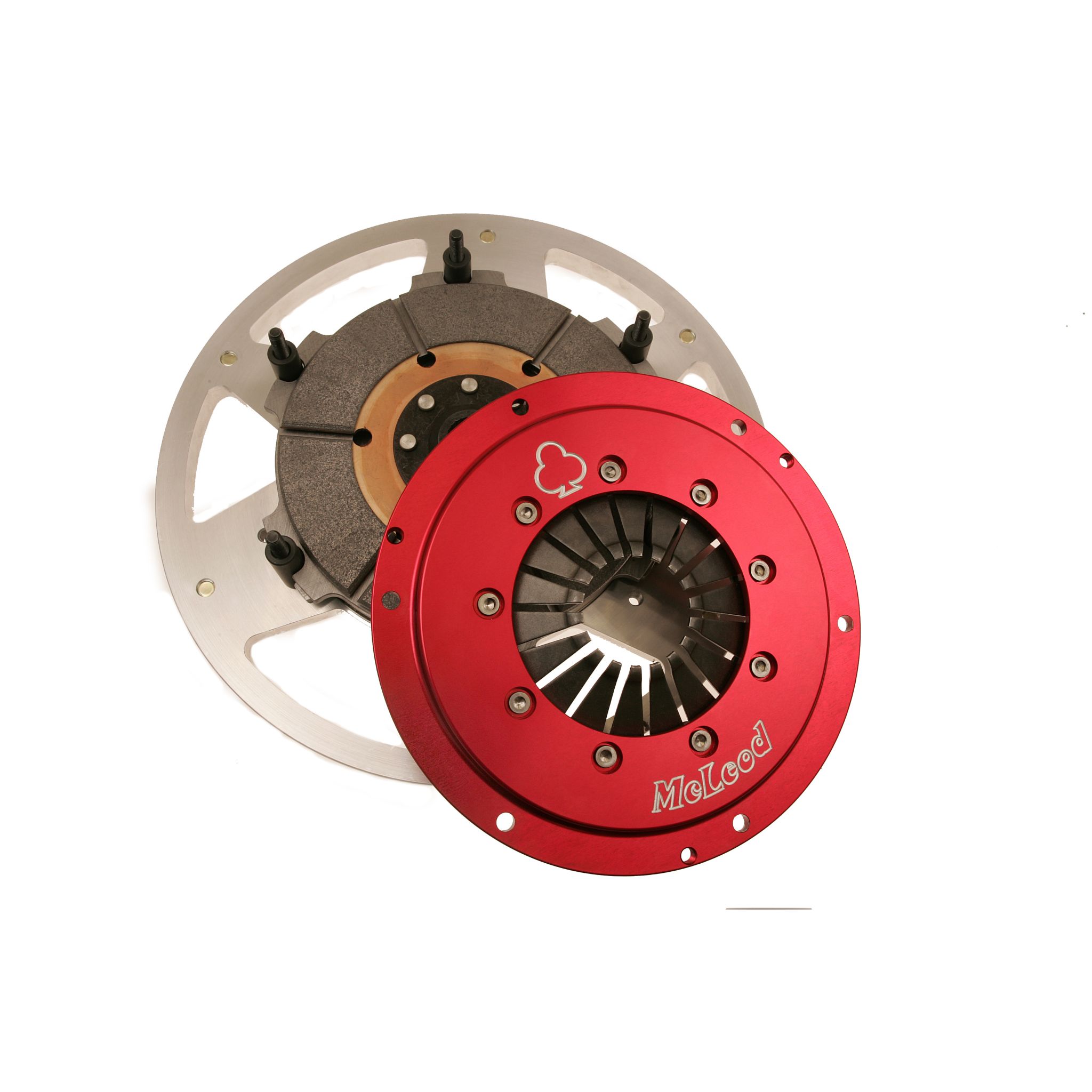

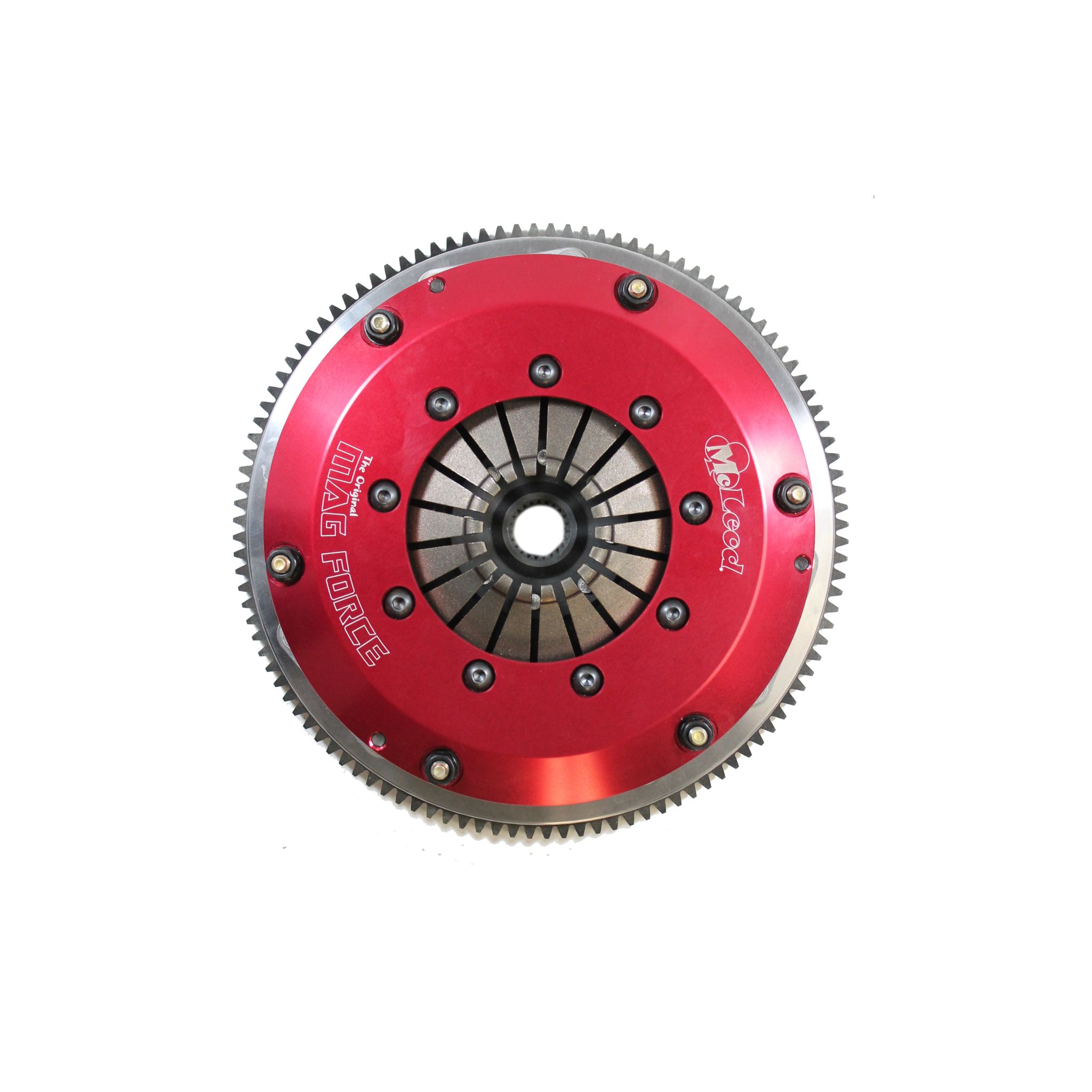

Mag ForceSE: 2 Disc: Pin Drive: Chevrolet 1955-85 SBC: 1-1/8 x 26: 168T

Mag Force SE – Rated up to 700 HP, this clutch system is perfect for high horsepower street cars in both Import and Domestic applications. With a billet aluminum cover, ceramic discs, this is your ideal clutch for the street or Road Racing, Drag Racing and Salt Flats Time trials.

Additional Attributes:

GTIN: 00887753676344
Alignment Tool Included: Yes
Clutch Disc Quantity: 2
Clutch Usage: Performance
Counter Weight Kit if Required: 560222 (sold separately)
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Disc Diameter (in.): 8.000
Disc Material: Ceramic
Disc Style: Segmented
Engine Balance: Internal
Flywheel Included: Yes
Flywheel Material: Billet aluminum
Hardware Included: Yes
Hub Style: Solid
Input Shaft Diameter (in.): 1.125
Input Spline Quantity: 26
Make: Chevrolet
Note: also fits 1991-2022 crate BBC 1pc Seal large crank flange
Pilot Bushing Included: No
Pressure Plate Style: Diaphragm
Quantity: Sold as a kit.
Rear Main Seal Style: 2-piece
Ring Gear Tooth Quantity: 168-tooth
Throwout Bearing Included: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 16 x 17 x 5.5 inches
Weight: 25 PG

PDF:

McLeodProductInstructions
