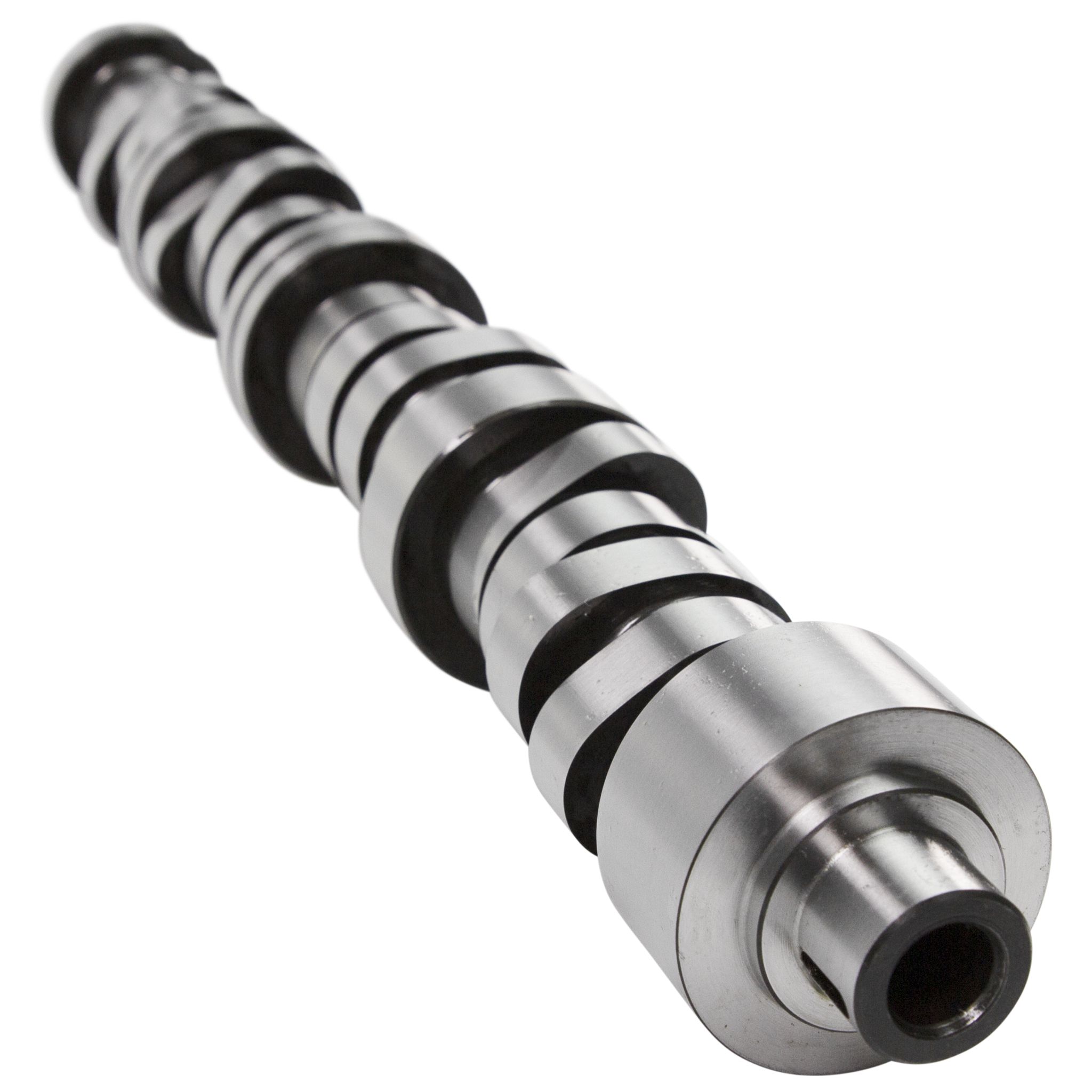

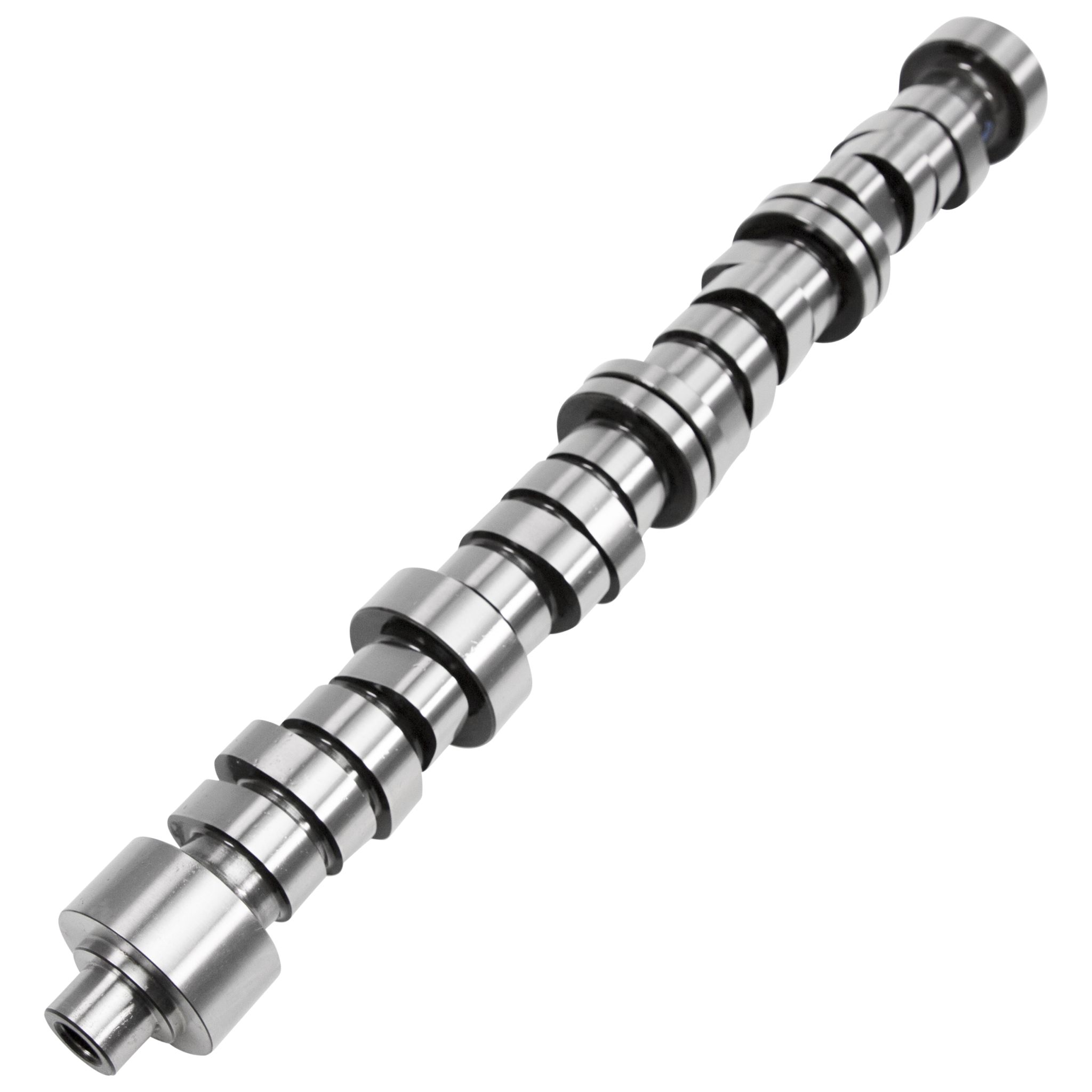

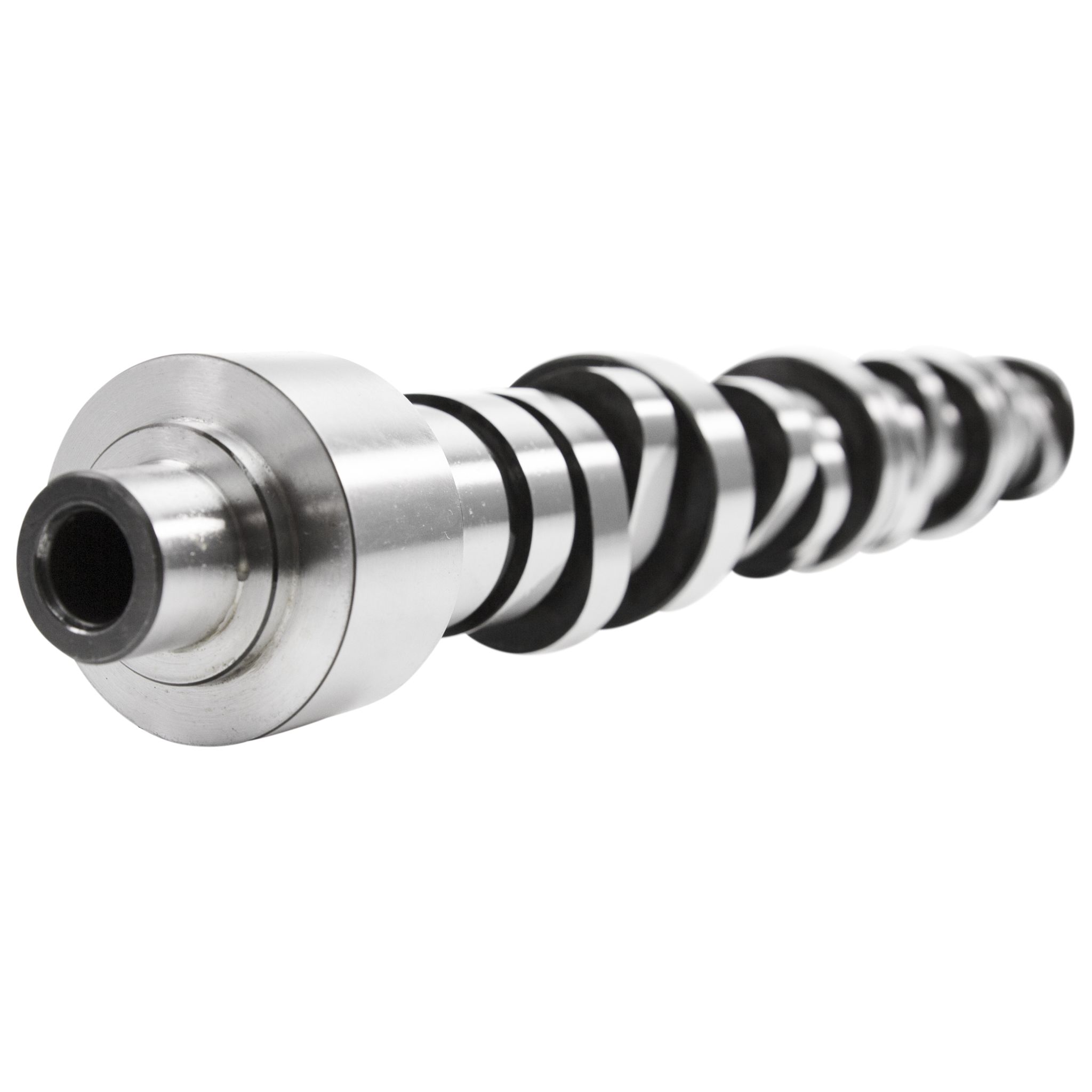

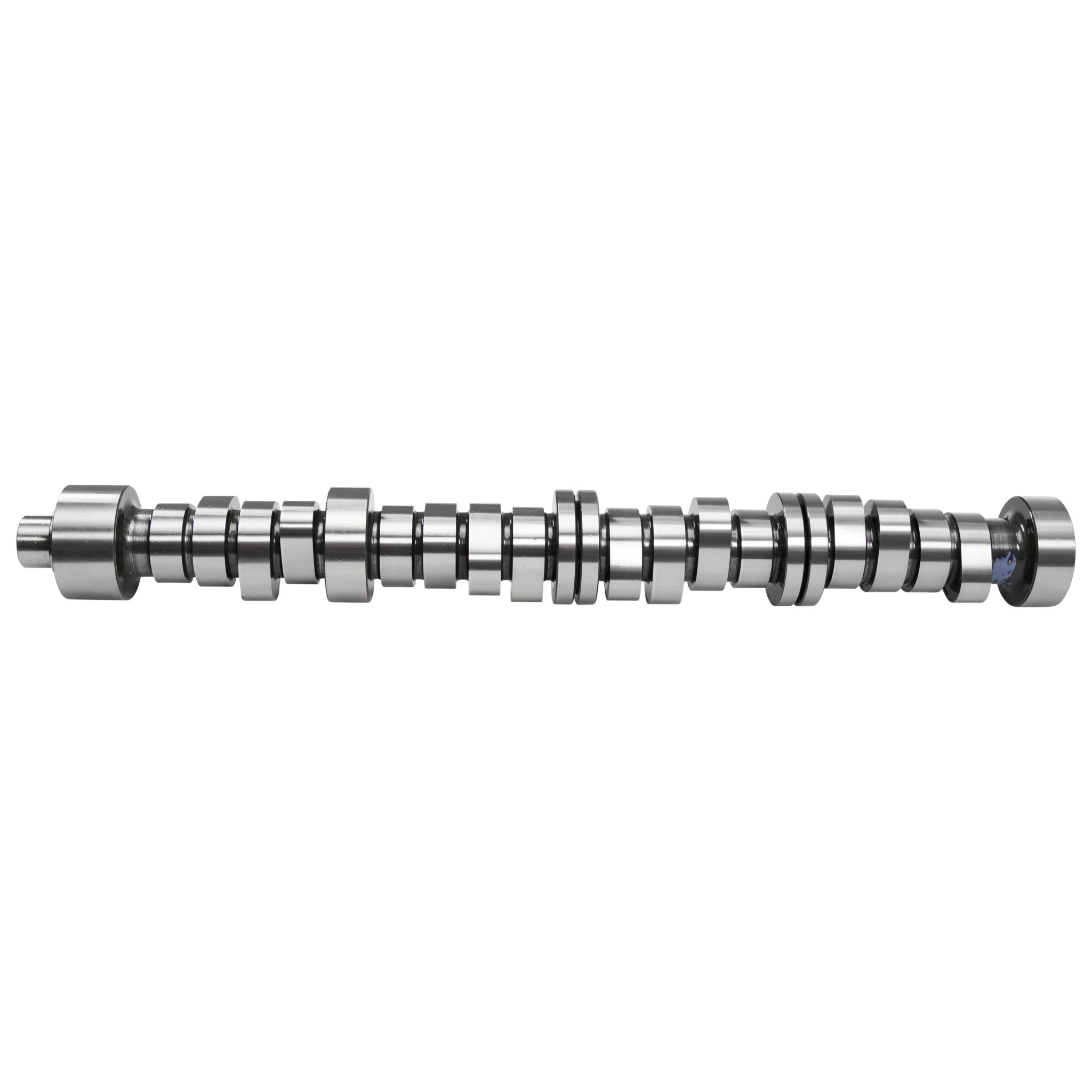

LST Stage 2 Solid Roller Camshaft for ’01-’16 GM 6600/6.6L Duramax Diesel

Stage 1 Camshafts are No Springs Required and run well with the factory or a performance tune. Stage 2 and 3 camshafts require a COMP Cams #26125 Beehive Valve Spring Kit upgrade but do produce the greatest potential for additional power and RPM when matched with maximum effort tuning.

Additional Attributes:

GTIN: 00036584408611
Grind Number: 252LST-R107
Advertised Exhaust Duration: 276
Advertised Intake Duration: 252
Assembly Lubricant Included: No
Basic Operating RPM Range: 1,200-4,000
Cam Type: Solid Roller
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Camshaft Series: LST
Computer Tune Required?: Yes
Engine Family: 2001-2016 GM 6600/6.6L Duramax Diesel
Exhaust Duration at .050 inch Lift: 208
Exhaust Valve Lash: 0.014
Exhaust Valve Lift: 0.475
Grind Number: 252LST-R107
Intake Duration at .050 Inch Lift: 194
Intake Valve Lash: 0.012
Intake Valve Lift: 0.475
Lifter Style: Solid Roller
Lifters Included: No
Lobe Separation: 107
Recommended Valve Spring Kit: 26125ACS-KIT/26125BCS-KIT
Usage: Street/Strip
Valve Springs Required: Yes

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24.0157 x 2.9134 x 2.5984 inches
Weight: 14.3 PG
