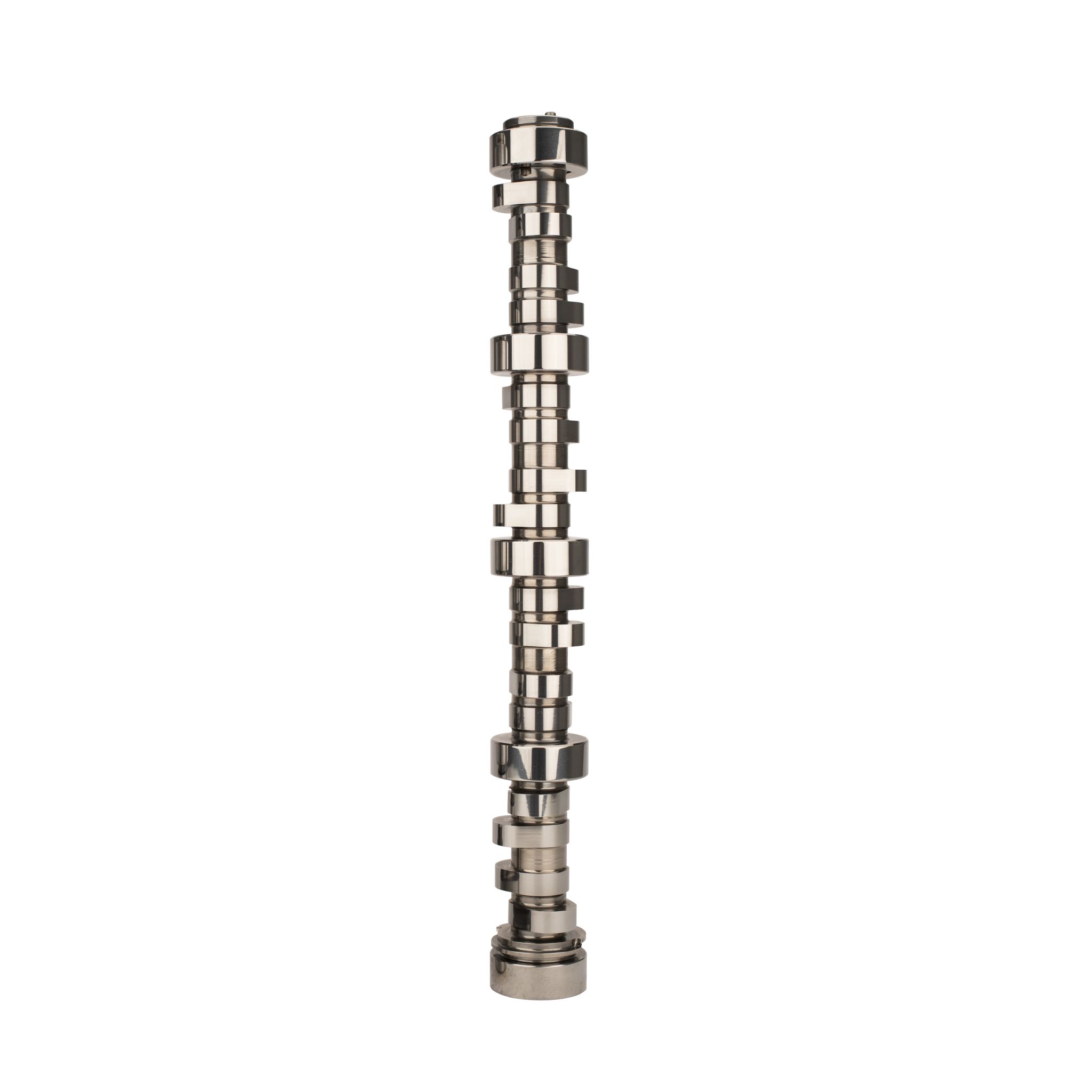

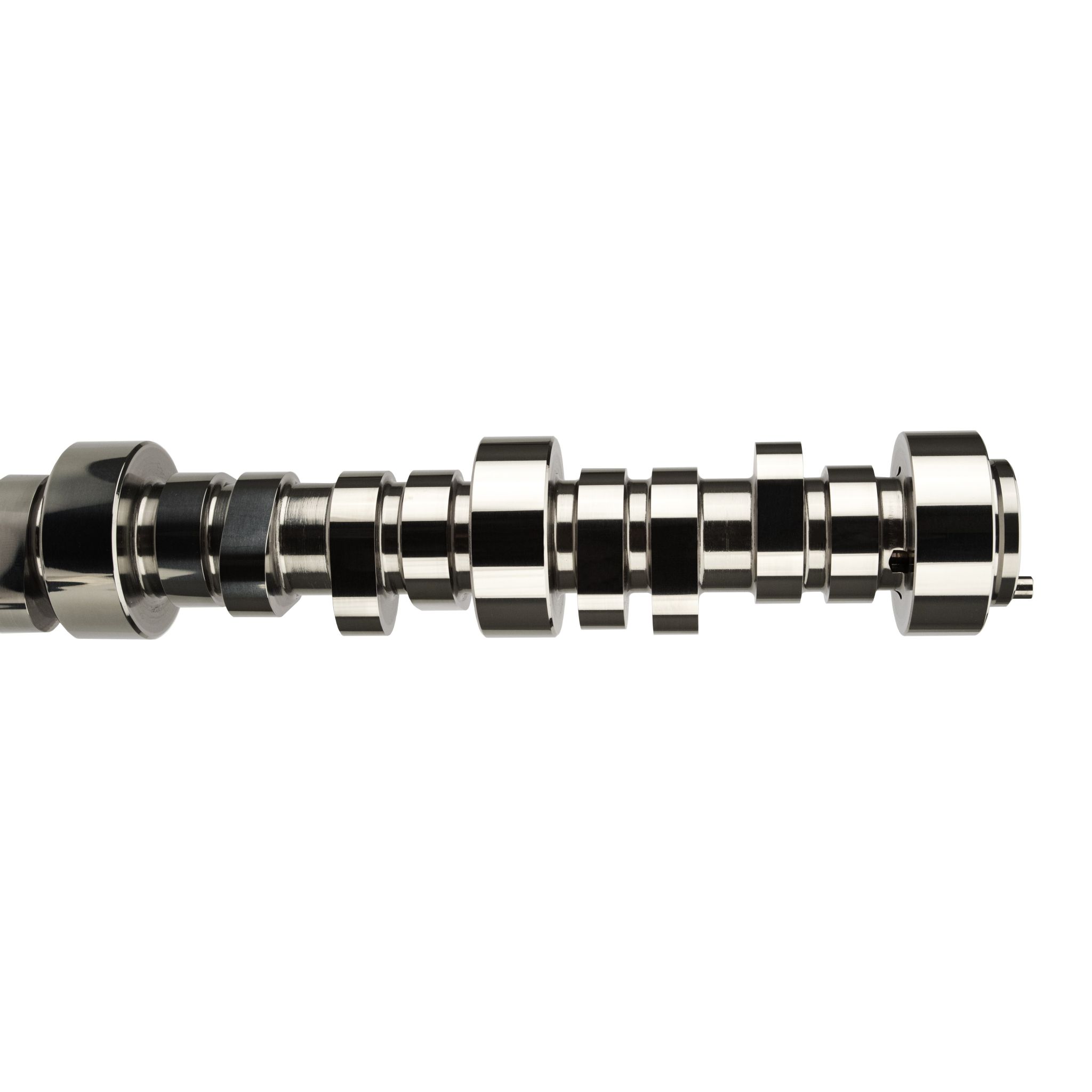

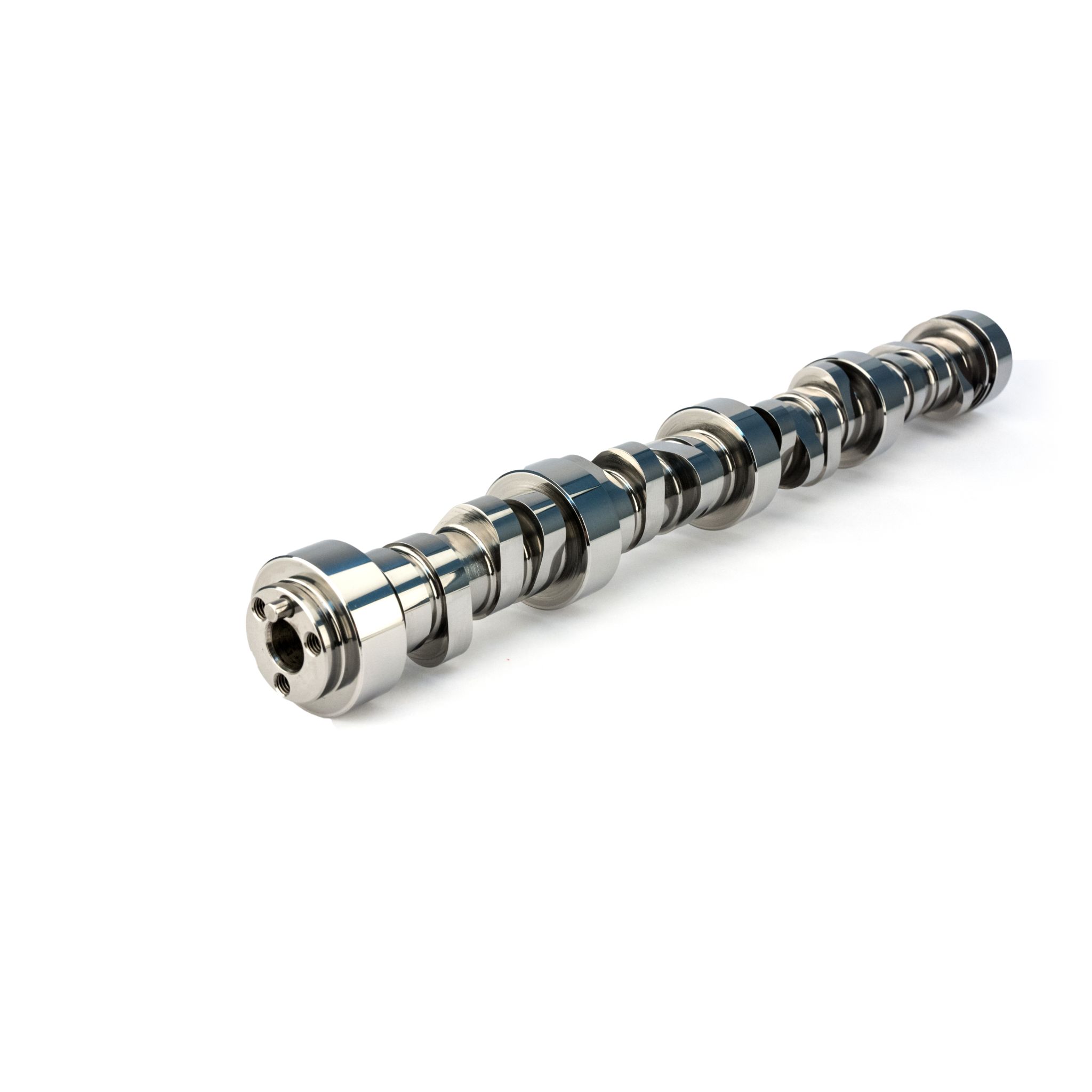

LSR Cathedral Port 215/223 Hydraulic Roller Cam for GM LS GEN III/IV

Additional Attributes:

GTIN: 00036584195191
Grind Number: 265Lr HR12
Advertised Exhaust Duration: 273
Advertised Intake Duration: 265
Amazon ASIN: B002EE2EOA
Assembly Lubricant Included: No
Basic Operating RPM Range: 1,300-6,500
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: N/A
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam Type: Hydraulic Roller
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Camshaft Series: LSR Cathedral Port Small Displacement/Max Torque
Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
Exhaust Duration at .050 inch Lift: 223
Exhaust Valve Lift: 0.61
Grind Number: 265Lr HR12
Intake Duration at .050 Inch Lift: 215
Intake Valve Lift: 0.604
Lifter Type: Hydraulic Roller
Lifters Included: No
Lobe Separation: 112
Valve Springs Required: Yes

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Superseded

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24.5 x 3 x 2.75 inches
Weight: 10.16 PG
