LINEAR POTENTIOMETER, CLUB, 100MM/4 in. (E.G. SUSPENSION)

Stack Data Acquisition Series, Linear Potentiometer, Club, 100mm/4" (E.G. Suspension)

Total Electrical Travel: 100 mm (4″)
Maximum Operating Speed: 5m/s
Retracted Mounting Distance: 228 mm (9″)
Anodised Aluminium Housing, IP65 Sealed.
Body Length: 189 mm (7.4″), Body Width: 13 mm (0.5″)
Spherical Bearing Mounting Hole Size: 5 mm (0.197″)
Pre-terminated cable with Mini Sure Seal Connector. Length: 1,000 mm (39″)
Linearity: +/- 0.1%
Life: Greater than 25 million cycles
Operating Temperature: -30 to +100 Degrees C (-22 to 212 Degrees F)

SKU DDWN-ST270073 Category Multi-Purpose Sensor

Le prix initial était : $ 548.50.Le prix actuel est : $ 444.07.

Stack Clubman Linear Potentiometers provide excellent value for motorsport monitoring and measurement tasks offering sound repeatability, reliability, linearity and environmental performance. Featuring IP65 sealing, equipped with self-aligning spherical bearings, and available in stroke lengths from 50-200 mm (2-8"), these position sensors are pre-terminated for use with Stack data systems monitoring parameters such as damper (shock) position, pedal inputs, steering angle, aerodynamic surface deflection, and actuator travel.

Additional Attributes:

GTIN: 00046074162275
Add-On: ST884;ST978;ST749;ST979;ST976
Product Type: Sensor

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 0.5 x 10 x 4 inches
Weight: 0.5 PG

Information complémentaire

Poids	0.23 kg
Dimensions	0.5 × 10 × 4 cm

LINEAR POTENTIOMETER, CLUB, 100MM/4 in. (E.G. SUSPENSION)

Additional Attributes:

Extended Information:

Packaging:

Information complémentaire

Produits similaires

LINEAR POTENTIOMETER, PROFESSIONAL, 150MM/6 in. (E.G. SUSPENSION)

LINEAR POTENTIOMETER, PROFESSIONAL, 200MM/8 in. (E.G. SUSPENSION)

LINEAR POTENTIOMETER, CLUB, 150MM/6 in. (E.G. SUSPENSION)

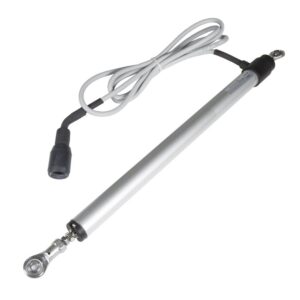

LINEAR POTENTIOMETER, CLUB, 200MM/8 in. (E.G. SUSPENSION)
