JE, Yamaha, 100.0 mm Bore, 1 Cyl. Kit
JE, Yamaha, 100.0 mm Bore, 1 Cyl. Kit
JE, Yamaha, 100.0 mm Bore, 1 Cyl. Kit
JE, Yamaha, 100.0 mm Bore, 1 Cyl. Kit

JE, Yamaha, 100.0 mm Bore, 1 Cyl. Kit

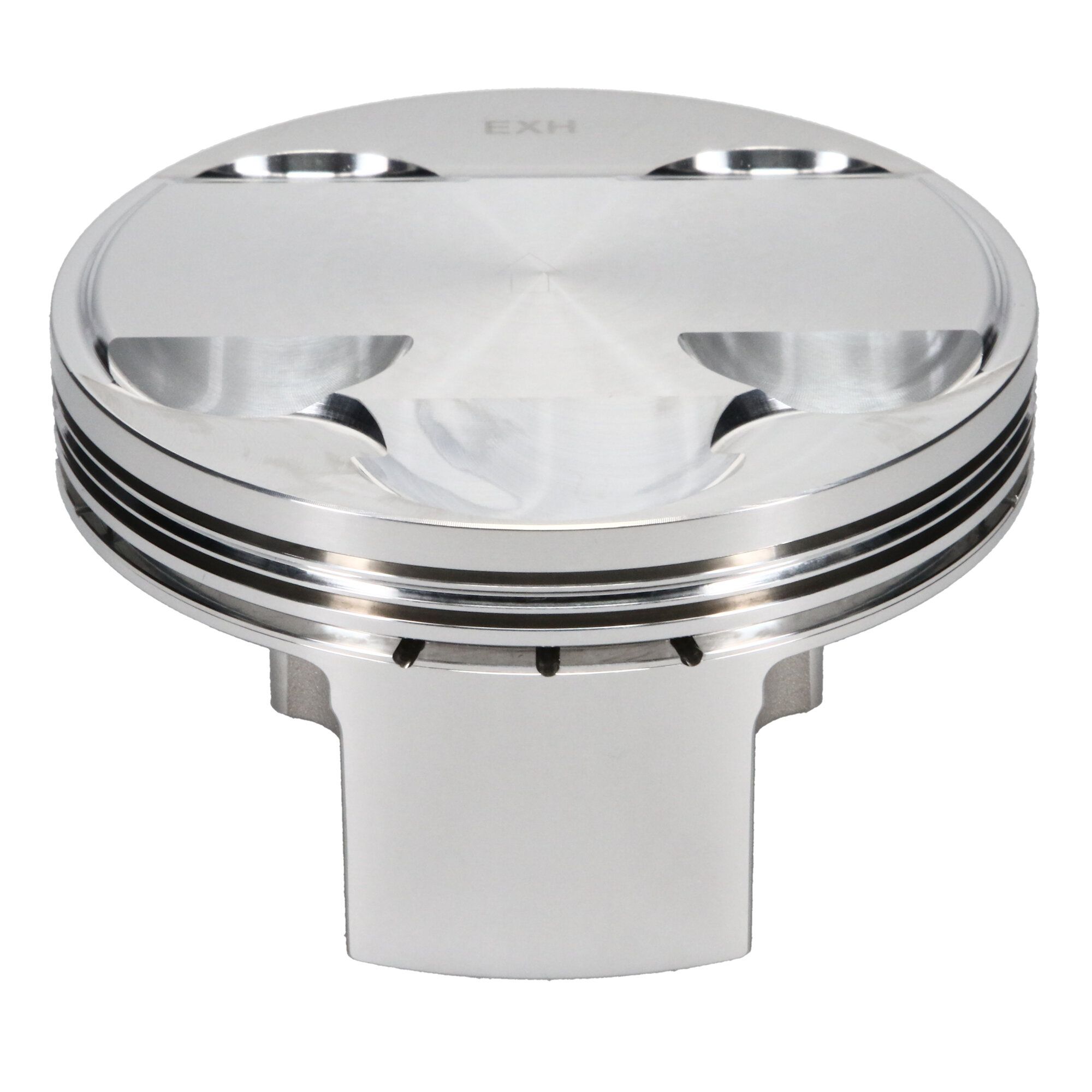

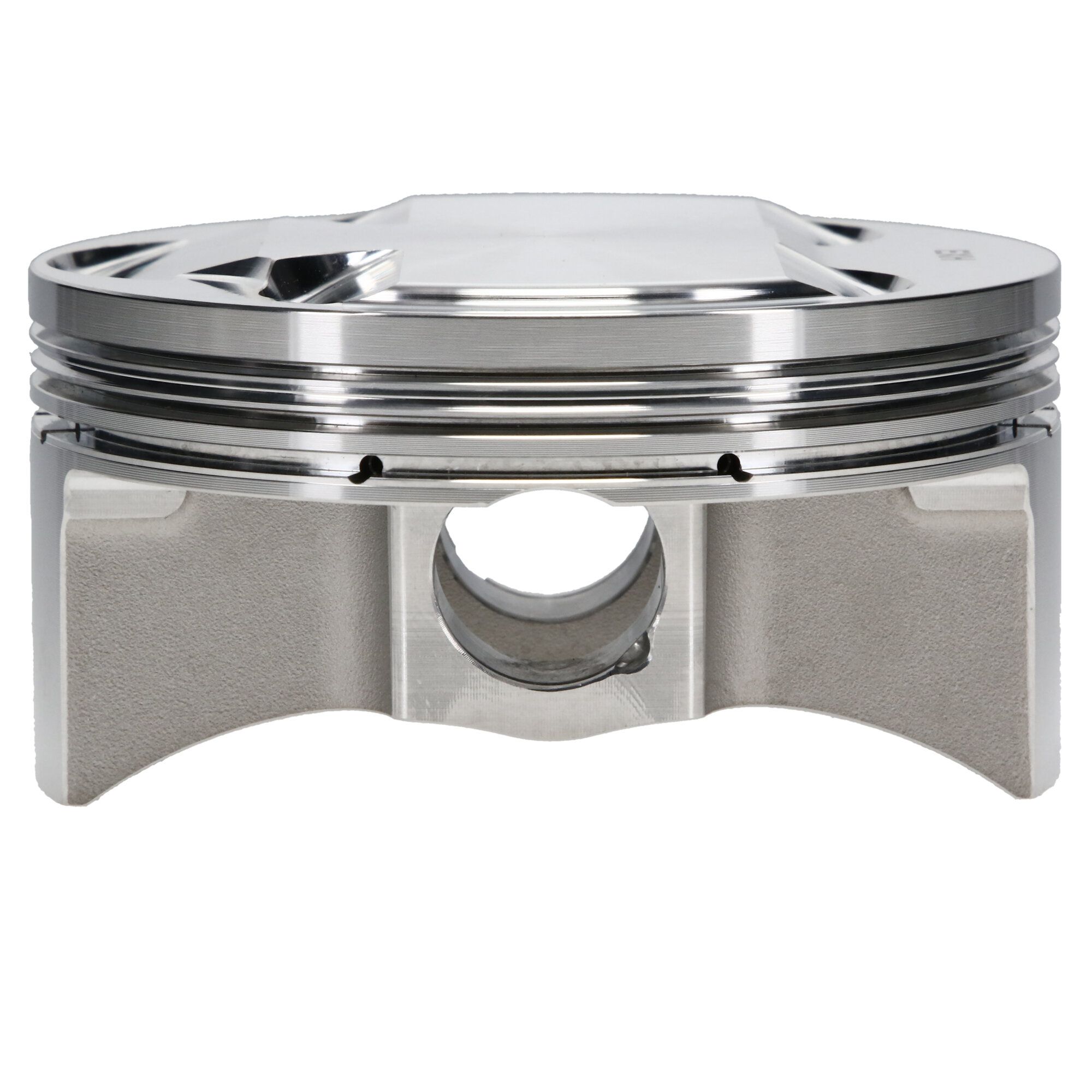

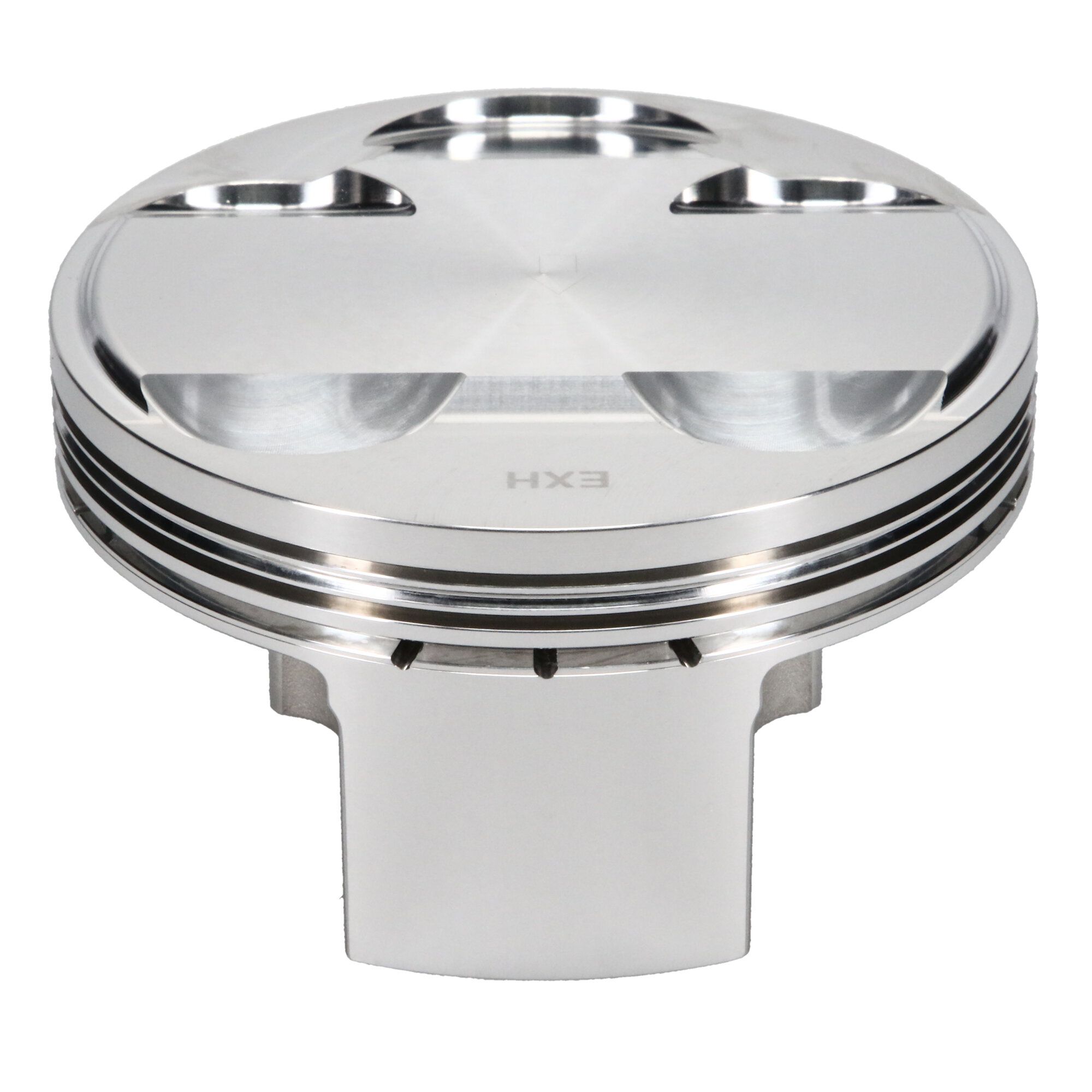

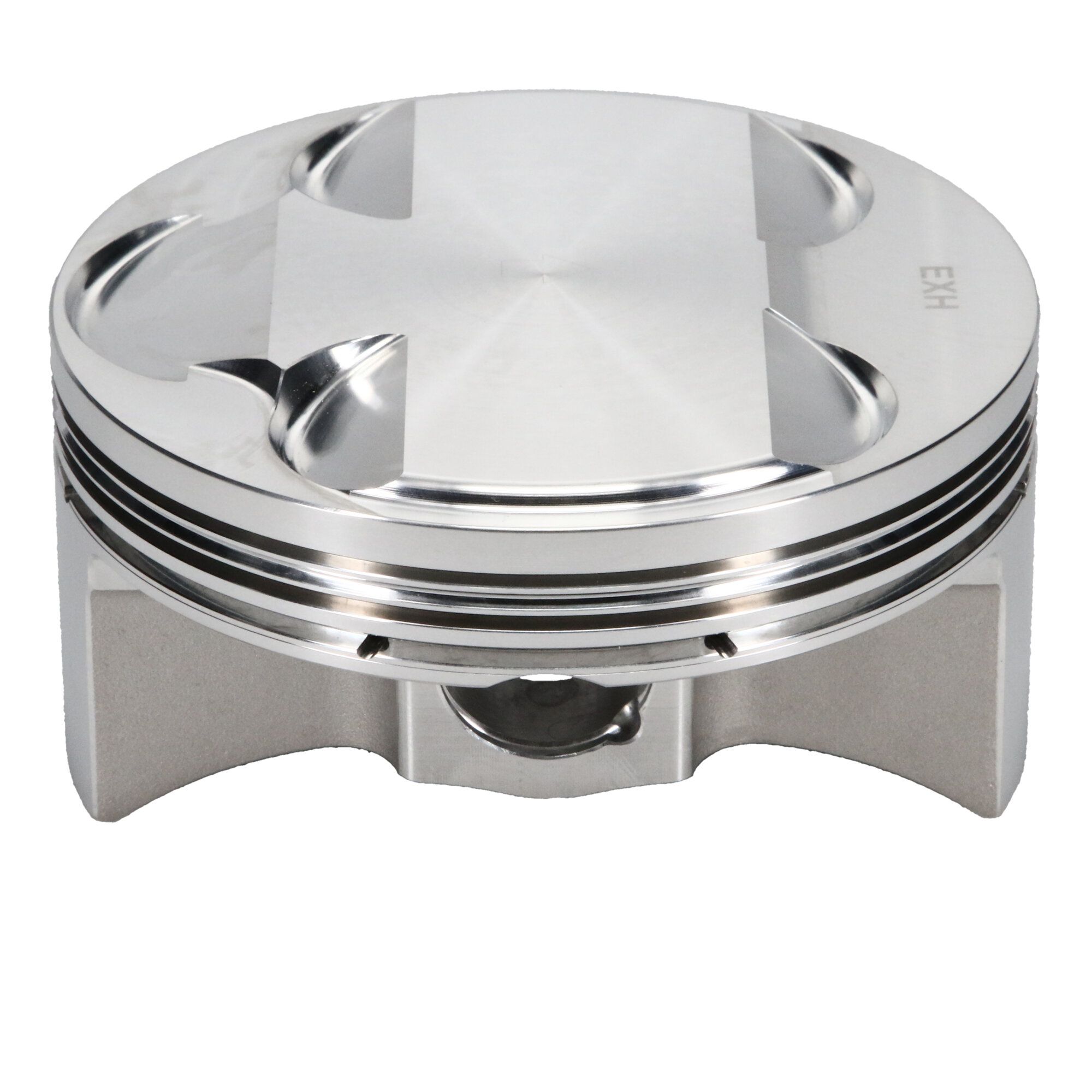

JE, Yamaha, YFM Raptor 660 / Grizzly / Rhino – Pro-Series, 12.00:1, 100.0 mm Bore, 1 Cyl. Piston Kit

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Race-inspired two-ring design promotes quick revving and throttle response for noticeable power
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
SKU BHXG-261526 Category

$ 0.00

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of Pro Series pistons for powersports engines. Engineered, forged and machined 100% in the USA, JE Pro Series ATV pistons are designed for each specific engine and racing application with input from professional-level teams and racers. From motocross to dirt track and everything in between, JE Pistons? Pro Series are the ultimate forged piston choice for ATV competition.

Additional Attributes:

GTIN: 00193564027740
Add-On: JG3701-3937
Bore Diameter – Web: 100.00 MM
Bore Diameter: 100.00
Compression Ratio Actual: 12.00:1
Cylinder Head: 5V 600
EBAY Category ID: 177976
Engine Type: ICE
Forging Type: FSR
Industry: Powersports
Oil Ring Thickness: 0.0795
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Piston Average Weight: 380
Piston Head Type: Dome
Piston Material: 2618
Piston Series: Pro Series
Piston Volume: 23.70
Product Market: ATV
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 – Short Label: Prop 65 Warning Label.JPG
Prop 65 Yes/No: Yes
Ring Set Included: Yes
Second Compression Ring Thickness: 0.0480
Top Compression Ring Thickness: 0.0383
Wrist Pin Length: 2.050
Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter: 0.866
Wrist Pin Wall Thickness: 0.150

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 5 x 5 x 5 inches
Weight: 1.2 PG

Information complémentaire

Poids0.54 kg
Dimensions5 × 5 × 5 cm
