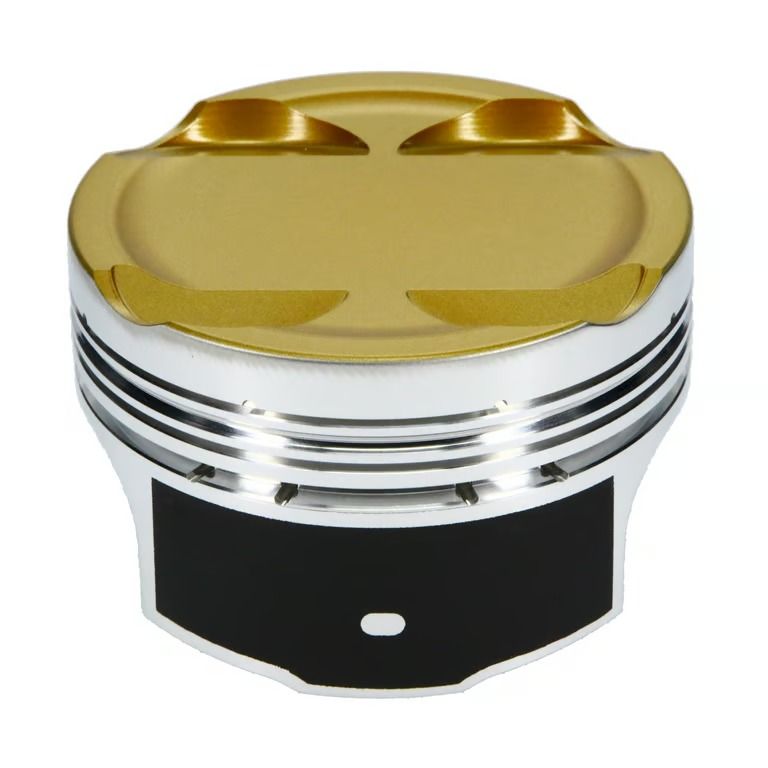

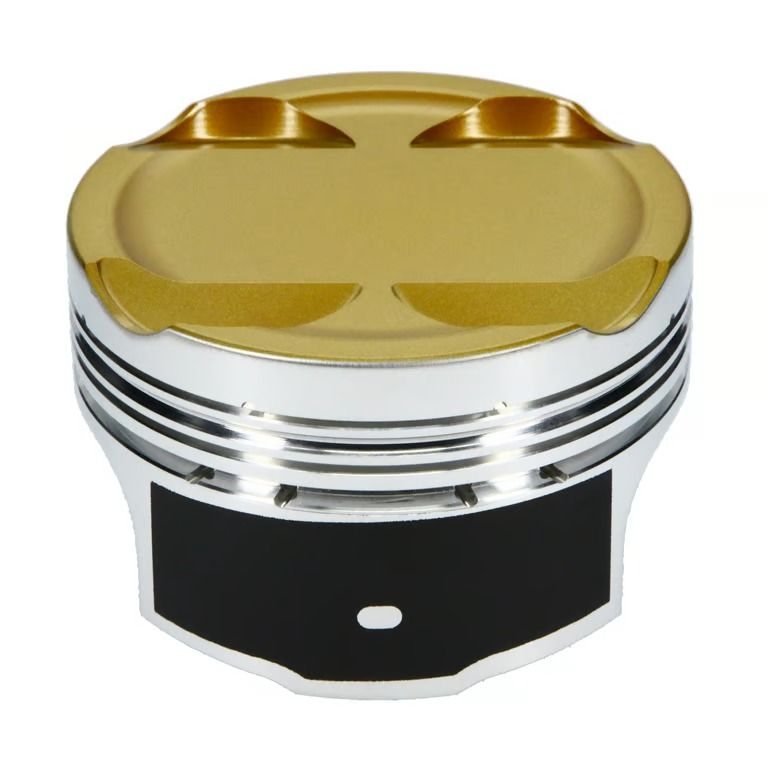

JE Ultra Series Toyota 2JZ-GTE Piston Kit, 86.50 MM Bore, 1.338 in. CH, -4.5 CC, 6 cyl. Piston Kit
JE Ultra Series Toyota 2JZ-GTE Piston Kit, 86.50 MM Bore, 1.338 in. CH, -4.5 CC, 6 cyl. Piston Kit

JE Ultra Series Toyota 2JZ-GTE Piston Kit, 86.50 MM Bore, 1.338 in. CH, -4.5 CC, 6 cyl. Piston Kit

86.50 mm Bore, 1.338 in. (33.985 mm) CD, -4.5 cc, 6 cyl. Piston Kit

  • Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
  • Aligned Grain Flow TeCDnology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
  • Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start
  • Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion CDamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
  • High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
  • Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
  • Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
  • Made 100% in the USA
SKU BHXG-395405 Category

$ 2,415.39

Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging teCDnology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.

Additional Attributes:

GTIN: 00193564563576
Bore Diameter – Web: 86.50 MM / 3.405 IN
Bore Diameter: 86.50
Connecting Rod Length: 142.00
Cylinder Head: 2JZ-GTE
EBAY Category ID: 33623
Engine – Web: 2JZ-GTE
Engine Stroke: 94.00
Engine Type: ICE
Engine: 2JZ-GTE
Forging Type: FSR
Industry: Automotive
Make – Web: Toyota
Make: Toyota
Oil Ring Thickness: 2.80
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Oversized Amount: .50
Oversized: Yes
Piston Average Weight: 380
Piston Head Type: Dome
Piston Material: 2618
Piston Series: JE Ultra
Piston Volume: -4.50
Pro Seal Head Gasket: TY1004-051
Product Market: Sport Compact
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ring Set Included: Yes
Ring Set Part Number: UX1006-3405
Ring Set Thickness: 1.00 MM x 1.20 MM x 2.80 MM
Second Compression Ring Thickness: 1.20
Top Compression Ring Thickness: 1.00
Wrist Pin Included: Yes
Wrist Pin Length: 2.250
Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter: 0.866
Wrist Pin Part Number: 866-2250-23-93C
Wrist Pin Retainer Diameter: 0.866
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Material: Chrome Silicon
Wrist Pin Retainer Part Number: 866-063-MW
Wrist Pin Retainer Style: Wire Lock
Wrist Pin Retainer Thickness: 0.063
Wrist Pin Wall Thickness: 0.230

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 12 x 12 x 6 inches
Weight: 4.5 PG

Information complémentaire

Poids2.04 kg
Dimensions12 × 12 × 6 cm
