JE Pistons - Chrysler, ECB/ECC, 3.464 in. Bore, Piston Kit
JE Pistons - Chrysler, ECB/ECC, 3.464 in. Bore, Piston Kit
JE Pistons - Chrysler, ECB/ECC, 3.464 in. Bore, Piston Kit
JE Pistons - Chrysler, ECB/ECC, 3.464 in. Bore, Piston Kit

JE Pistons – Chrysler, ECB/ECC, 3.464 in. Bore, Piston Kit

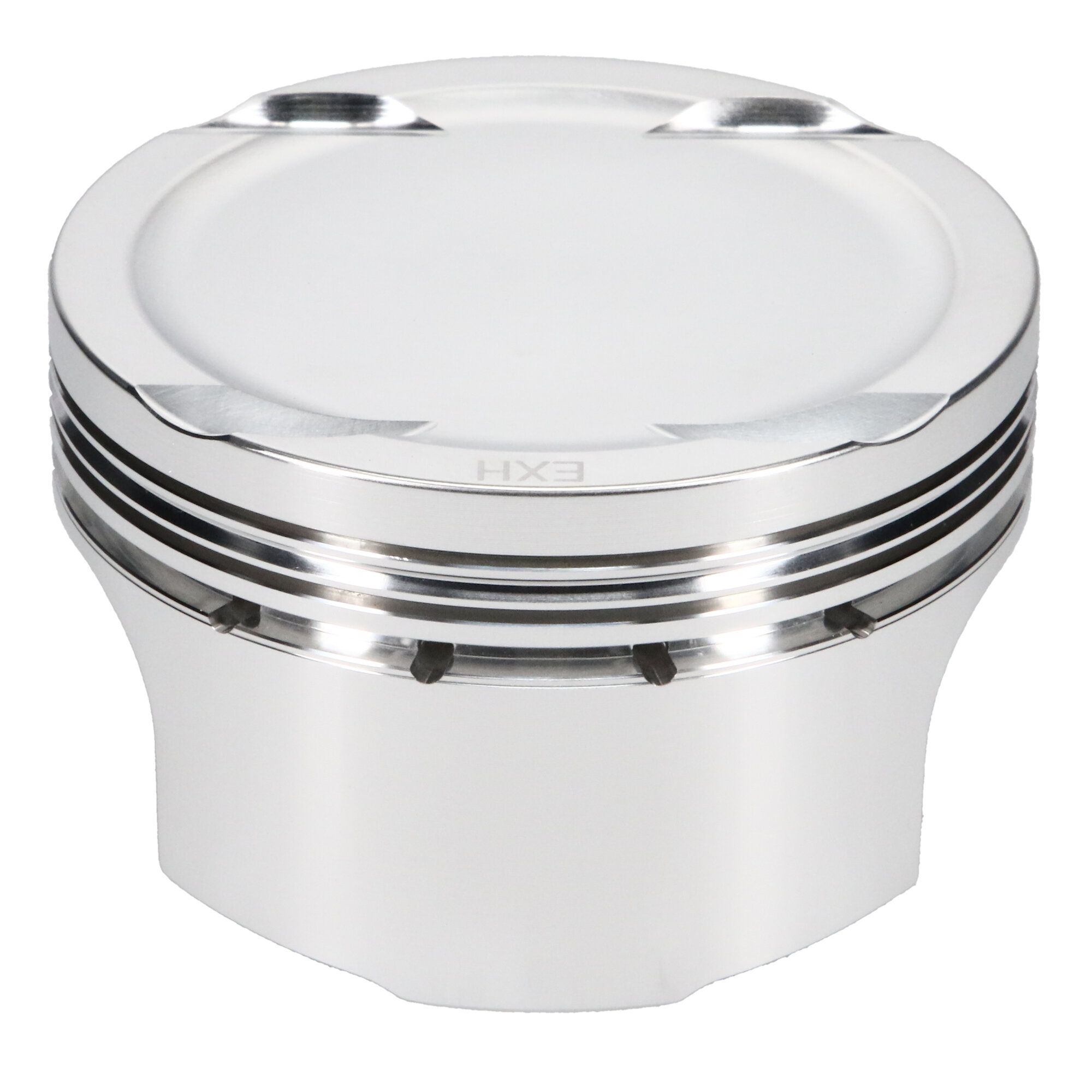

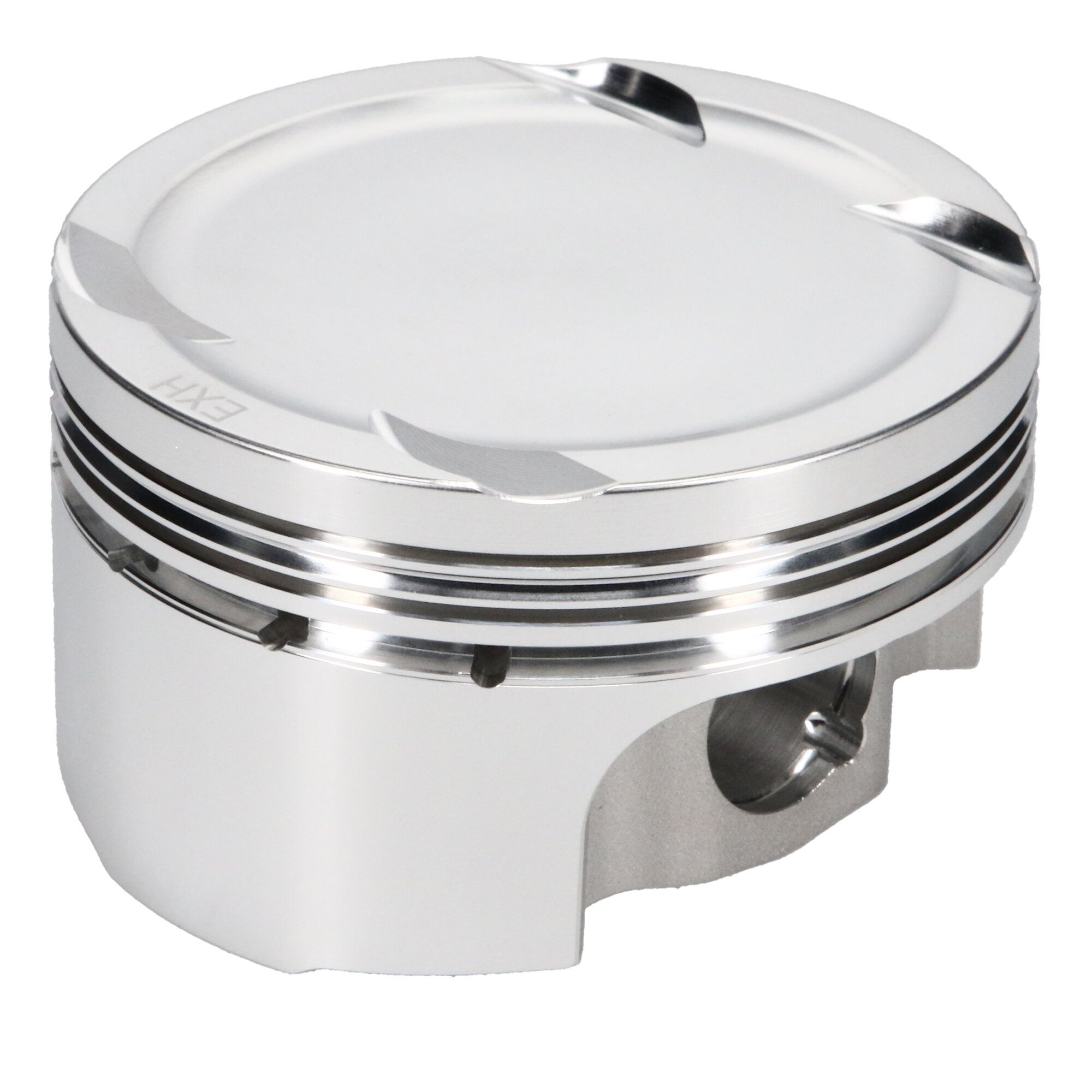

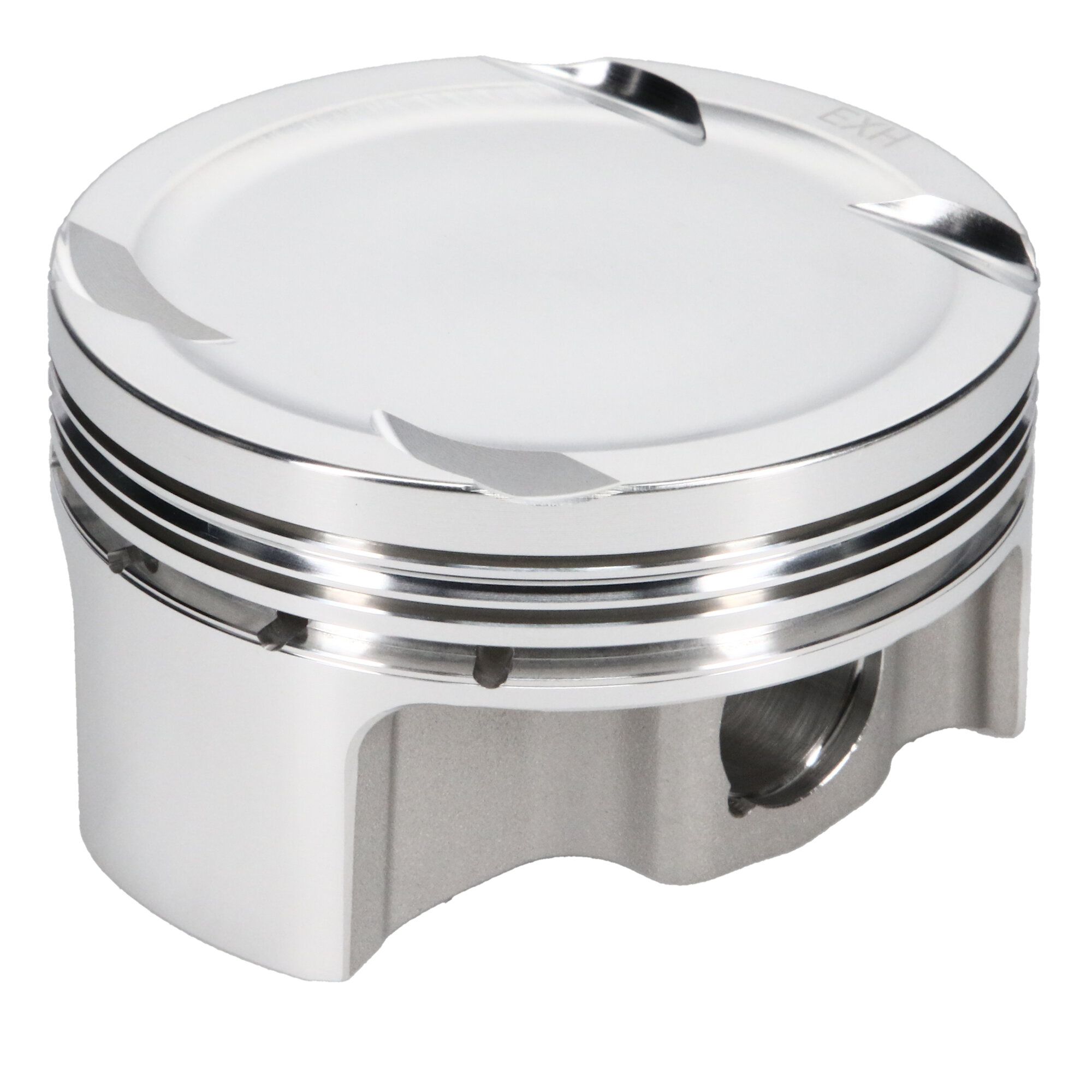

JE, Chrysler, ECB/ECC, 3.464 in. Bore, 1.236 CD, Inverted Dome/Dish, 4 Cyl. Piston Kit

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
SKU BHXG-208476 Category

$ 1,333.86

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Additional Attributes:

GTIN: 00193564214713
Add-On: JC1201-3465
Bore Diameter – Web: 3.464 IN
Bore Diameter: 3.464
Compression Height: 1.236
Cylinder Head: ECB/ECC
EBAY Category ID: 33623
Engine – Web: ECB/ECC
Engine Type: ICE
Engine: ECB/ECC
Forging Type: Round
Industry: Automotive
Make – Web: Chrysler
Make: Chrysler
Oil Ring Thickness: 0.119
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Piston Average Weight: 335
Piston Head Type: Dish
Piston Material: 2618
Piston Quantity: 4
Piston Series: JE Pistons
Piston Volume: -2.60
Product Market: Domestic
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 – Short Label: Prop 65 Warning Label.JPG
Prop 65 Yes/No: Yes
Ring Set Included: Yes
Second Compression Ring Thickness: 0.0480
Top Compression Ring Thickness: 0.0480
Wrist Pin Length: 2.250
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.827
Wrist Pin Wall Thickness: 0.150

Extended Information:

Emissions : 3
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 5 x 9 x 5 inches
Weight: 5.2 PG

Information complémentaire

Poids2.36 kg
Dimensions5 × 9 × 5 cm
