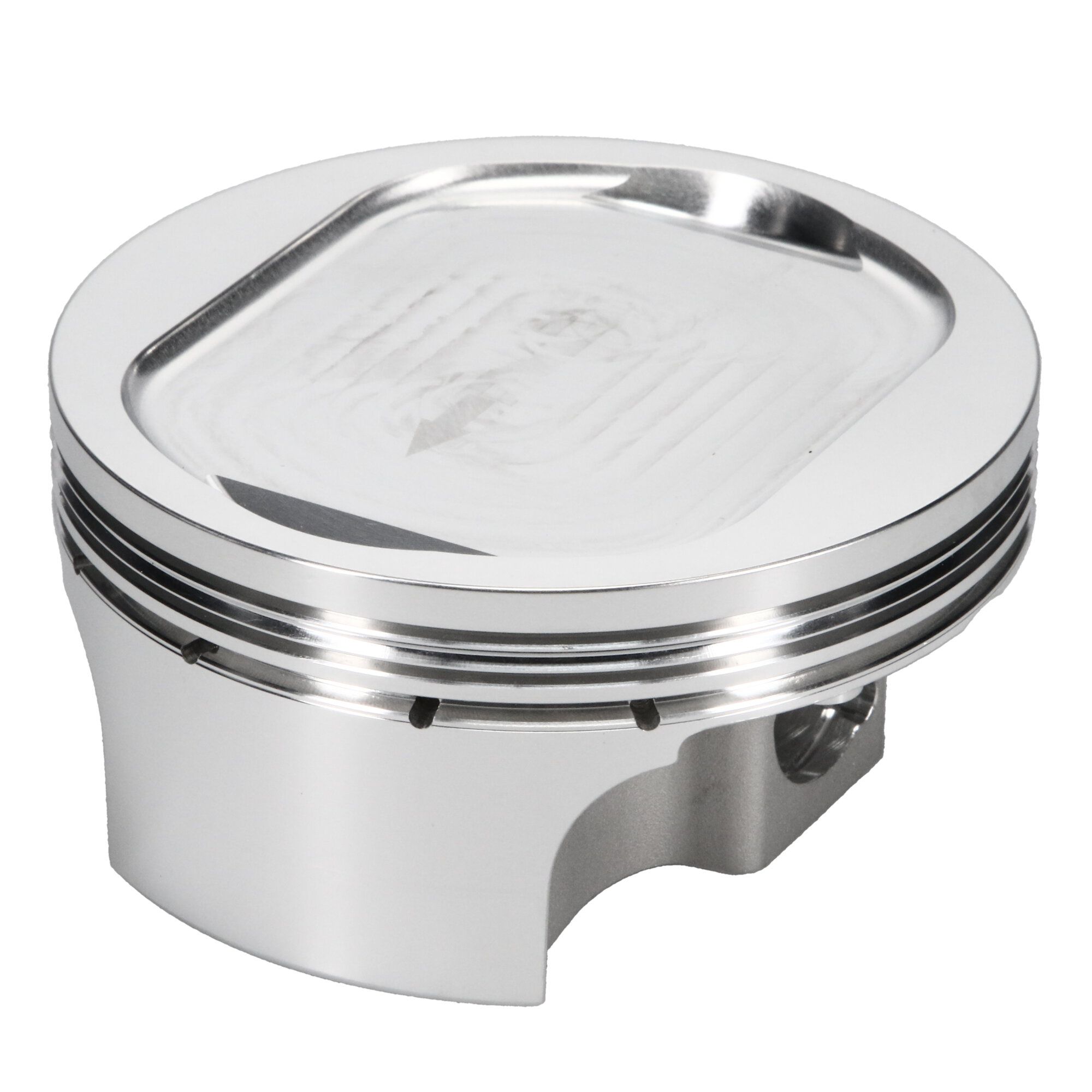

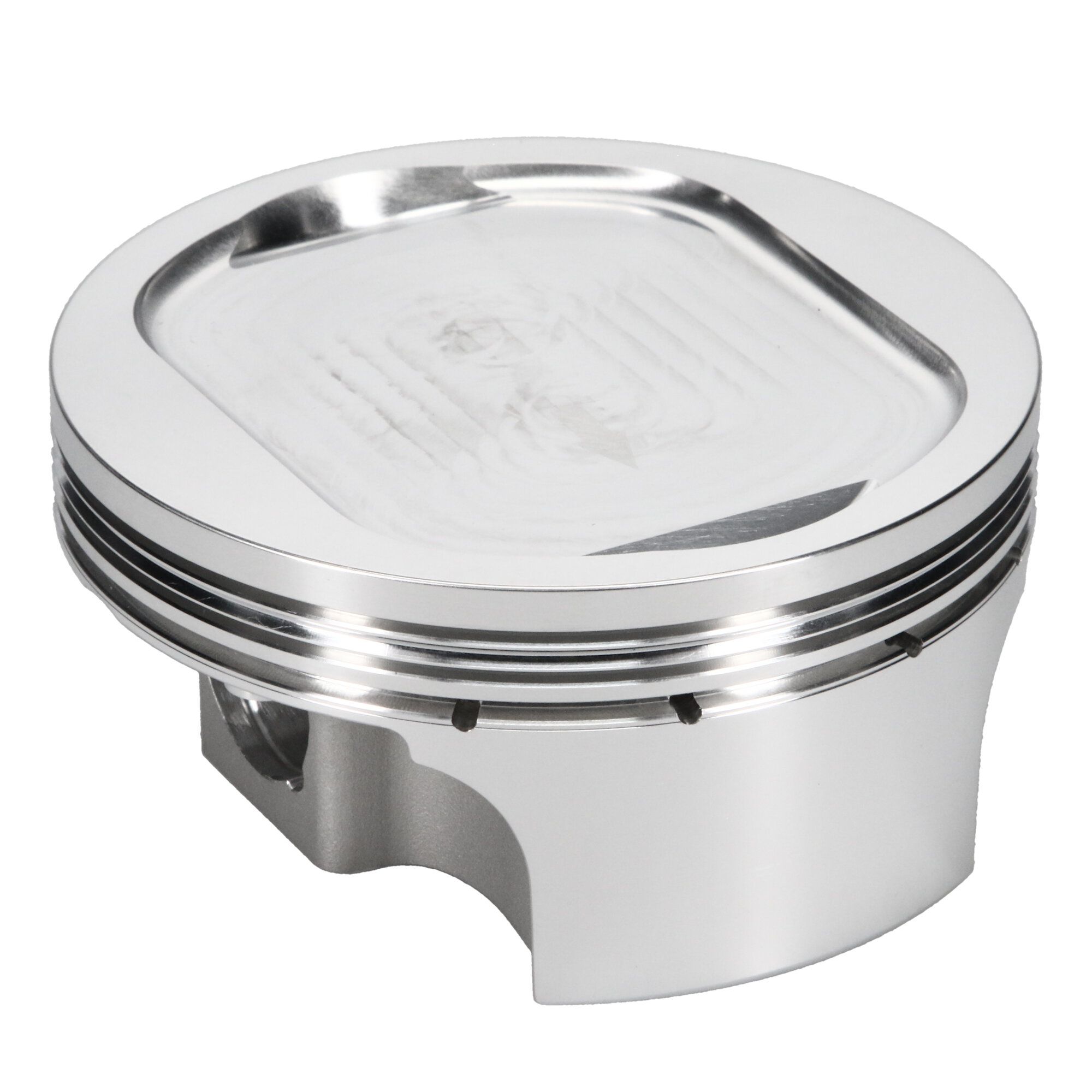

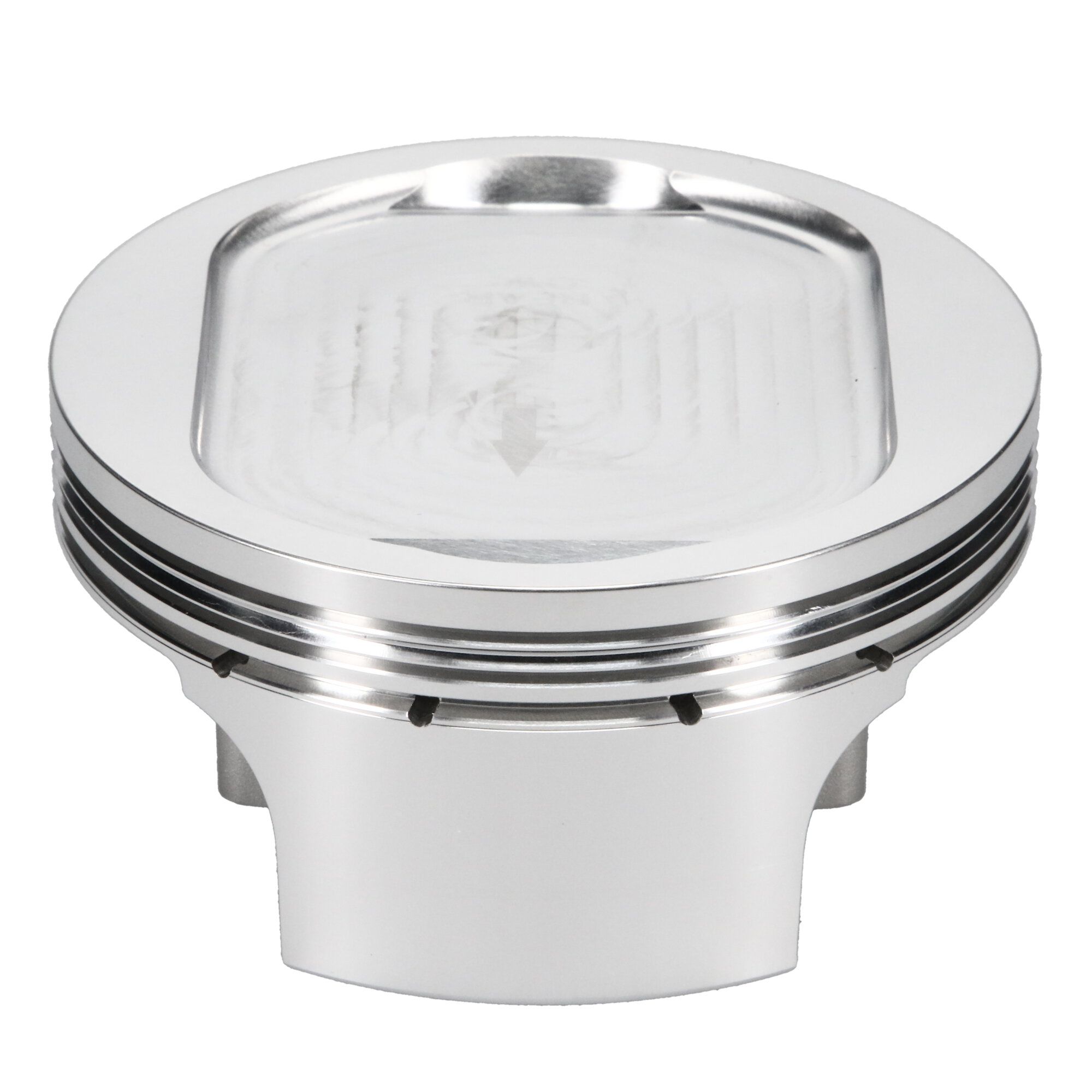

JE, Harley Davidson, 3.885 in. Bore, 2 Cyl. Kit

As the leader in forged racing pistons, JE Pistons has been at the forefront of V-Twin and Harley-Davidson piston performance for decades, with over 75 years of experience. JE?s carefully developed line of V-Twin pistons is engineered, forged and machined 100% in the USA and are designed for each specific engine and use application to provide the ultimate combination of durability and performance. From fun and powerful cruisers to all-out V-Twin drag racing, JE Pistons? performance is proven with every handful of throttle. Equip your bike with the best in forged pistons.

Additional Attributes:

GTIN: 00193564026712
Add-On: VM3885
Bore Diameter – Web: 98.68 MM
Bore Diameter: 98.68
Compression Ratio Actual: 9.00:1
Cylinder Head: 1999-2006 TWIN CAM
EBAY Category ID: 177976
Engine Type: ICE
Forging Type: FSR
Industry: Powersports
Oil Ring Thickness: 0.0795
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Piston Average Weight: 349
Piston Head Type: Dish
Piston Material: 2618
Piston Series: JE Pistons
Piston Volume: -13.80
Product Market: V-Twin
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 – Short Label: Prop 65 Warning Label.JPG
Prop 65 Yes/No: Yes
Ring Set Included: Yes
Second Compression Ring Thickness: 0.0478
Top Compression Ring Thickness: 0.0478
Wrist Pin Length: 2.250
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.927
Wrist Pin Wall Thickness: 0.150

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 5 x 5 x 5 inches
Weight: 2.6 PG
