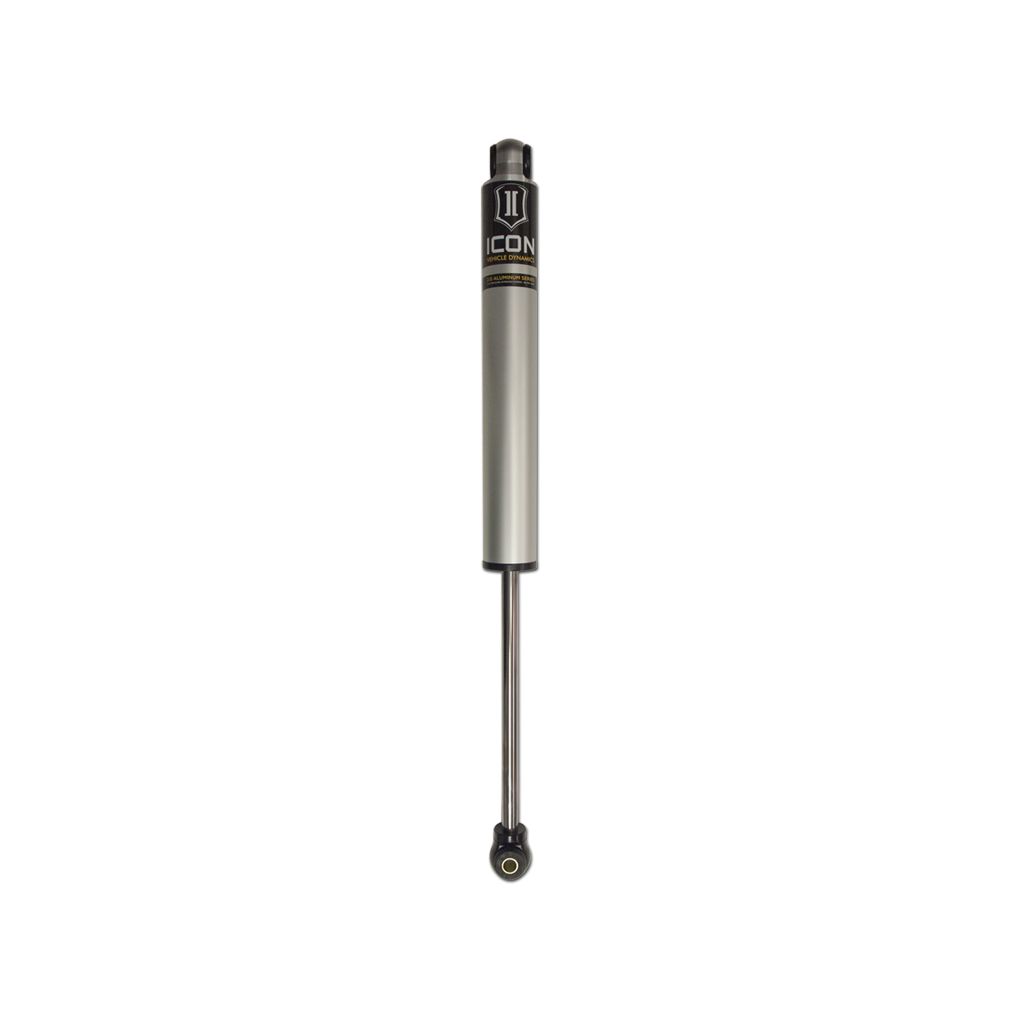

ICON Universal 2.0 Aluminum Series Front Shock, 9.5” Travel

ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.

Additional Attributes:

GTIN: 00840103400310
Compressed Length: 13.55
Travel Length: 9.45
Body Color: Gray
Finish: Anodized
Cylinder Material: Aluminum
Mounting Hardware Included: No
Grade Type: Performance
Extended Length: 23
Shock Stroke: 9.45
Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Shock Absorber Body End Measuring Point: CENTER OF EYELET
Lower Mount Type: Eyelet
Upper Mount Type: EYELET
Boot Included: No
Gas Charged: Yes
Body Diameter: 2
Dust Shield Included: No
Hydraulic Lockout: No
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 614700 – 2.0 SHOCK BOOT KIT (EACH)
Adjustable: No
Adjustable Damping: Yes
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: No
Damping Type: Oil
Dust Shield: No
Mounting Width: 1.5″ x 1/2″ Bolt (Upper&Lower)
Remote Reservoir: NO
Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 40.0000 x 3.0000 x 3.0000 inches
Weight: 4.0000 PG
