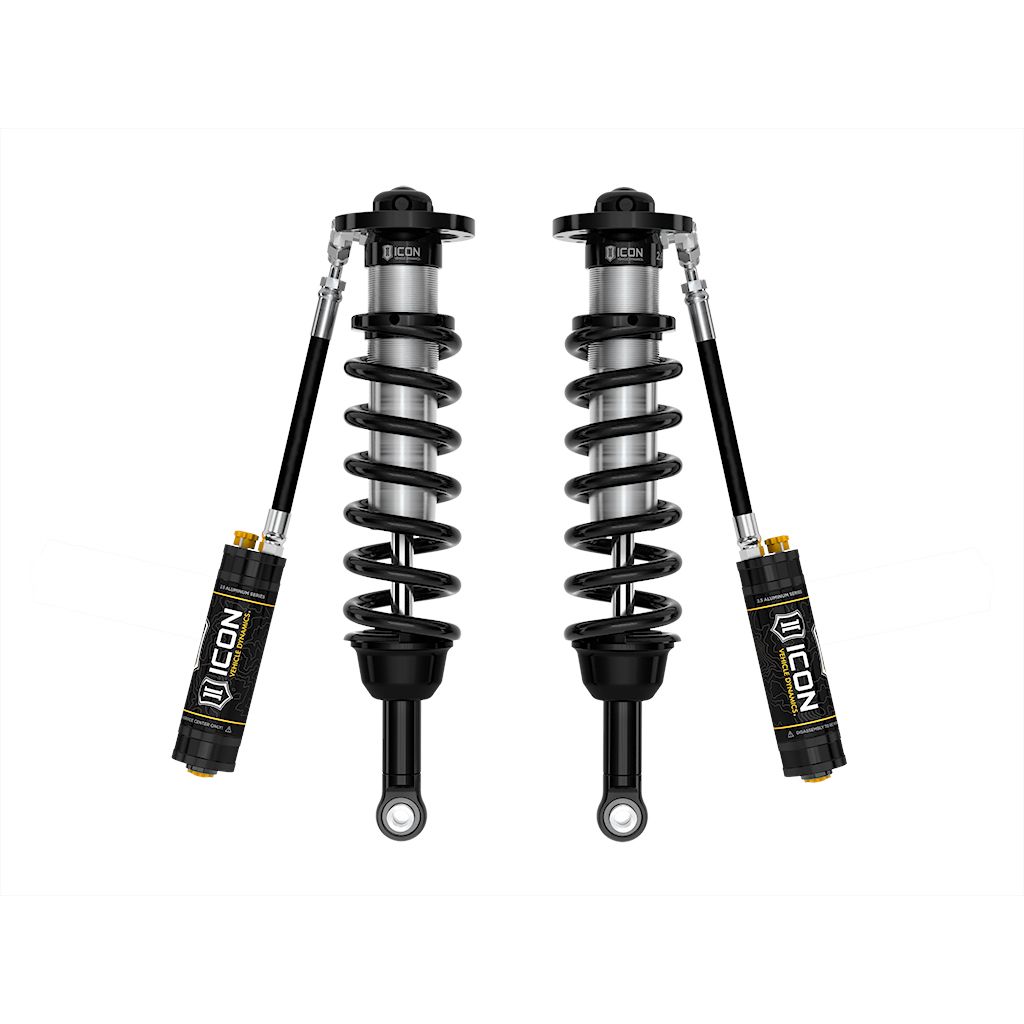

ICON 2025 Toyota 4Runner 4WD, 1.25-3″ Lift, Front, 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDCV front coilover shocks are an incredible upgrade for the front end of the 2025 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with 2.5 Aluminum Series CDCV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

Additional Attributes:

GTIN: 00840103435176
Valving Type: Digressive
Adjustable Compression: Yes
Self-Leveling: No
Active or Passive Suspension: Passive
Spring Material: Steel
Cylinder Material: Steel
Adjustable Height: Yes
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Center of Eyelet
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: Eyelet
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: Yes
Cylinder Color: Silver
Body Diameter: 2.5
Adjustable Damping: Yes
Adjustable Rebound: No
Dust Shield Included: No
Remote Reservoir: Yes
Add-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Cylinder Finish: Cadmium Plated
Damping Adjustment Type: Manual
Damping Type: Oil
Dust Shield: No
Material: Aluminum
Maximum Lift: 3
Minimum Lift: 1.25
OEM Wheels & Tires Fitment: Yes
Reservoir Style: Remote
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Linear

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 31.0000 x 13.0000 x 7.0000 inches
Weight: 58.0000 PG

PDF:

I58795C_REVA
