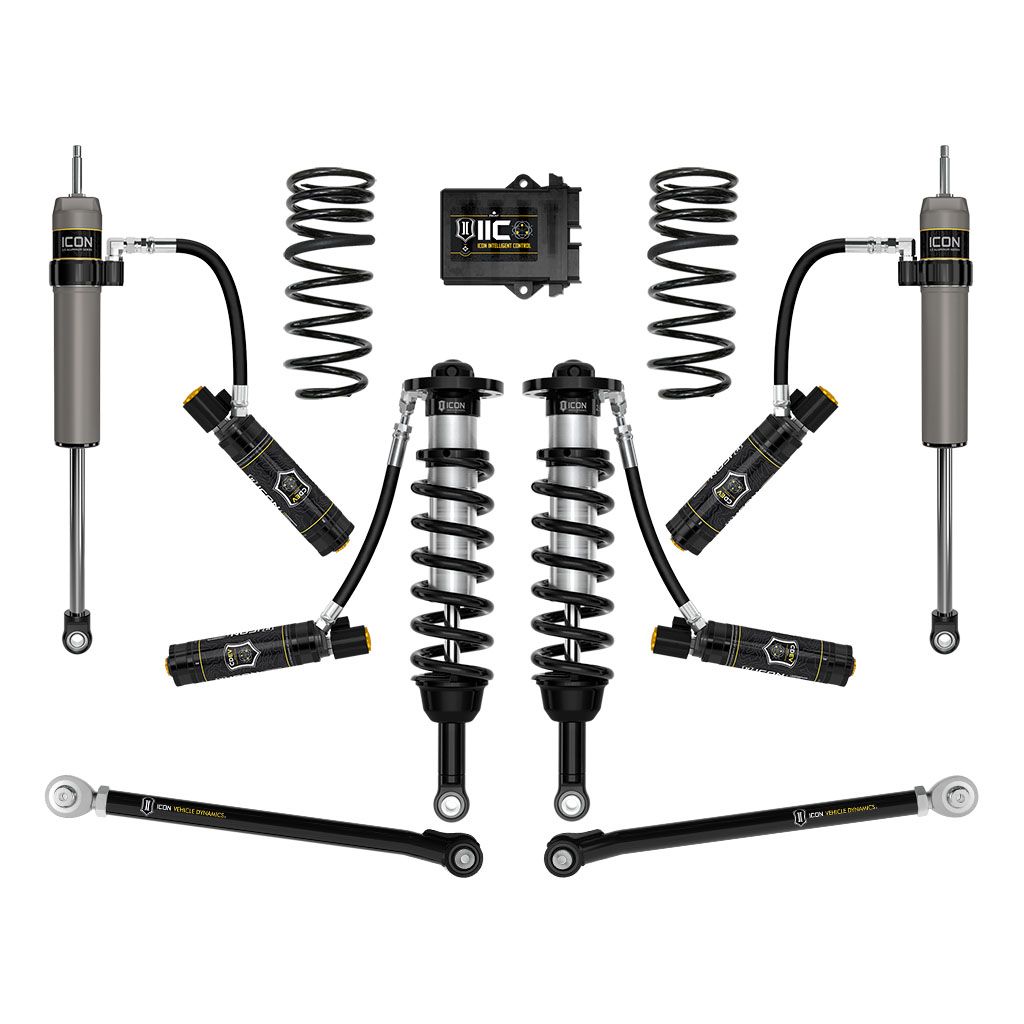

The ICON Stage 9 suspension system for the Sequoia TRD Pro is a full coilover performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires.
Le prix initial était : $ 10,509.60.$ 10,009.14Le prix actuel est : $ 10,009.14.
Rounding out the Stage 9 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2025 Toyota Sequoia. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series CDEV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
GTIN: 00840103432557
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 2.5
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Electronic
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Maximum Lift Front: 2.5
Maximum Lift Rear: 2
Minimum Lift Front: 1
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 2.5
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
Reservoir Style: Remote
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Quantity of Each: 1.0
Package UOM: EA
Dimension: 27.0000 x 12.0000 x 8.0000 inches
Weight: 166.0000 PG
| Poids | 75.3 kg |
|---|---|
| Dimensions | 27.0000 × 12.0000 × 8.0000 cm |
I58772E_REVA
