ICON 2023-2025 Toyota Sequoia, 3-4.5" Lift, Stage 6 Suspension System, Billet, TRD
ICON 2023-2025 Toyota Sequoia, 3-4.5" Lift, Stage 6 Suspension System, Billet, TRD

ICON 2023-2025 Toyota Sequoia, 3-4.5″ Lift, Stage 6 Suspension System, Billet, TRD

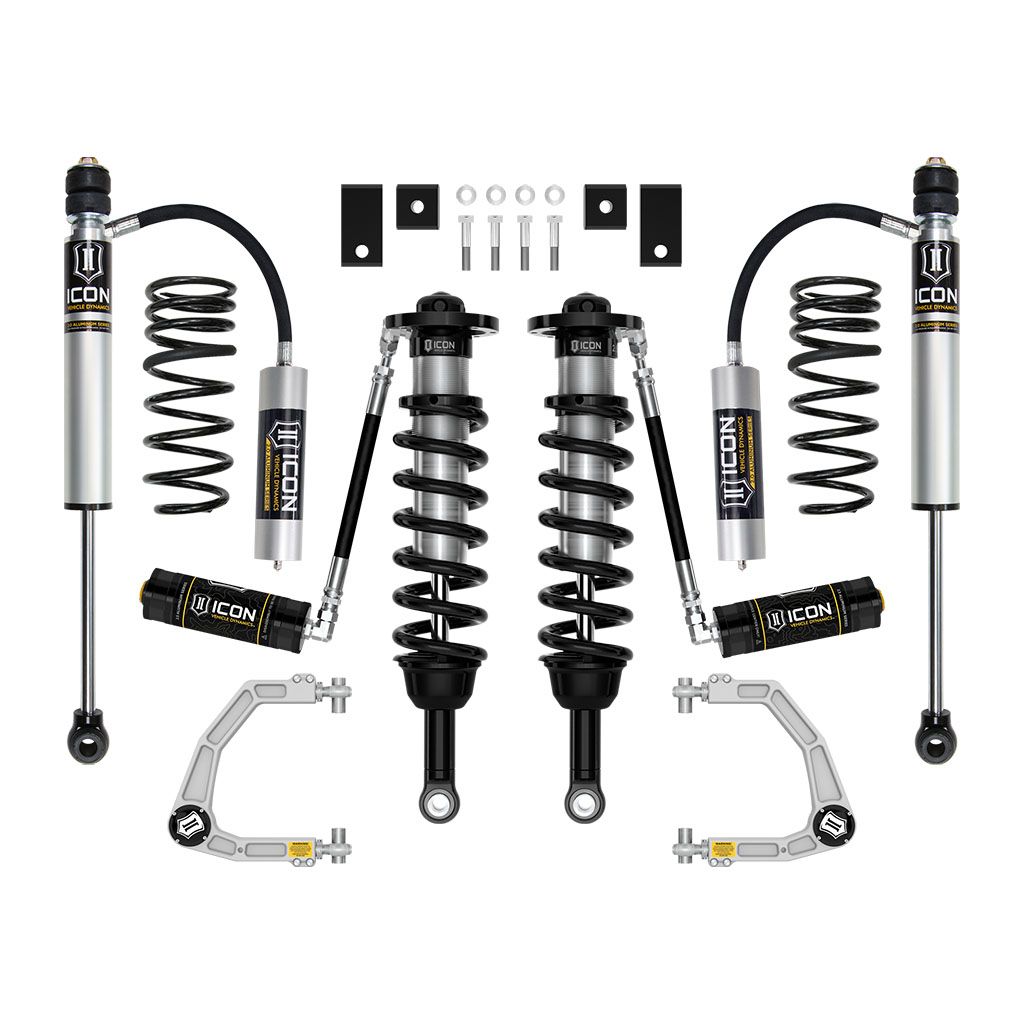

Stage 6 includes 2.5 Series remote reservoir coilovers for 3-4.5” of front lift, greater performance, and 35” tire fitment. Billet UCAs provide alignment correction and rear coils with 2.0 Series rear shocks balance the tuning.

  • Vehicle specific design for 2023-2025 Toyota Sequoia
  • All ICON shock absorbers are fully rebuildable and re-tunable
  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • Adjustable front ride heights from 3-4.5” of front lift over stock
  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for full wheel travel without overstressing OE components
  • Dual rate rear coil springs improve performance and ride quality while providing 2″ or 4″ of rear lift, depending on the vehicle’s stock suspension package
  • 2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
SKU FRDK-K53236S Category

Le prix initial était : $ 6,981.24.Le prix actuel est : $ 6,648.80.

Rounding out the Stage 6 suspension system are V.S. 2.0 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2025 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

Additional Attributes:

GTIN: 00840103432229
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 4.5
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Compression: No
Adjustable Control Arm: Yes
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Maximum Lift Front: 4.5
Maximum Lift Rear: 4
Minimum Lift Front: 3
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 2
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
Reservoir Style: Remote

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 27.0000 x 12.0000 x 8.0000 inches
Weight: 149.0000 PG

PDF:

Information complémentaire

Poids67.59 kg
Dimensions27.0000 × 12.0000 × 8.0000 cm
