ICON 2023-2025 Toyota Sequoia, 3-4.5" Lift, Stage 10 Suspension System, Tubular, CDCV, TRD
ICON 2023-2025 Toyota Sequoia, 3-4.5" Lift, Stage 10 Suspension System, Tubular, CDCV, TRD

ICON 2023-2025 Toyota Sequoia, 3-4.5″ Lift, Stage 10 Suspension System, Tubular, CDCV, TRD

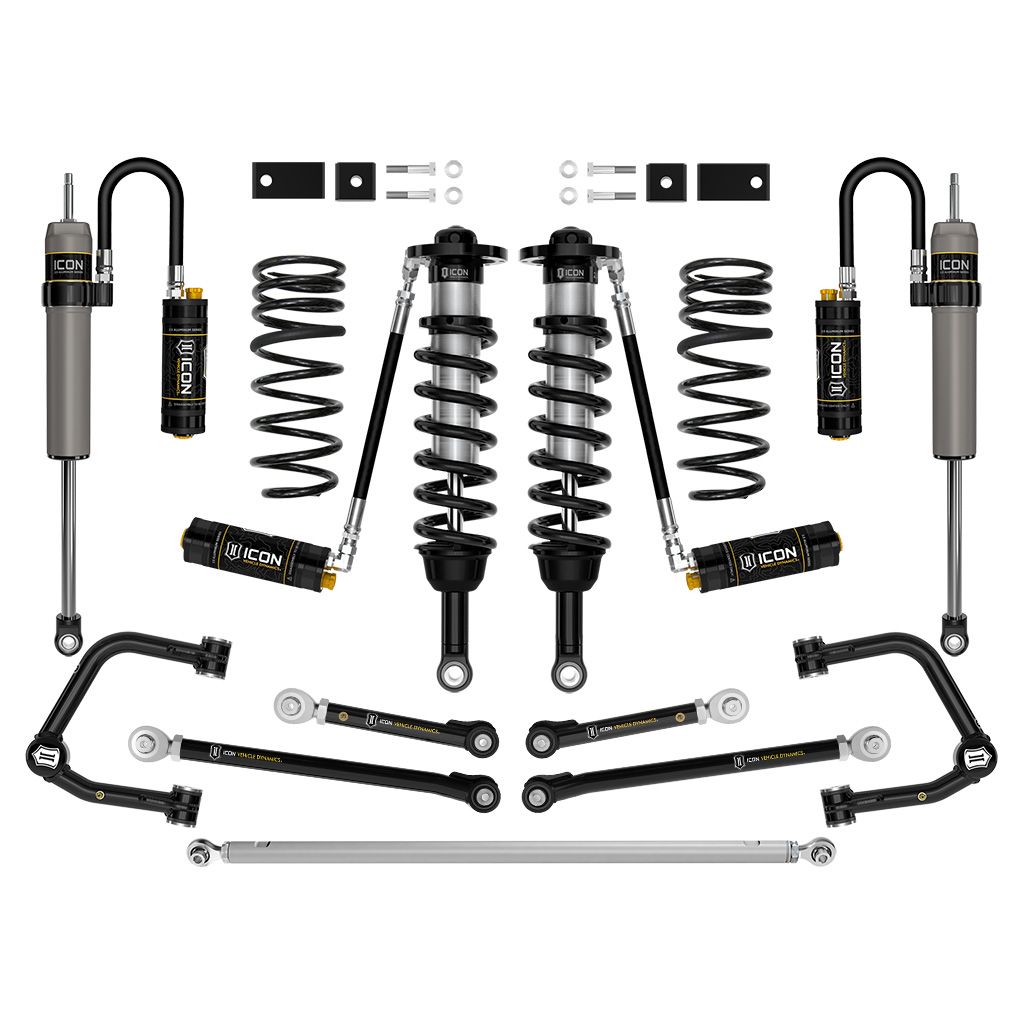

Stage 10 includes 2.5 Series CDCV coilovers for 3-4.5” of front lift, greater performance, and 35” tire fitment. UCAs, rear links and track bar provide alignment correction and rear coils with 2.5 Series CDCV rear shocks balance the tuning.

  • Vehicle specific design for 2023-2025 Toyota Sequoia
  • Dual rate rear coil springs improve performance and ride quality while providing 2″ or 4″ of rear lift, depending on the vehicle’s stock suspension package
  • On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
  • 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
  • All ICON shock absorbers are fully rebuildable and re-tunable
  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • Adjustable front ride heights from 3-4.5” of front lift over stock
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for full wheel travel without overstressing OE components
  • Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
SKU FRDK-K53240TS Category

Le prix initial était : $ 10,991.96.Le prix actuel est : $ 10,468.55.

Rounding out the Stage 10 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2025 Toyota Sequoia. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

Additional Attributes:

GTIN: 00840103432311
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 4.5
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Manual
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Maximum Lift Front: 4.5
Maximum Lift Rear: 4
Minimum Lift Front: 3
Minimum Lift Rear: 2
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 2.5
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
Reservoir Style: Remote

Extended Information:

Emissions : 4
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 27.0000 x 12.0000 x 8.0000 inches
Weight: 209.0000 PG

PDF:

Information complémentaire

Poids94.8 kg
Dimensions27.0000 × 12.0000 × 8.0000 cm
