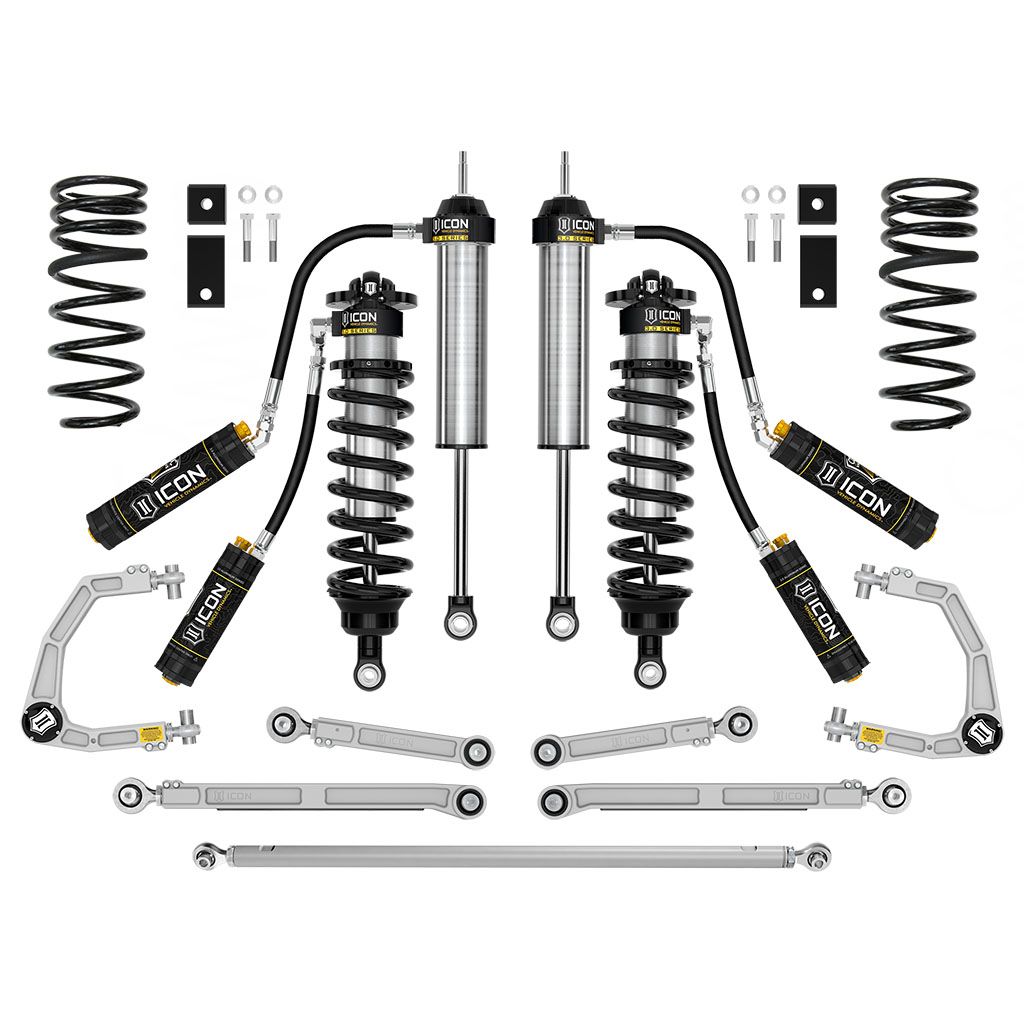

ICON 2023-2025 Toyota Sequoia, 3-4.25″ Lift, Stage 2 (TRD), 3.0 Suspension System, Billet, CDCV

Stage 2 includes 3.0 Series CDCV coilovers for 3-4.25” of front lift, greater performance, and 35” tire fitment. UCAs, rear links and track bar provide alignment correction and rear coils with 3.0 Series CDCV rear shocks balance the tuning.

Vehicle specific design for 2023-2025 Toyota Sequoia
Dual rate rear coil springs improve performance and ride quality while providing 2″ or 4″ of rear lift, depending on the vehicle’s stock suspension package
On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
3.0 Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable
3.0 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Adjustable front ride heights from 3-4.25” of front lift over stock
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for full wheel travel without overstressing OE components
Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment

SKU FRDK-K53252S Category Suspension Lift Kit

Le prix initial était : $ 16,323.89.Le prix actuel est : $ 15,546.58.

Rounding out the Stage 2 suspension system are 3.0 Series rear remote reservoir shocks specially tailored for the 2023-2025 Sequoia. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks, offering outstanding performance off-road and a smooth ride on the street. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks, plus their remote reservoirs, offer even greater heat dissipation and resistance to shock fade under hard use. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

Additional Attributes:

GTIN: 00840103432373
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 4.25
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191013 – NIPPLE GREASING ADAPTER KIT
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Manual
Front Reservoir Style: Remote
Front Shock Body Diameter: 3
Maximum Lift Front: 4.25
Maximum Lift Rear: 4
Minimum Lift Front: 3
Minimum Lift Rear: 2
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 3
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
Reservoir Style: Remote

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 33.0000 x 15.0000 x 10.0000 inches
Weight: 234.0000 PG

PDF:

I58775C_REVC

Information complémentaire

Poids	106.14 kg
Dimensions	33.0000 × 15.0000 × 10.0000 cm
