ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, Gas, 2.5″ Lift, Stage 6 Suspension System w/ Radius Arms and Expansion Packs

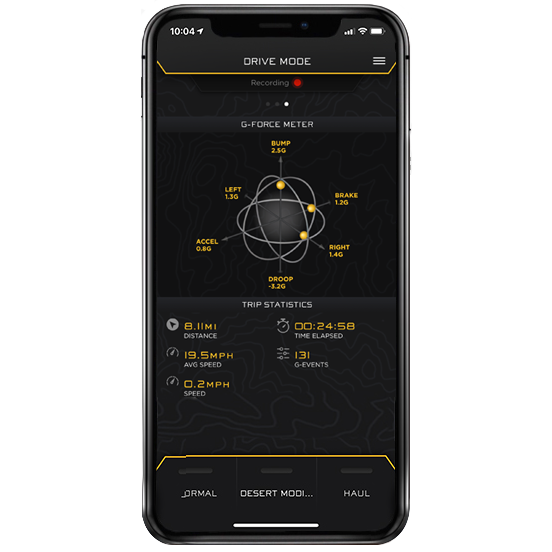

This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 6 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. ICON's Stage 6 System is comprised of dual rate coil springs optimized for trucks equipped with gasoline engines, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, on-vehicle adjustable front track bar, fabricated radius arms, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series CDEV remote reservoir front and CDEV piggyback reservoir rear shocks. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Additional Attributes:

GTIN: 00840103434803
Maximum Lift Height Front: 2.5
Maximum Lift Height Rear: .5
Leaf Spring Material: Steel
Leaf Spring Color: Black
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 2.5
Leaf Spring Leaf Quantity: 7
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCH
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Electronic
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Front Spring Rate Type: Progressive Dual Rate
Maximum Lift Front: 2.5
Maximum Lift Rear: .5
Minimum Lift Front: 1.5
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Piggyback
Rear Shock Body Diameter: 2.5
Recommended Aftermarket Tires: 35″ x 12.50″ (37″ x 12.50″ tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset

Extended Information:

Emissions : 4
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 54.0000 x 48.0000 x 19.0000 inches
Weight: 468.0000 PG

PDF:

I67800EP_REVA
