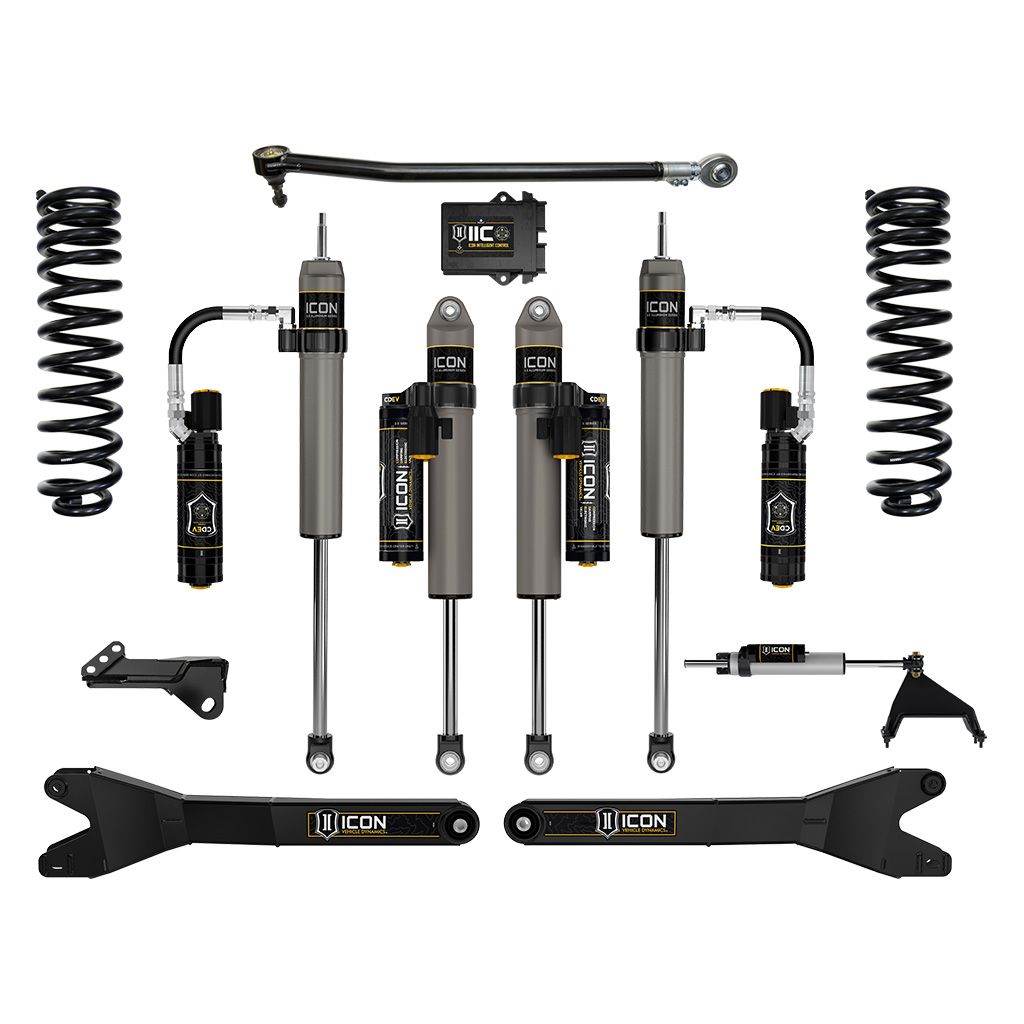

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, Diesel, 2.5" Lift, Stage 6 Suspension System w/ Radius Arms

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, Diesel, 2.5″ Lift, Stage 6 Suspension System w/ Radius Arms

ICON 2.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

Fits 2023-2025 F-250/F-350 4WD diesel applications
Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
Shocks are fully rebuildable and revalvable
Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8″ shafts
FK Rod End bearings provide extended longevity and minimal deflection
Lifetime guarantee against coil spring breakage or sag
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Approximately 25% increased front wheel travel over stock
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
ICON shocks feature vehicle specific tune for superior performance and ride quality
ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

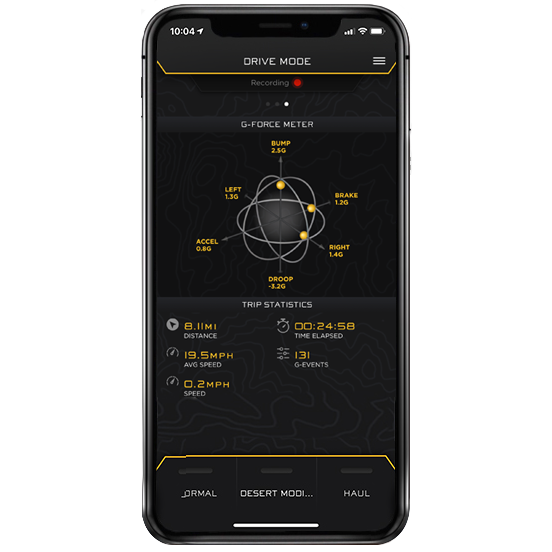

ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
Track bar drop bracket reduces track bar angle and corrects bump steer geometry

SKU FRDK-K65918R Category Suspension Lift Kit

Le prix initial était : $ 13,671.81.Le prix actuel est : $ 13,020.78.

This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 6 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. ICON's Stage 6 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, ICON 2.5" Centerline Steering Stabilizer, on-vehicle adjustable front track bar, bumpsteer correcting track bar bracket, fabricated radius arms, and ICON 2.5 Aluminum Series CDEV remote reservoir front and CDEV piggyback reservoir rear shocks. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Additional Attributes:

GTIN: 00840103434735
Maximum Lift Height Front: 2.5
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 2.5
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCH
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Electronic
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Front Spring Rate Type: Progressive Dual Rate
Maximum Lift Front: 2.5
Minimum Lift Front: 1.5
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Piggyback
Rear Shock Body Diameter: 2.5
Recommended Aftermarket Tires: 35″ x 12.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 40.0000 x 13.0000 x 11.0000 inches
Weight: 275.0000 PG

PDF:

I67800EP_REVA

Information complémentaire

Poids	124.74 kg
Dimensions	40.0000 × 13.0000 × 11.0000 cm
