ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 8 Coilover Conversion System w/ Radius Arms
ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 8 Coilover Conversion System w/ Radius Arms

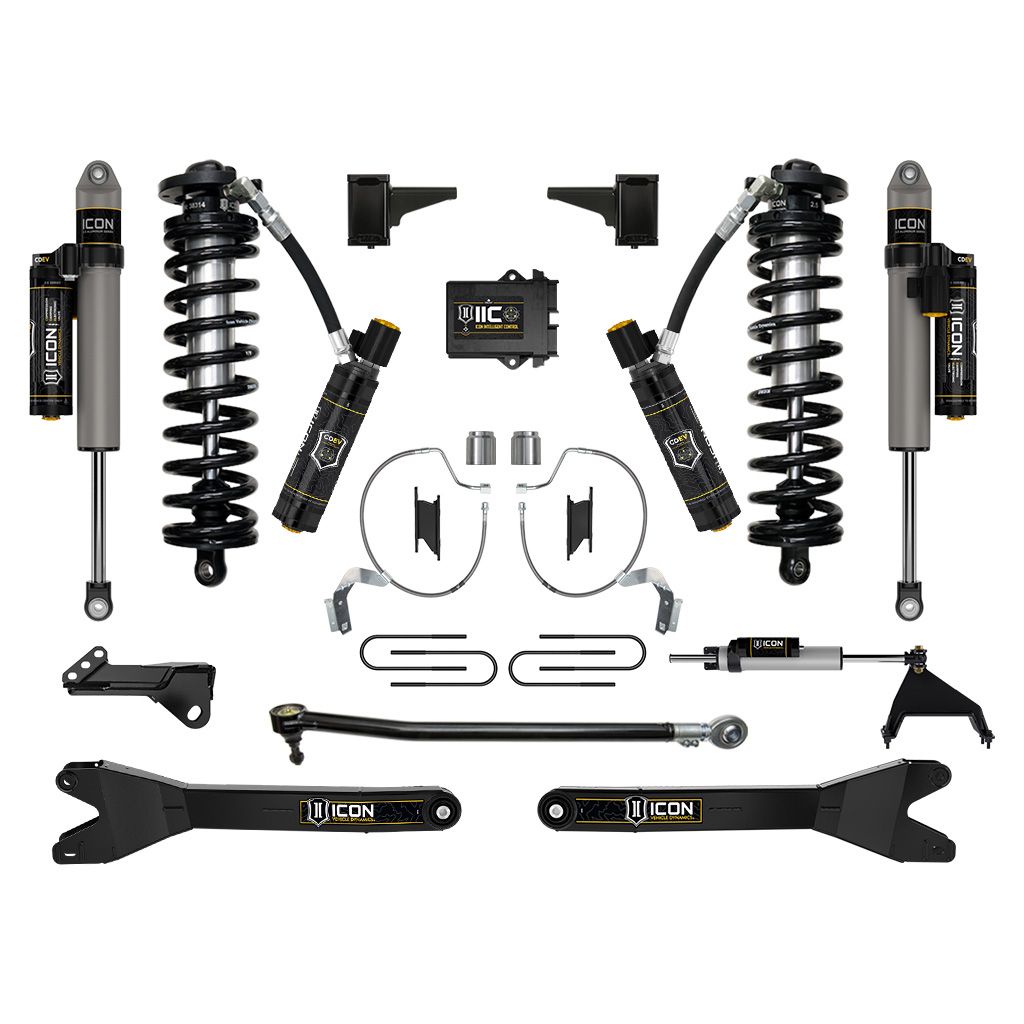

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5″ Lift, Stage 8 Coilover Conversion System w/ Radius Arms

ICON 4.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

  • Fits 2023-2025 F-250 / F-350 4WD applications
  • Track bar drop bracket reduces track bar angle and corrects bump steer geometry
  • Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
  • ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
  • Stainless steel braided front brake lines
  • Heavy-duty fabricated rear lift blocks
  • Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
  • Corrosion resistant hard anodized steering stabilizer and rear shock bodies with 7/8″ shafts
  • Shocks are fully rebuildable and re-tunable
  • Lifetime guarantee against coil spring breakage or sagging
  • Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
  • Bolt-in system fits in OE coil bucket location
  • Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5″ of front lift
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • ICON 2.5 Aluminum Series piggyback reservoir rear shocks
  • ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

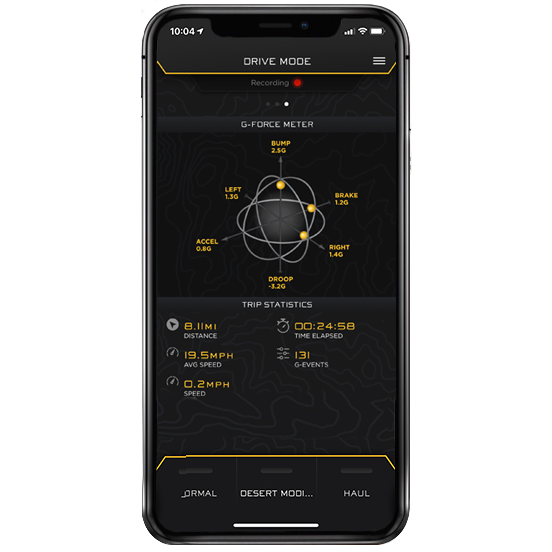

  • ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
  • Increased wheel travel and ride quality over stock
  • Fabricated radius arms provide increased strength, on vehicle caster adjustment, improved tire clearance at steering lock, and higher ground clearance
SKU FRDK-K63218R Category

Le prix initial était : $ 16,036.70.Le prix actuel est : $ 15,273.04.

This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.

Additional Attributes:

GTIN: 00840103434513
Maximum Lift Height Front: 6
Maximum Lift Height Rear: 2
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 6
Leaf Spring Bracket Material: Steel
Leaf Spring Bracket Color: Black
Coil Spring End 1 Type: Square
Coil Spring End 2 Type: Square
Coils Quantity Front: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCH
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Electronic
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Maximum Lift Front: 6
Maximum Lift Rear: 2
Minimum Lift Front: 3
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Piggyback
Rear Shock Body Diameter: 2.5
Recommended Aftermarket Tires: 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset

Extended Information:

Emissions : 4
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 40.0000 x 13.0000 x 11.0000 inches
Weight: 297.0000 PG

PDF:

Information complémentaire

Poids134.72 kg
Dimensions40.0000 × 13.0000 × 11.0000 cm
