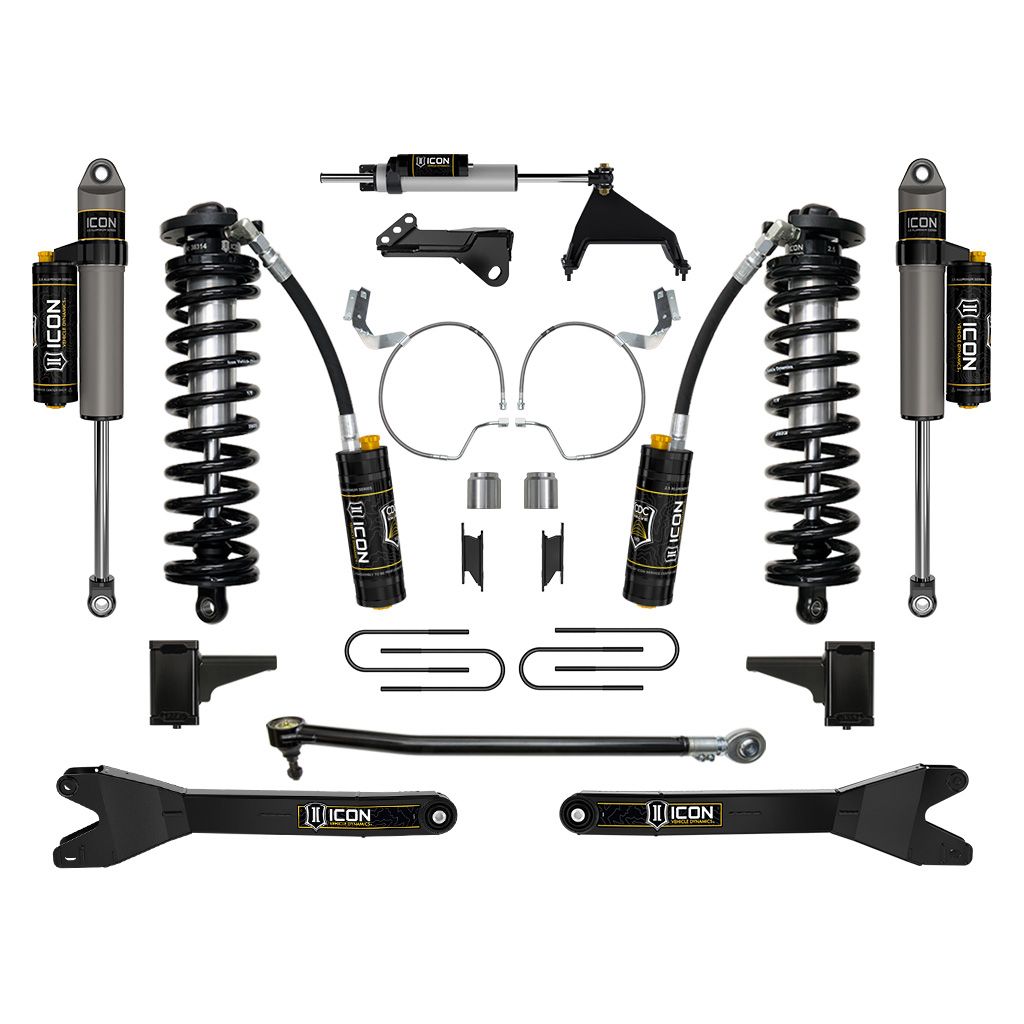

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5″ Lift, Stage 5 Coilover Conversion System w/ Radius Arms

ICON 4.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

Fits 2023-2025 F-250 / F-350 4WD applications
Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
Stainless steel braided front brake lines
Heavy-duty fabricated rear lift blocks
Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
Corrosion resistant hard anodized steering stabilizer and rear shock bodies with 7/8″ shafts
Shocks are fully rebuildable and re-tunable
Lifetime guarantee against coil spring breakage or sagging
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Bolt-in system fits in OE coil bucket location
Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5″ of front lift
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON 2.5 Aluminum Series piggyback reservoir rear shocks
Front and rear shocks are ICON CDCV equipped for 10 settings of external compression damping adjustment
Increased wheel travel and ride quality over stock
Fabricated radius arms provide increased strength, on vehicle caster adjustment, improved tire clearance at steering lock, and higher ground clearance
Track bar drop bracket reduces track bar angle and corrects bump steer geometry

SKU FRDK-K63215R Category Suspension Lift Kit

Le prix initial était : $ 13,245.12.Le prix actuel est : $ 12,614.40.

This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.

Additional Attributes:

GTIN: 00840103434469
Maximum Lift Height Front: 6
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 6
Leaf Spring Bracket Material: Steel
Leaf Spring Bracket Color: Black
Coil Spring End 1 Type: Square
Coil Spring End 2 Type: Square
Coils Quantity Front: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCH
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Manual
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Maximum Lift Front: 6
Maximum Lift Rear: 2
Minimum Lift Front: 3
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Piggyback
Rear Shock Body Diameter: 2.5
Recommended Aftermarket Tires: 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 40.0000 x 13.0000 x 11.0000 inches
Weight: 280.0000 PG

PDF:

I65053_REVA

Information complémentaire

Poids	127.01 kg
Dimensions	40.0000 × 13.0000 × 11.0000 cm
