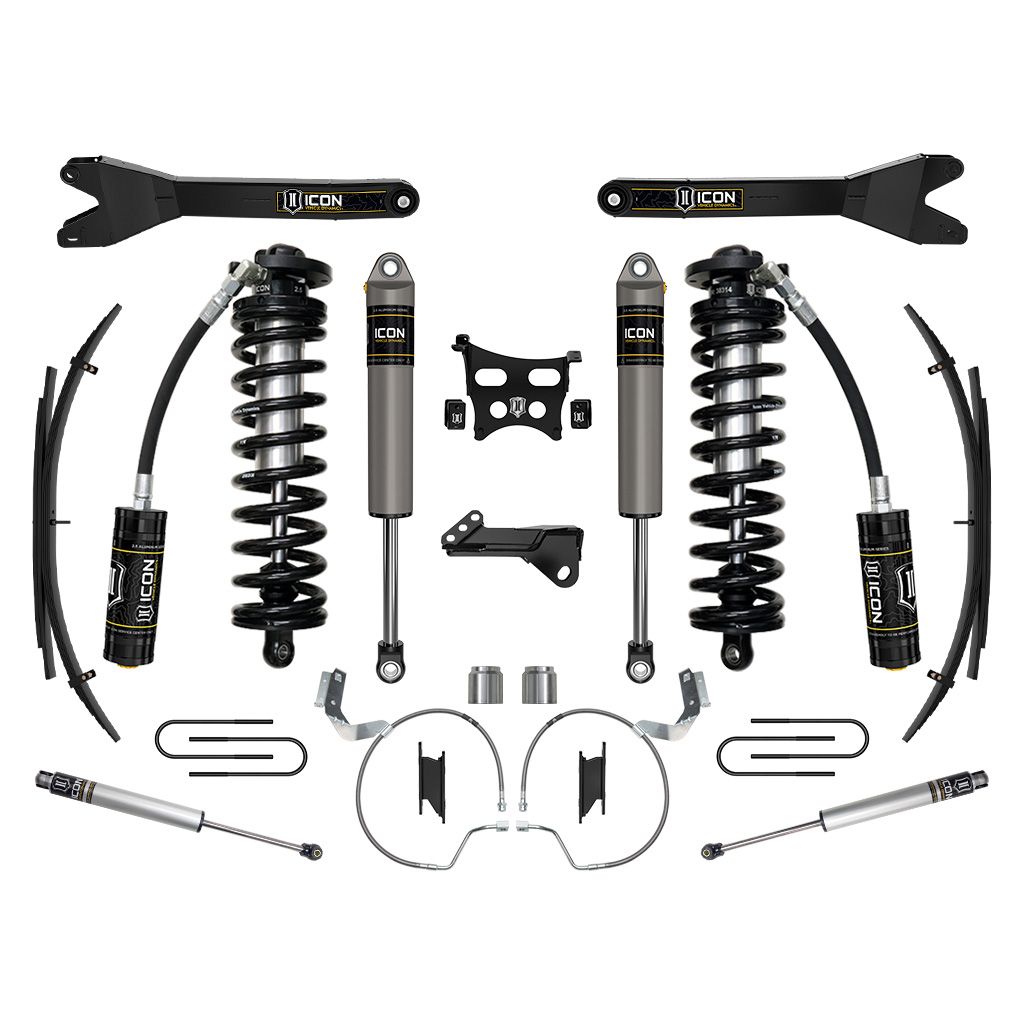

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 3 Coilover Conversion System w/ Radius Arms & Expansion Packs
ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 3 Coilover Conversion System w/ Radius Arms & Expansion Packs

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5″ Lift, Stage 3 Coilover Conversion System w/ Radius Arms & Expansion Packs

ICON 4.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

  • Fits 2023-2025 F-250 / F-350 4WD applications
  • Corrosion resistant anodized steering stabilizer shock bodies with 5/8″ shafts
  • Stainless steel braided front brake lines
  • Leaf spring expansion packs improve ride quality and provide 2″ of rear lift
  • Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
  • Corrosion resistant hard anodized rear shock bodies with 7/8″ shafts
  • Shocks are fully rebuildable and re-tunable
  • Lifetime guarantee against coil spring breakage or sagging
  • Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
  • Bolt-in system fits in OE coil bucket location
  • Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5″ of front lift
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • ICON 2.5 Aluminum Series internal reservoir rear shocks
  • Increased wheel travel and ride quality over stock
  • Fabricated radius arms provide increased strength, on vehicle caster adjustment, improved tire clearance at steering lock, and higher ground clearance
  • Track bar drop bracket reduces track bar angle and corrects bump steer geometry
  • Dual steering stabilizer kit offers increased steering damping
SKU FRDK-K63213RL Category

Le prix initial était : $ 11,342.20.Le prix actuel est : $ 10,802.10.

This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.

Additional Attributes:

GTIN: 00840103434438
Maximum Lift Height Front: 6
Maximum Lift Height Rear: 2
Leaf Spring Material: Steel
Leaf Spring Color: Black
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Maximum Lift: 6
Coil Spring End 1 Type: Square
Coil Spring End 2 Type: Square
Leaf Spring Leaf Quantity: 7
Coils Quantity Front: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KIT
Adjustable Compression: No
Adjustable Control Arm: Yes
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Maximum Lift Front: 6
Maximum Lift Rear: 2
Minimum Lift Front: 3
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2.5
Recommended Aftermarket Tires: 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 54.0000 x 48.0000 x 10.0000 inches
Weight: 397.0000 PG

PDF:

Information complémentaire

Poids180.08 kg
Dimensions54.0000 × 48.0000 × 10.0000 cm
