ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 7 Coilover Conversion System with 4-Link
ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 7 Coilover Conversion System with 4-Link

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, 2.5-3″ Lift, Stage 7 Coilover Conversion System with 4-Link

ICON coilover conversion systems lift your Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

  • Bolt-in system fits in OE coil bucket location
  • Track bar drop bracket reduces track bar angle and corrects bump steer geometry
  • Adjustable track bar ensures proper axle placement and improves handling
  • ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
  • ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
  • ICON engineered coil springs guaranteed for life against sagging or breakage
  • FK Rod End bearings for extended longevity and minimal deflection
  • Ride height adjustable coilovers provide 2.5-3″ of lift
  • Decreased body roll and improved on and off-road ride dynamics
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

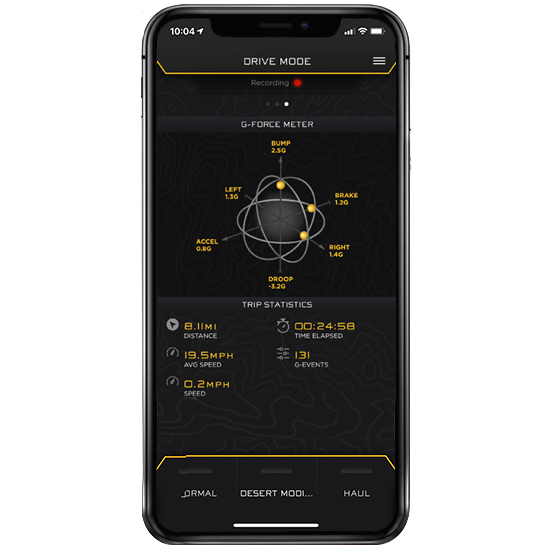

  • ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
  • 2.5 Aluminum Series remote reservoir secondary shocks with CDEV multiplies front shock damping ability
  • Shocks are fully rebuildable and revalveable
  • Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
SKU FRDK-K63207 Category

Le prix initial était : $ 20,230.99.Le prix actuel est : $ 19,267.61.

This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improving performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Additional Attributes:

GTIN: 00840103434919
Maximum Lift Height Front: 3.5
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 3.5
Coil Spring End 1 Type: Square
Coil Spring End 2 Type: Square
Coils Quantity Front: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCH
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Damping Adjustment Type: Electronic
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Maximum Lift Front: 3.5
Minimum Lift Front: 1.5
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Piggyback
Rear Shock Body Diameter: 2.5
Recommended Aftermarket Tires: 35″ x 12.50″ (37″ x 12.50″ tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 40.0000 x 13.0000 x 11.0000 inches
Weight: 313.0000 PG

PDF:

Information complémentaire

Poids141.98 kg
Dimensions40.0000 × 13.0000 × 11.0000 cm
