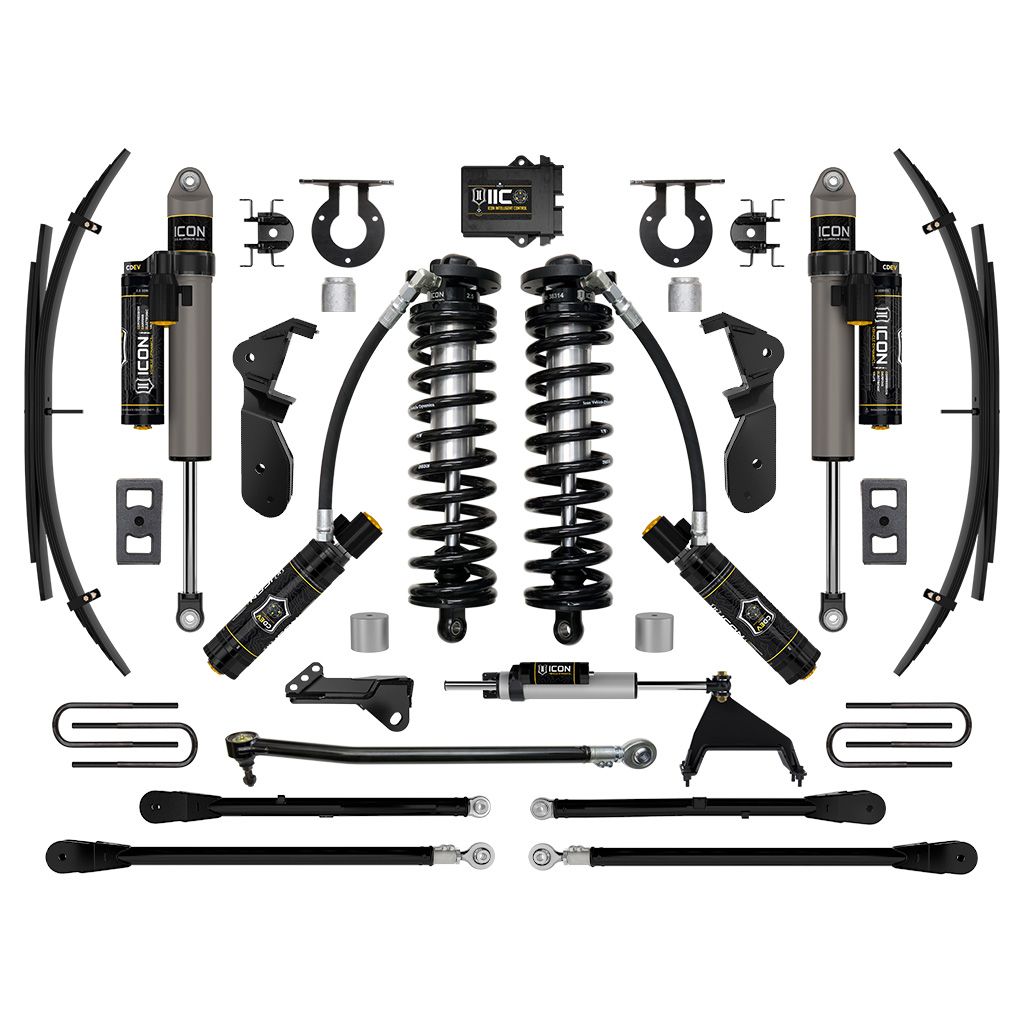

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, 2.5-3″ Lift, Stage 6 Coilover Conversion System with 4-Link and Expansion Packs

ICON coilover conversion systems lift your Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

Bolt-in system fits in OE coil bucket location
Adjustable track bar ensures proper axle placement and improves handling
ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
ICON engineered coil and leaf springs guaranteed for life against sagging or breakage
FK Rod End bearings for extended longevity and minimal deflection
Ride height adjustable coilovers provide 2.5-3″ of lift
Decreased body roll and improved on and off-road ride dynamics
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Shocks are fully rebuildable and revalveable
Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
Track bar drop bracket reduces track bar angle and corrects bump steer geometry

SKU FRDK-K63206L Category Suspension Lift Kit

Le prix initial était : $ 18,514.31.Le prix actuel est : $ 17,632.65.

This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improving performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Additional Attributes:

GTIN: 00840103434889
Maximum Lift Height Front: 3.5
Maximum Lift Height Rear: .5
Leaf Spring Material: Steel
Leaf Spring Color: Black
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 3
Coil Spring End 1 Type: Square
Coil Spring End 2 Type: Square
Leaf Spring Leaf Quantity: 7
Coils Quantity Front: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCH
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Electronic
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Maximum Lift Front: 3.5
Maximum Lift Rear: .5
Minimum Lift Front: 1.5
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Piggyback
Rear Shock Body Diameter: 2.5
Recommended Aftermarket Tires: 35″ x 12.50″ (37″ x 12.50″ tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 54.0000 x 48.0000 x 19.0000 inches
Weight: 467.0000 PG

PDF:

I65053_REVA

Information complémentaire

Poids	211.83 kg
Dimensions	54.0000 × 48.0000 × 19.0000 cm
