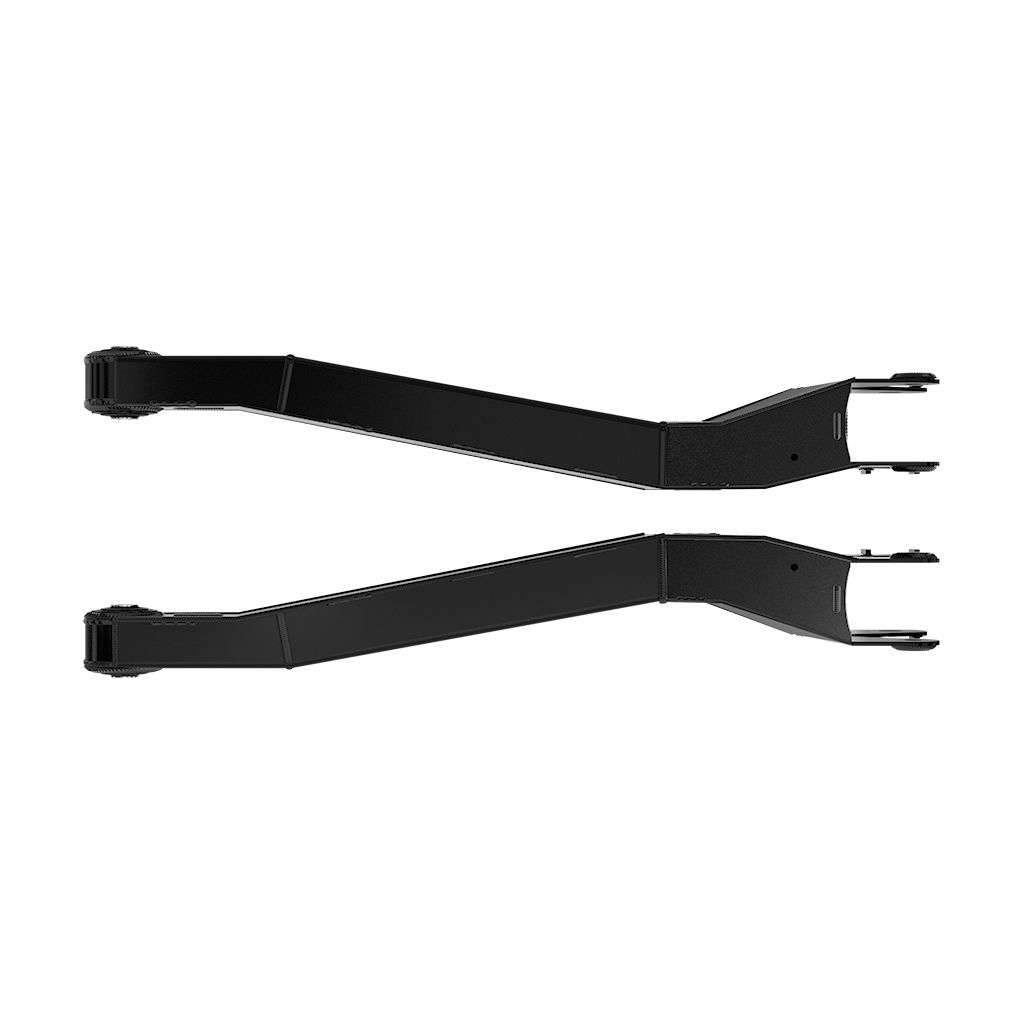

ICON 2023-2025 Ford F-250/F-350/F-450 Super Duty 4WD, Radius Arm System, 2-5.5″ Lift

The ICON Vehicle Dynamics Ford 2023-2025 F-250 and F-350 Super Duty 4WD Radius Arm System is designed with adjustable caster cams allowing fine tuning of caster angle for optimum drivability. Their added caster allows for use with 2-6” of front lift over stock with the radius arm installed in the factory pivot, eliminating the need for caster bushings or radius arm drop brackets. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. For trucks equipped with OnBoard Scales ICON also offers sensor linkage brackets for specific height ranges that allows attachment of the OE sensor linkages to the ICON radius arm, ensuring proper function of that system.

Additional Attributes:

GTIN: 00840103431826
Material: Steel
Bushing Color: Black
Color: Black
Bushings Included: Yes
Grade Type: Performance
Bushing Material: Rubber
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 66203 – 23-25 FSD ICON RADIUS ARM SCALE MOUNT KIT 2.5″
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: Up to a 37″ x 12.50″
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available Only While Supplies Last

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 40.0000 x 13.0000 x 11.0000 inches
Weight: 84.0000 PG

PDF:

I64043_REVA
