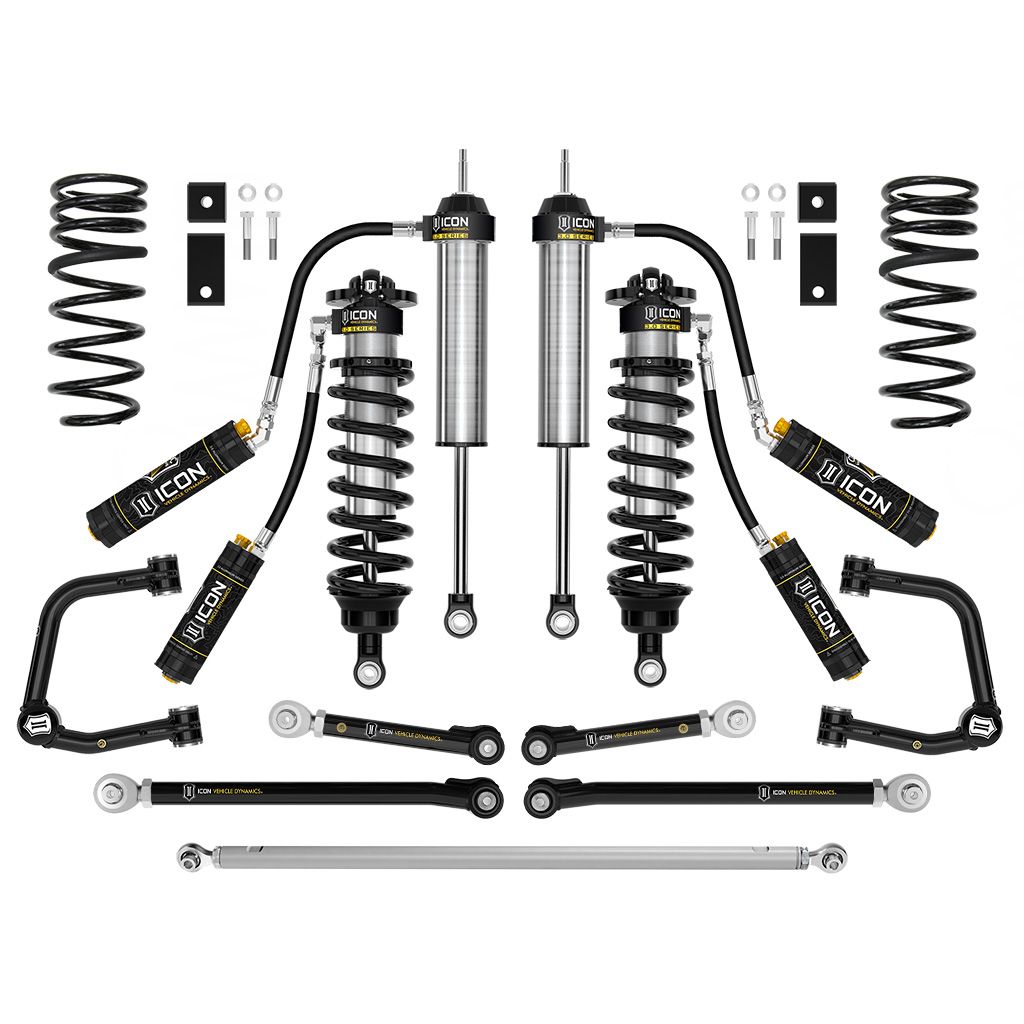

ICON 2022-2025 Toyota Tundra, 2-3.25" Lift, Stage 3 (TRD), 3.0 Suspension System, Tubular, CDCV
ICON 2022-2025 Toyota Tundra, 2-3.25" Lift, Stage 3 (TRD), 3.0 Suspension System, Tubular, CDCV

ICON 2022-2025 Toyota Tundra, 2-3.25″ Lift, Stage 3 (TRD), 3.0 Suspension System, Tubular, CDCV

Stage 3 includes 3.0 remote res coilovers for 1.25-3.25” of lift, max performance and 35” tire fitment. Tubualr UCAs, links, rear coils, track bar and 3.0 Series remote res shocks balance shock damping. CDCV for damping adjustment.

  • Vehicle specific design for 2022-2025 Toyota Tundra
  • Triple rate rear coil springs improve performance and ride quality while providing .75″ of rear lift (TRD models)
  • On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
  • 3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
  • All ICON shock absorbers are fully rebuildable and re-tunable
  • 3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
  • Adjustable front ride heights from 2-3.25” of front lift over stock when used with included tubular UCAs
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
  • Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
SKU FRDK-K53213TS Category

Le prix initial était : $ 13,566.46.Le prix actuel est : $ 12,920.46.

Rounding out the Stage 3 suspension system are 3.0 Series rear remote reservoir shocks specially tailored for the 2022-2025 Tundra to yield 20% increase in wheel travel over stock. 3.0 Series shocks also boast 50% more piston surface area compared to 2.5 Series shocks, offering outstanding performance off-road and a smooth ride on the street. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks, plus their remote reservoirs, offer even greater heat dissipation and resistance to shock fade under hard use. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

Additional Attributes:

GTIN: 00840103421858
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3.25
Coil Spring End 1 Type: Closed
Coil Spring End 2 Type: Closed
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191010 – ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Manual
Front Reservoir Style: Remote
Front Shock Body Diameter: 3
Maximum Lift Front: 3.25
Maximum Lift Rear: 1.25
Minimum Lift Front: 2
Minimum Lift Rear: .75
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 3
Rear Spring Rate Type: Progressive Triple Rate
Reservoir Style: Remote

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 33.0000 x 15.0000 x 10.0000 inches
Weight: 251.0000 PG

PDF:

Information complémentaire

Poids113.85 kg
Dimensions33.0000 × 15.0000 × 10.0000 cm
