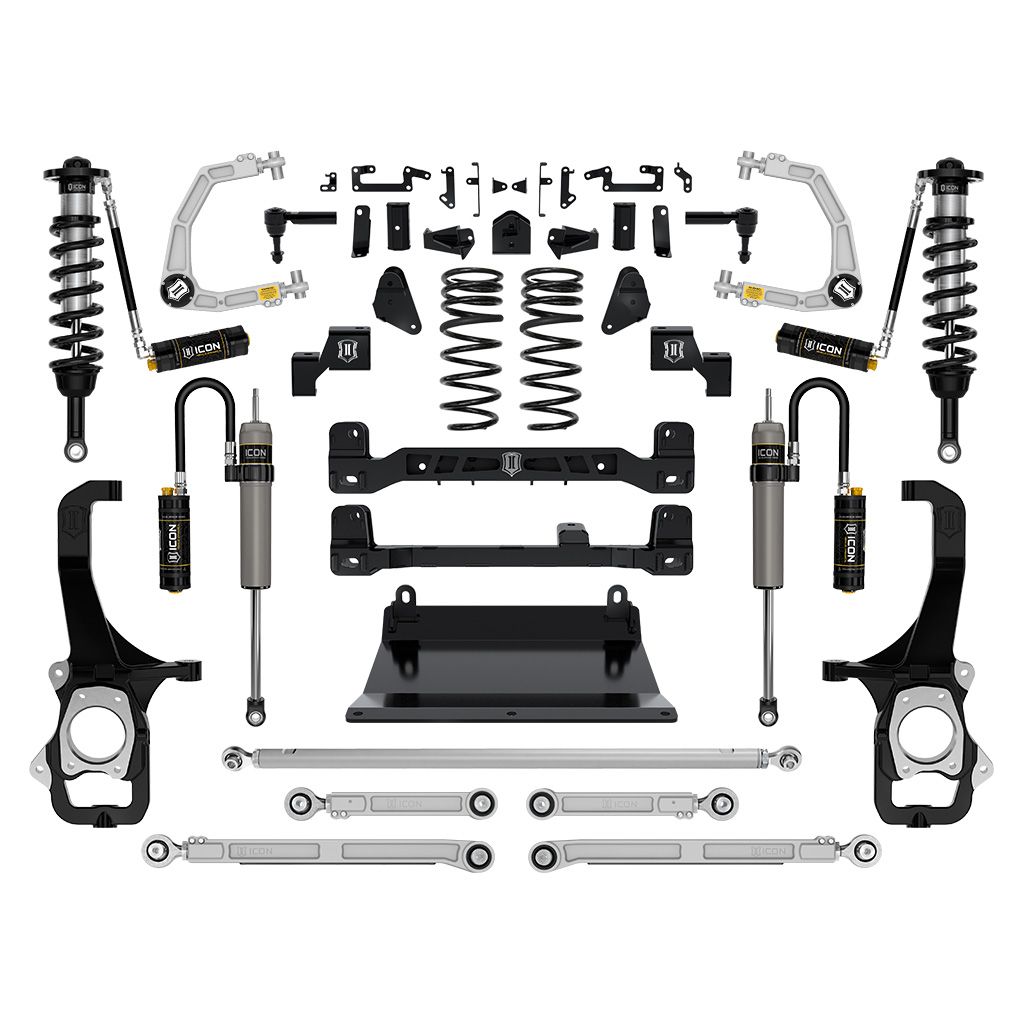

ICON 2022-2024 Toyota Tundra, 6" Lift, Stage 7 Suspension System, Billet, CDCV
ICON 2022-2024 Toyota Tundra, 6" Lift, Stage 7 Suspension System, Billet, CDCV

ICON 2022-2024 Toyota Tundra, 6″ Lift, Stage 7 Suspension System, Billet, CDCV

  • 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • Single piece high-strength ductile iron steering knuckles with built-in 4″ drop
  • Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Front and rear heavy-duty bump stop brackets
  • High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
  • ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
  • Billet rear upper and high clearance lower links improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON’s double adjuster system
  • Billet rear lower links have replaceable nylon rock sliders to protect the links from trail damage
  • On-vehicle adjustable billet rear track bar properly centers rear axle while also improve rear suspension performance
  • Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
  • Optimized design to fit 37″ tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
  • Maintains factory track width
  • Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
  • Adjustable front ride heights from 5-6” of front lift over stock (up to 6″ of lift with only 4″ of crossmember drop)
  • Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
SKU FRDK-K53277 Category

Le prix initial était : $ 18,036.82.Le prix actuel est : $ 17,177.91.

Additional Attributes:

GTIN: 00840103425429
Spring Material: Steel
Bushings Included: No
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
Strut(s) Included: No
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191013 – NIPPLE GREASING ADAPTER KIT
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Manual
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Maximum Lift Front: 6
Maximum Lift Rear: 3.5
Minimum Lift Front: 5
Minimum Lift Rear: 3
OEM Wheels & Tires Fitment: No
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 2.5
Rear Spring Rate Type: Progressive Triple Rate
Recommended Aftermarket Tires: 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625” Backspace / 16mm Offset

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 25.0000 x 24.0000 x 9.0000 inches
Weight: 462.0000 PG

PDF:

Information complémentaire

Poids209.56 kg
Dimensions25.0000 × 24.0000 × 9.0000 cm
