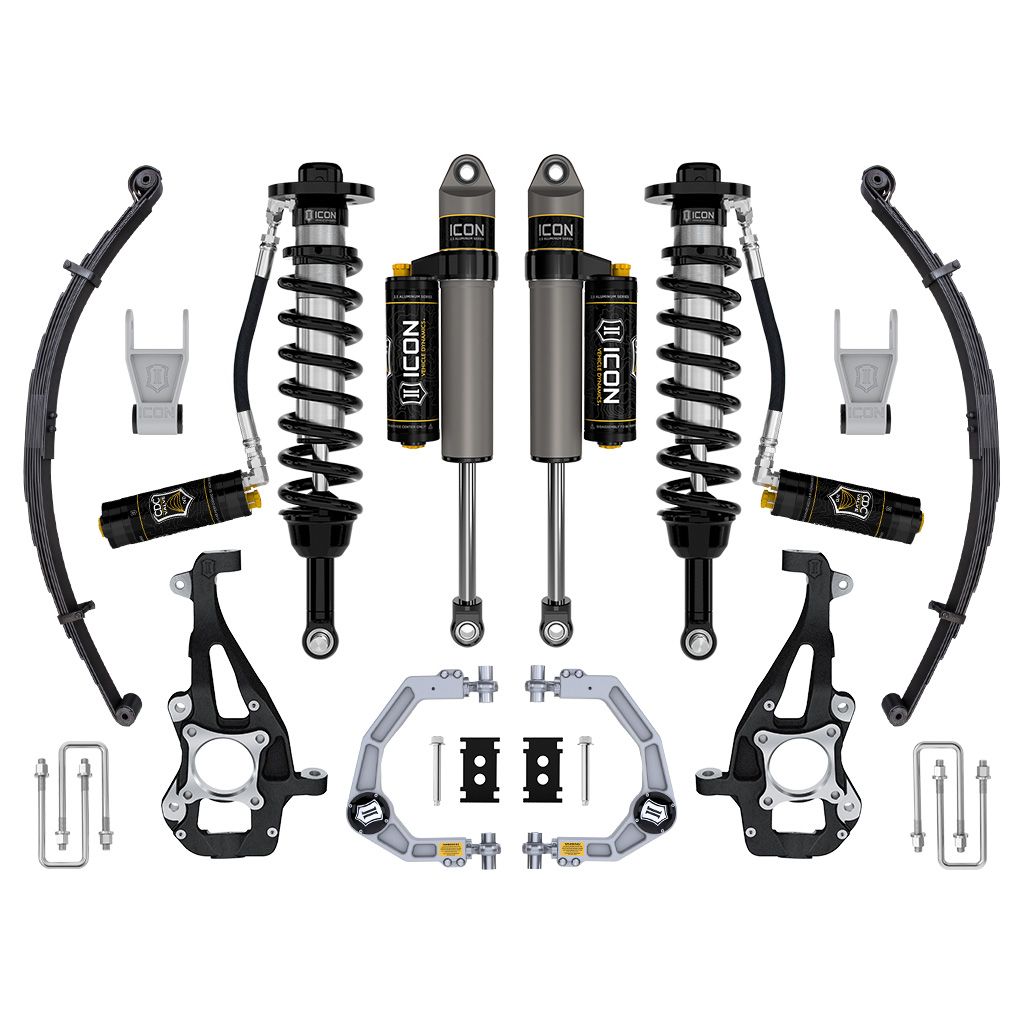

ICON 2021-2024 Ford F-150 4WD, 3.5-4.5" Lift, Stage 4 Suspension System, Billet, CDCV, w/ Leaf Packs
ICON 2021-2024 Ford F-150 4WD, 3.5-4.5" Lift, Stage 4 Suspension System, Billet, CDCV, w/ Leaf Packs

ICON 2021-2024 Ford F-150 4WD, 3.5-4.5″ Lift, Stage 4 Suspension System, Billet, CDCV, w/ Leaf Packs

ICON suspension systems lift your Ford F-150 4WD while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

  • High strength ductile iron steering knuckles replicate F-150 Tremor suspension geometry
  • High strength alloy CNC machined lower bar pin
  • 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8″ hardened chromed steel shafts
  • 6061 Aircraft grade aluminum CNC machined components
  • 3 user-adjustable rear spring rates for unique vehicle setups
  • Reduced rear axle wrap and improved ride quality compared to stock leaf springs
  • Billet aluminum lowering shackles feature maintenance and noise free OE Ford bushings
  • 100% Bolt-on system – no cutting or welding necessary for install
  • Adjustable coilovers offer 3.5-4.5″ of front lift height over stock
  • 2.5 Series front coilovers with remote reservoirs for improved shock cooling
  • Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
  • 20% increase in front wheel travel and improved ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
  • FK rod end bearings for extended longevity and minimal deflection
SKU FRDK-K93144L Category

Le prix initial était : $ 11,797.33.Le prix actuel est : $ 11,235.55.

+1.50" rear lift height over stock w/ 400lb constant load

Additional Attributes:

GTIN: 00840103427393
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 4.5
Leaf Spring Leaf Quantity: 8
Coils Quantity Front: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Damping Adjustment Type: Manual
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Maximum Lift Front: 4.5
Maximum Lift Rear: 3.5
Minimum Lift Front: 3.5
Minimum Lift Rear: 1.5
OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
Rear Reservoir Style: Piggyback
Rear Shock Body Diameter: 2.5
Rear Spring Rate Type: Variable
Recommended Aftermarket Tires: 34″ x 12.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 48.0000 x 48.0000 x 10.0000 inches
Weight: 426.0000 PG

PDF:

Information complémentaire

Poids193.23 kg
Dimensions48.0000 × 48.0000 × 10.0000 cm
