ICON 2021-2023 Ford Bronco, HOSS 1.0 Pkg, 1.375-3" Lift, Stage 2 Suspension System, Billet
ICON 2021-2023 Ford Bronco, HOSS 1.0 Pkg, 1.375-3" Lift, Stage 2 Suspension System, Billet
ICON 2021-2023 Ford Bronco, HOSS 1.0 Pkg, 1.375-3" Lift, Stage 2 Suspension System, Billet

ICON 2021-2023 Ford Bronco, HOSS 1.0 Pkg, 1.375-3″ Lift, Stage 2 Suspension System, Billet

ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

  • Vehicle specific design for 2021-2023 Ford Bronco with HOSS 1.0 Suspension Package
  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
  • 100% Bolt-on – no cutting or welding necessary for installation
  • Fully rebuildable and re-tunable
  • Vehicle specific tuned shocks for superior shock damping and vehicle control

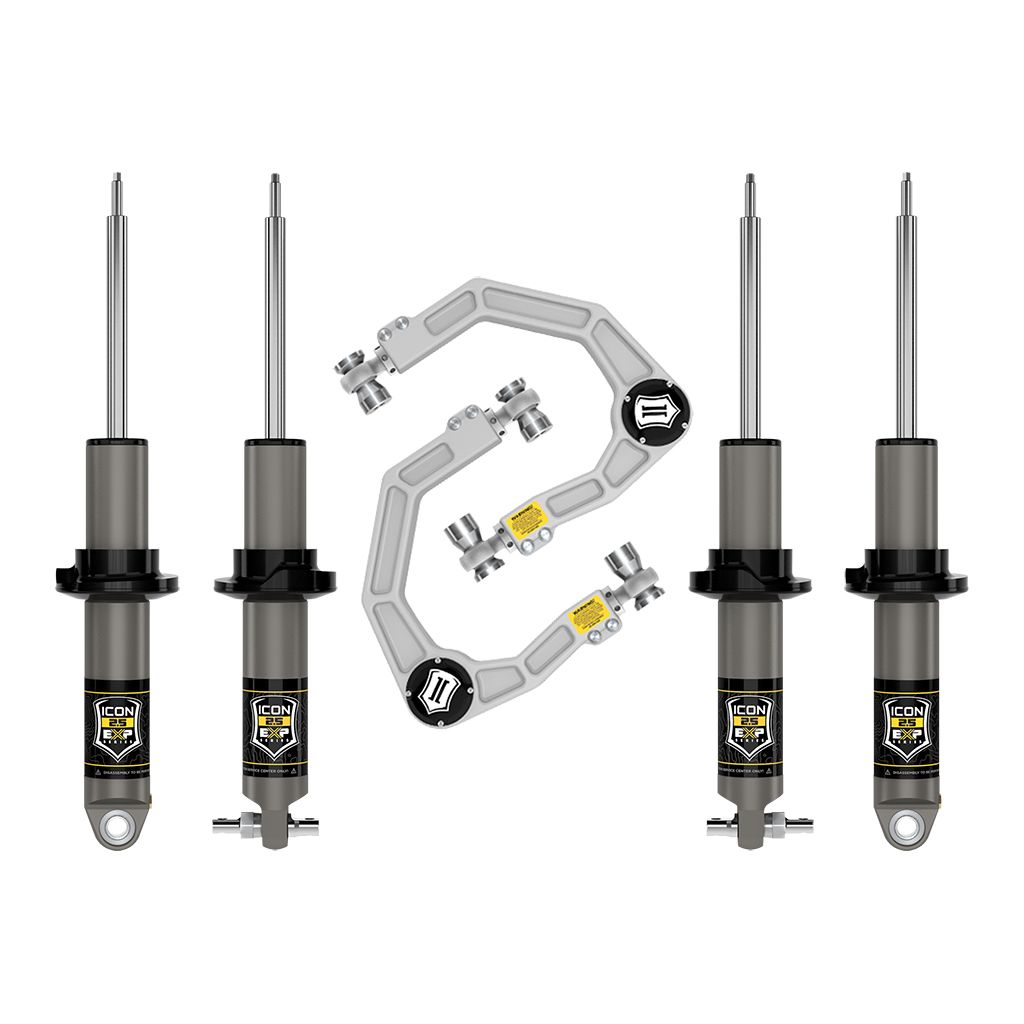

  • Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
  • Adjustable ride heights from 1.375-3” of front lift and 1.5-2.25″ of rear lift over stock with the use of snap rings
  • Utilizes factory coils and coil hardware
  • Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shafts
  • One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
  • CNC machined 6061 aluminum components with a black anodized finish
  • PTFE lined spherical bearings for extended longevity and minimal deflection
SKU FRDK-K40002 Category

Le prix initial était : 3,761.27$.Le prix actuel est : 3,582.14$.

HOSS 1.0 is Ford's "base" suspension system for Broncos with the Base, Big Bend, Outer Banks and Black Diamond trim levels WITHOUT the Sasquatch package. HOSS 1.0 is most easily identified by the BLACK shock bodies of the OE shocks.

Additional Attributes:

GTIN: 00840103420905
Bushings Included: Yes
Mounting Hardware Included: Yes
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191013 – NIPPLE GREASING ADAPTER KIT
Adjustable Compression: No
Adjustable Control Arm: Yes
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Front Shock Body Diameter: 2.5
Maximum Lift Front: 3
Maximum Lift Rear: 2.25
Minimum Lift Front: 1.375
Minimum Lift Rear: 1.5
OEM Wheels & Tires Fitment: No
Rear Shock Body Diameter: 2.5
Recommended Aftermarket Tires: 35″ x 12.50″ (Recommend high clearance crash bars part number 42000, 37″ tires require coilover bump stop spacers along with trimming and modifications)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm Offset
Reservoir Style: Internal

Extended Information:

Emissions : 4
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 32.0000 x 6.0000 x 5.0000 inches
Weight: 74.0000 PG

PDF:

Information complémentaire

Poids33.57 kg
Dimensions32.0000 × 6.0000 × 5.0000 cm
