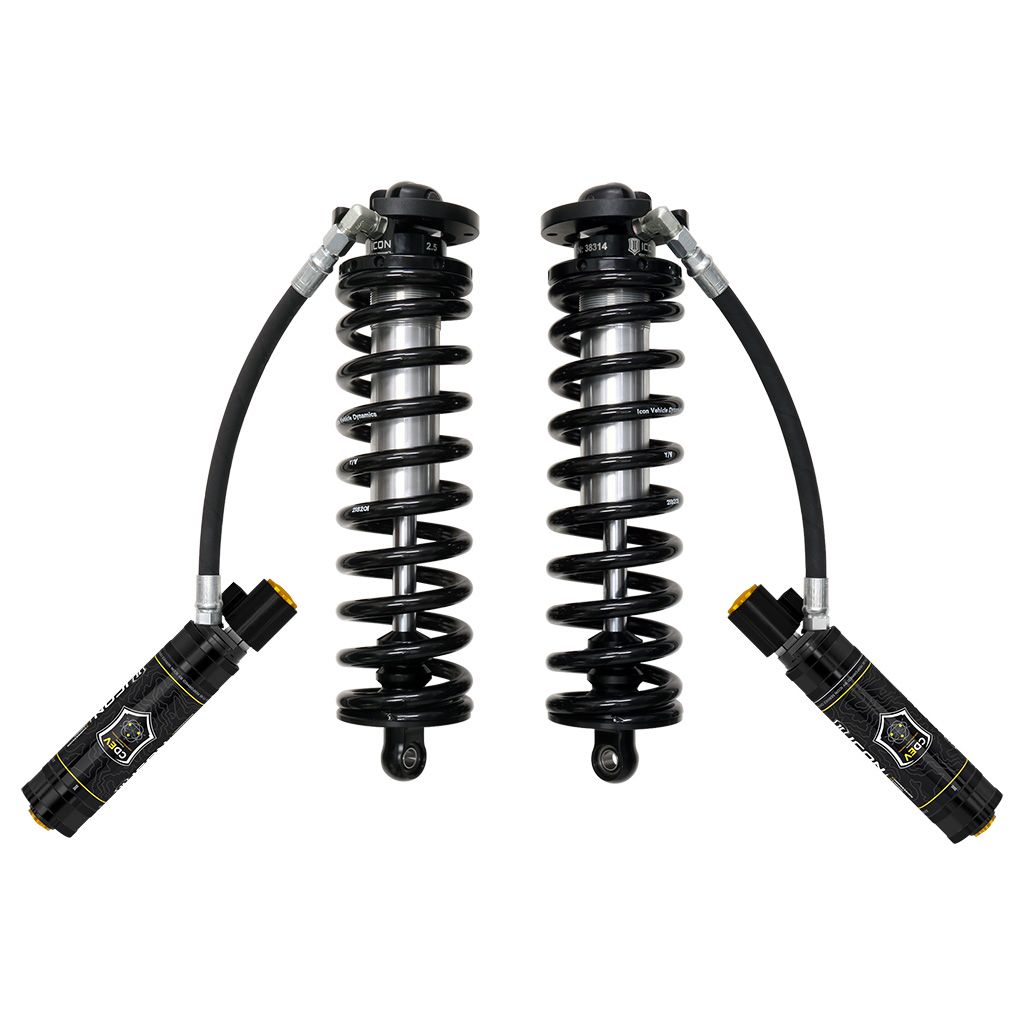

ICON 2017-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 2.5 Series Coilover Conversion Kit, Remote Reservoir w/ CDEV

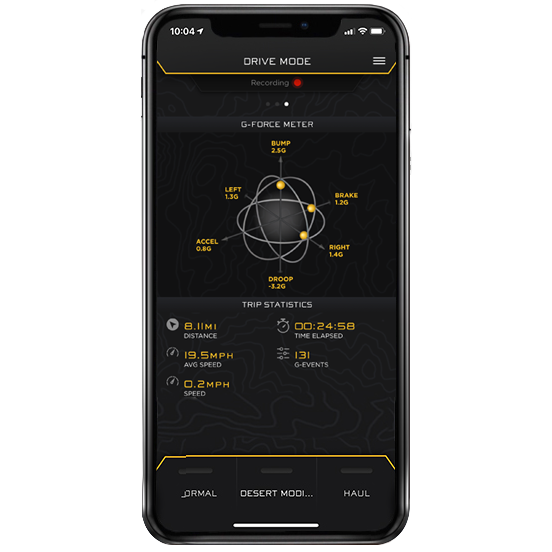

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Additional Attributes:

GTIN: 00840103414447
Valving Type: Digressive
Adjustable Compression: Yes
Self-Leveling: No
Active or Passive Suspension: Active
Spring Material: Steel
Cylinder Material: Steel
Adjustable Height: Yes
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: Eyelet
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: Yes
Cylinder Color: Silver
Body Diameter: 2.5
Adjustable Damping: Yes
Adjustable Rebound: No
Dust Shield Included: No
Remote Reservoir: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191207 – IIC CONTROLER ALT FUNCTION PLUG KIT
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Cylinder Finish: Cadmium Plated
Damping Adjustment Type: Electronic
Damping Type: Oil
Dust Shield: No
Material: Aluminum
Maximum Lift: 6.25
Minimum Lift: 3.5
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm Offset
Reservoir Style: Remote
Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Linear

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 31.0000 x 13.0000 x 8.0000 inches
Weight: 71.0000 PG

PDF:

I61721E_REVC
