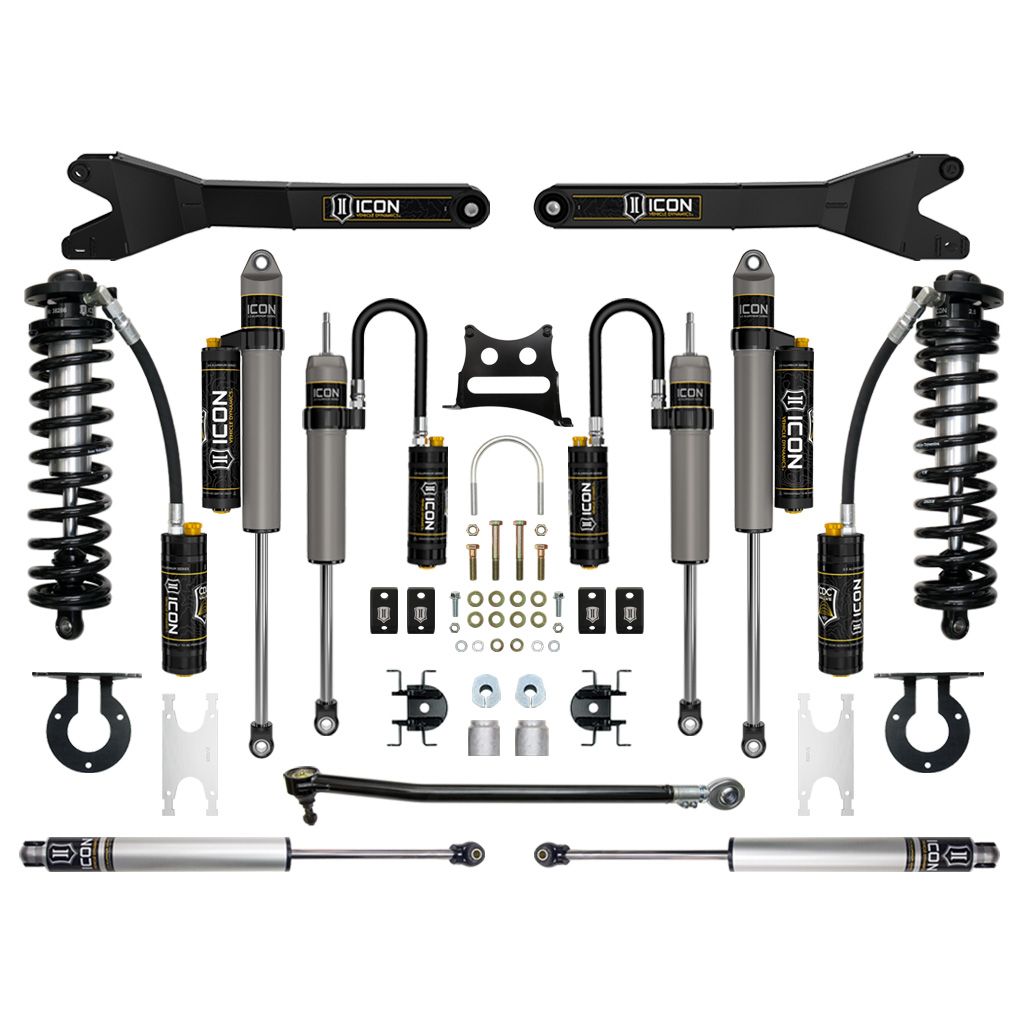

ICON 2017-2022 Ford F250/F350, 2.5-3" Lift, Stage 6 Coilover Conversion System

ICON 2017-2022 Ford F250/F350, 2.5-3″ Lift, Stage 6 Coilover Conversion System

2017-2022 FORD F-250/F-350 SUPER DUTY 2.5-3" LIFT STAGE 6 COILOVER CONVERSION SYSTEM

  • Bolt-in system fits in OE coil bucket location
  • FK Rod End bearings for extended longevity and minimal deflection
  • Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
  • Ride height adjustable coilovers provide 2.5-3″ or 3.25-3.75″ of lift, depending on year model of truck
  • Decreased body roll and improved on and off-road ride dynamics
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • Shocks are fully rebuildable and revalveable
  • Coilover conversion allows for addition of secondary shock
  • Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
  • Corrosion resistant anodized aluminum shock bodies on rear and secondary front shocks
  • Eibach coil springs guaranteed for life against sagging or breakage
SKU FRDK-K63146 Category

Le prix initial était : $ 13,520.31.Le prix actuel est : $ 12,876.51.

This Stage 6 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Additional Attributes:

GTIN: 00840103418469
Maximum Lift Height Front: 3.75
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 3.75
Coils Quantity Front: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCH
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Manual
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Maximum Lift Front: 3.75
Minimum Lift Front: 1.5
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Piggyback
Rear Shock Body Diameter: 2.5
Recommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 27.0000 x 12.0000 x 10.0000 inches
Weight: 257.0000 PG

PDF:

Information complémentaire

Poids116.58 kg
Dimensions27.0000 × 12.0000 × 10.0000 cm
