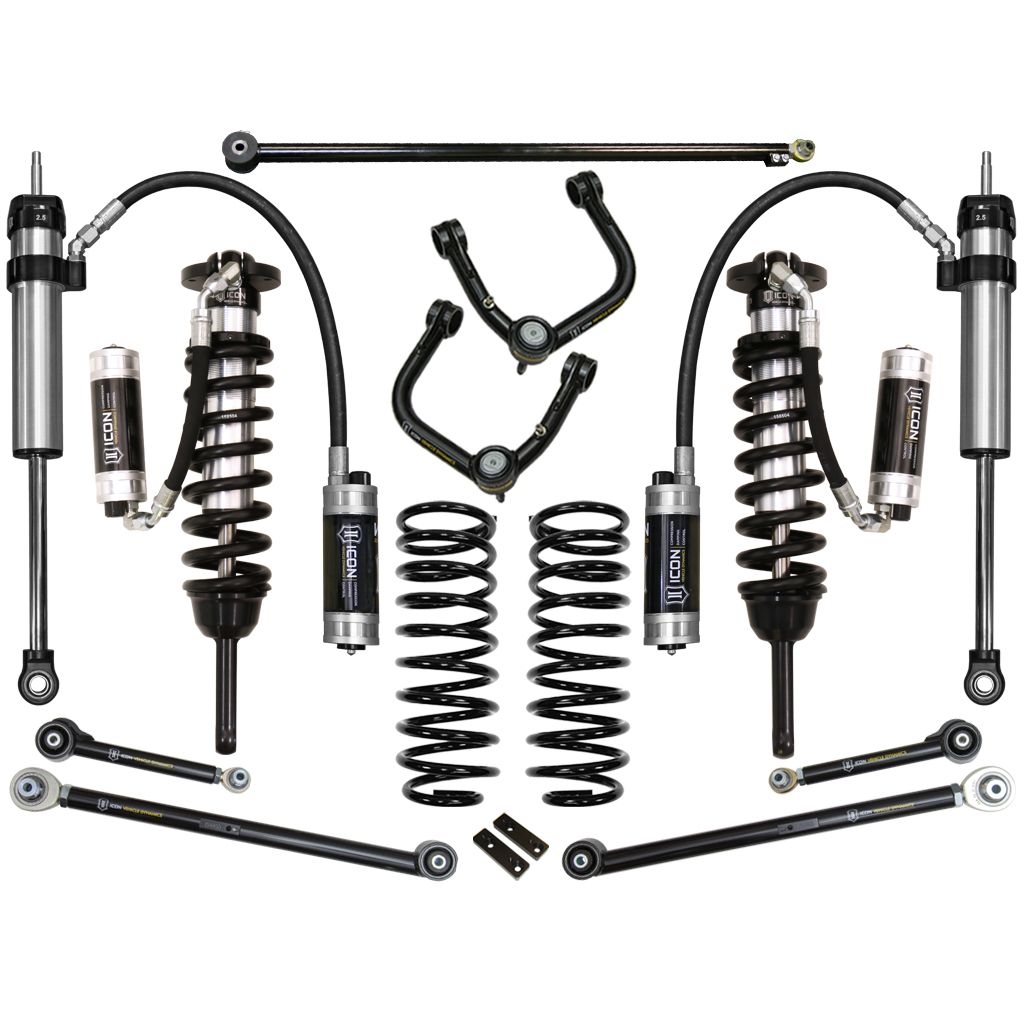

ICON 2010-2024 Toyota 4Runner/2010-2014 Toyota FJ Cruiser, 0-3.5″ Lift Stage 7 Suspension System, Tubular UCA

ICON suspension systems lift your 4Runner or FJ Cruiser while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

Increased wheel travel and ride quality over stock
FK Rod End bearings for extended longevity and minimal deflection
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Adjustable rear track bar proper rear axle placement under vehicle
Bolt-on system means no cutting or welding necessary for install
Vehicle specific tuned front and rear shocks for superior shock damping and control
CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
Adjustable coilovers provide 0-3.5″ of front lift height
Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
Tubular upper control arms for added strength, durability, and improved alignment geometry
Tubular upper and lower rear links offer increased strength, improved geometry, and pinion angle adjustment
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts

SKU FRDK-K53067T Category Suspension Lift Kit

Le prix initial était : $ 9,720.64.Le prix actuel est : $ 9,257.75.

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Additional Attributes:

GTIN: 00840103417066
Spring Rate: 650
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3.5
Coils Quantity Rear: 2
Rear Spring Rate Type: Linear
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Damping: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Damping Adjustment Type: Manual
Maximum Lift Front: 3.5
Maximum Lift Rear: 2
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm Offset

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 27.0000 x 12.0000 x 8.0000 inches
Weight: 187.0000 PG

PDF:

I58747C_REVD

Information complémentaire

Poids	84.82 kg
Dimensions	27.0000 × 12.0000 × 8.0000 cm
