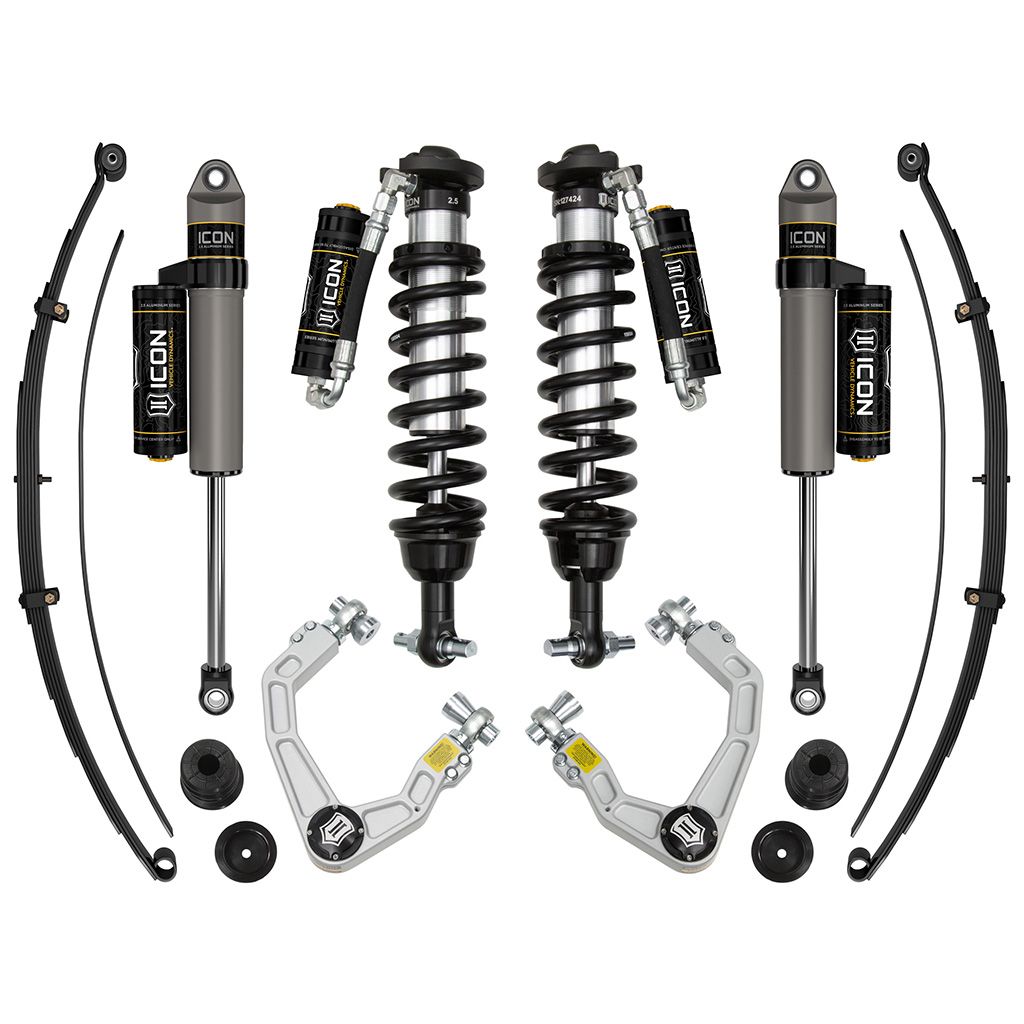

ICON 19-21 Ford Ranger, 0-3.5" Lift, Stage 7 Susp System, Billet UCA Al Knuckle
ICON 19-21 Ford Ranger, 0-3.5" Lift, Stage 7 Susp System, Billet UCA Al Knuckle

ICON 19-21 Ford Ranger, 0-3.5″ Lift, Stage 7 Susp System, Billet UCA Al Knuckle

ICON complete suspension systems lift your Ford Ranger while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

  • Height-adjustable coilovers provide a range of 0-3.5” of front lift height
  • ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
  • CNC machined 6061 billet aluminum upper control arms allow for on-vehicle camber and caster adjustment
  • Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
  • Delta Joint ball joints carry ICON’s exclusive 5 year limited warranty
  • 3 user-adjustable rear spring rates for unique vehicle configurations
  • Significantly lighter rear spring rate (up to 35%) allows for smooth motion throughout the entire range of travel
  • Direct bolt-in design makes for a simple and straightforward installation
  • Lifetime guarantee against ICON fabricated component and coil spring breakage or manufacturer defect
  • Fits 2WD & 4WD applications
  • Increased lift height allows for fitment of larger and more aggressive tires
  • 35% increase in front wheel travel over stock
  • ICON shocks feature vehicle specific tune for superior performance and ride quality
  • Corrosion resistant CAD plated shock body with 7/8″ shaft (2.5 Series coilovers)
  • Corrosion resistant hard anodized shock body with 7/8″ shaft (2.5 Aluminum Series rear shocks)
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Shocks are fully rebuildable and revalvable
SKU FRDK-K93207A Category

Le prix initial était : $ 8,488.42.Le prix actuel est : $ 8,084.21.

This system features billet aluminum upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Additional Attributes:

GTIN: 00840103422626
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Leaf Spring Leaf Quantity: 7
Coils Quantity Front: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Maximum Lift Front: 3.5
Maximum Lift Rear: 2
Minimum Lift Rear: .375
OEM Wheels & Tires Fitment: Yes
Rear Spring Rate Type: Variable
Recommended Aftermarket Tires: 33″x11.25″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset

Extended Information:

Emissions : Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 48.0000 x 48.0000 x 17.0000 inches
Weight: 263.0000 PG

PDF:

Information complémentaire

Poids119.3 kg
Dimensions48.0000 × 48.0000 × 17.0000 cm
