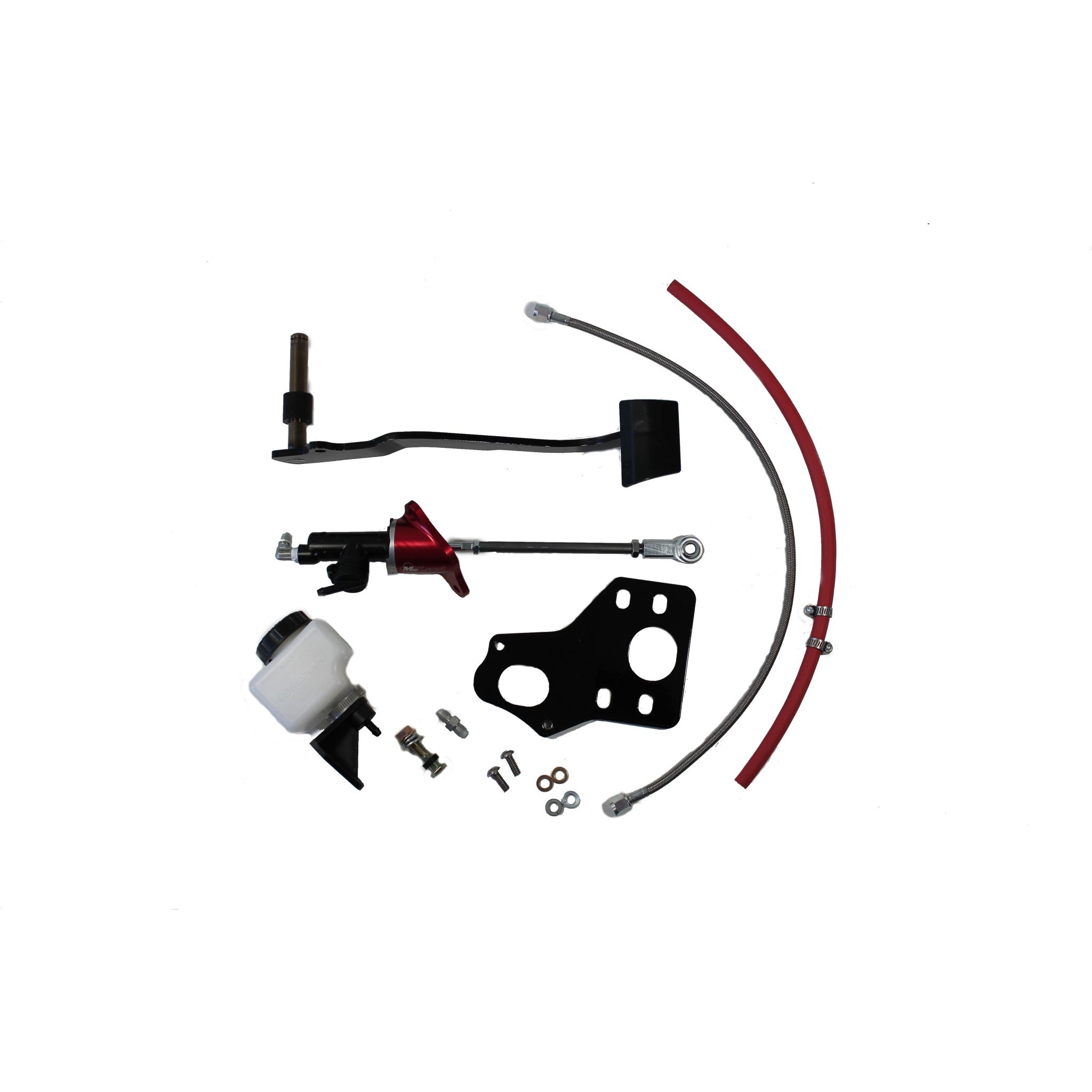

Hydraulic Conversion Kit: 67-69 Camaro, 68-74 Nova: w/AN-4 Fitting: No Bearing

Hydraulic Conversion Kit -Ideal For Cars That Have Aging Mechanical Linkage Or Need Extra Space Due To A Motor Swap Or Other Changes, A Mcleod Hydraulic Kit Is Designed With The Very Best Components For Ease Of Install And Great Life. An Additional Benefit When Installing This Mcleod Hydraulic Kit Is The Self-Adjusting Bearing Feature. No More Adjusting The Clutch Every 4 — 6 Months. The Hydraulic Kit Will Allow The Bearing To Self Adjust When The Disc Wears Throughout It Is Life Cycle. Include Master Cylinder And Line. Hydraulic Bearing Must Be Purchased Separately

Additional Attributes:

GTIN: 00887753011541
Application: 1967-69 Camaro, 1968-74 Nova
Fitting Connection: AN-4
Hoses Included: Yes
Hydraulic Bearing Included: No
Master Cylinder Bore Size (in.): 0.750
Master Cylinder Stroke (in.): 1.200
Master Cylinder Usage: Clutch
Mounting Brackets Included: Yes
Notes: Firewall Kit Only. Hydraulic Bearing (sold separately). Works with 67-69 Camaro, 68-74 Nova manual pedal box assemblies only.
Quantity: Sold as a kit.
Reservoir Included: Yes
Slave Cylinder Included: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 13.25 x 14.5 x 3.25 inches
Weight: 12 PG

PDF:

I0013.4 67-69 Camaro Conversion Kit Instructions Revised
