High-output cannister-style ignition coil for Pro-Flo 4 and aftermarket EFI

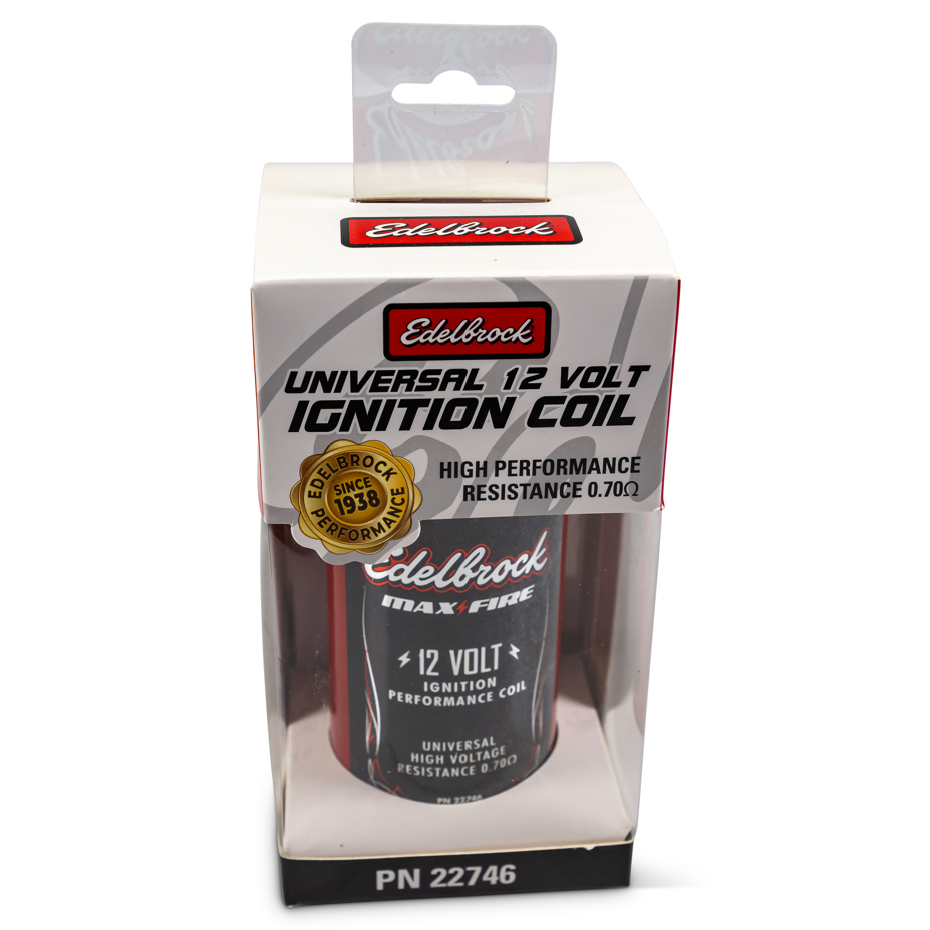

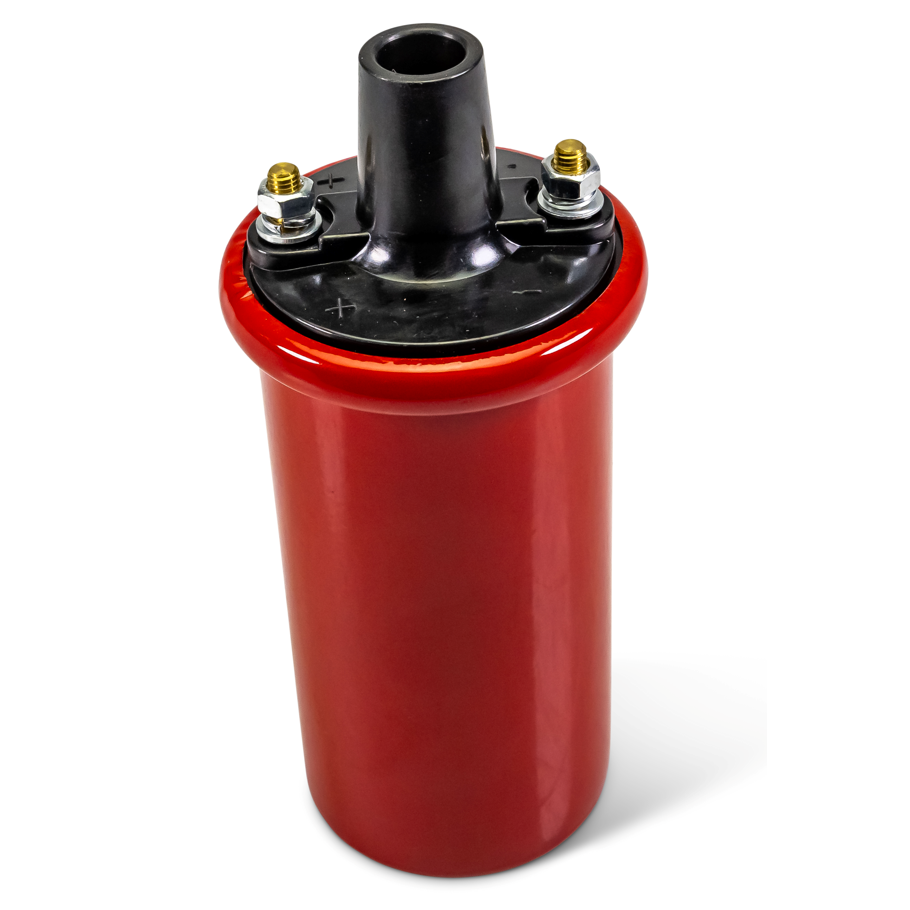

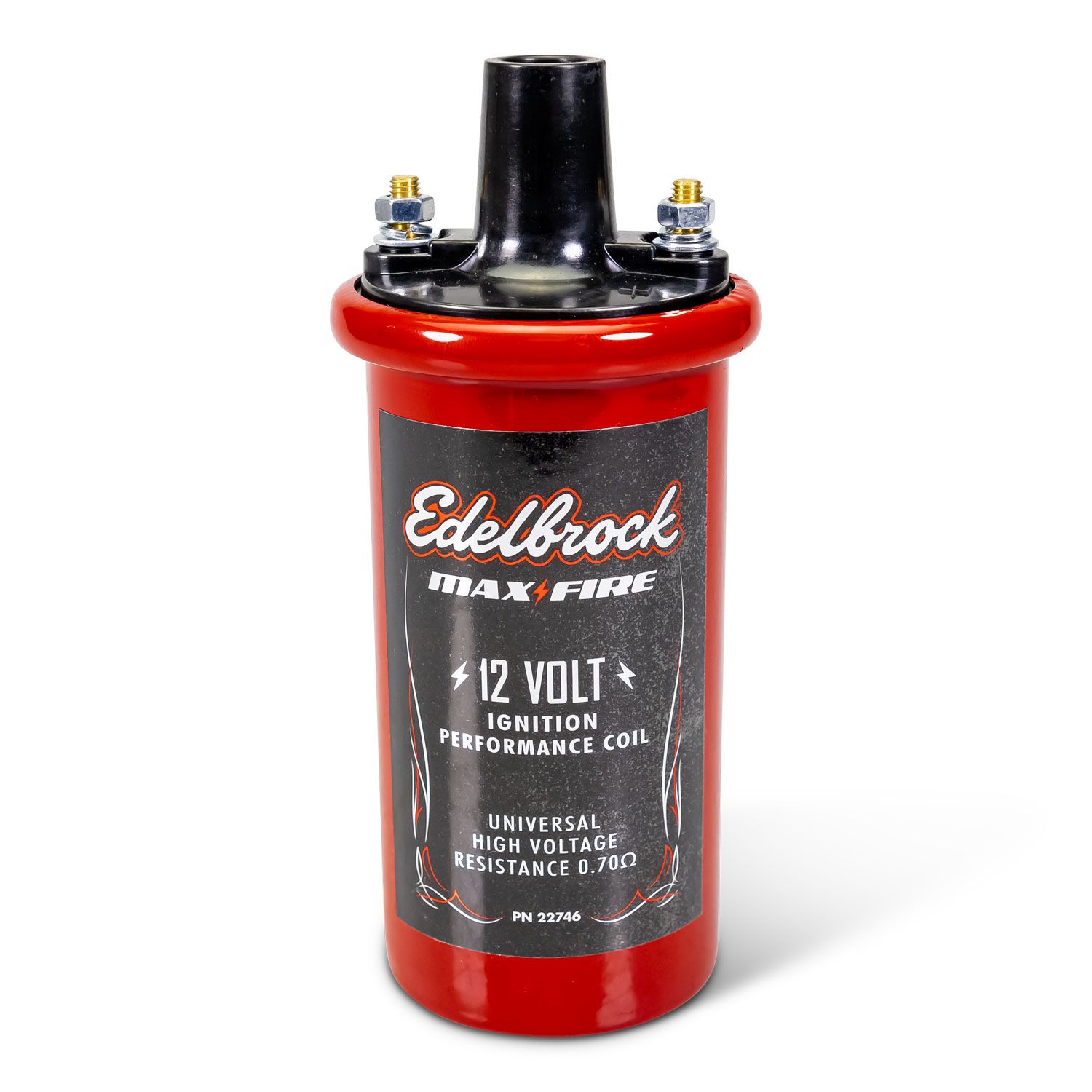

Edelbrock Ignition Coil #22746 is a high-output oil-filled cannister-style coil recommended for use with Pro-Flo 4 EFI applications and is also compatible with other aftermarket EFI and ready-to-run distributors. Features include a higher winding ratio for more voltage build-up and higher spark energy when compared to competitor coils. The main difference between the Edelbrock #22746 Coil and other cannister-style coils is the primary resistance of 0.7 ohms compared to 0.4 ohms for standard ignition systems. A primary resistance of 0.7 ohms is the minimum that we recommend for use with Pro-Flo 4 EFI systems.

Additional Attributes:

GTIN: 00085347227464
Color: Red
Connector Gender: Female
Internal Construction Type: Oil-Filled
Primary Resistance: 0.70
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Extended Information:

Emissions : 2
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 8 x 3 x 3 inches
Weight: 1.4 PG
