Hi-Tech Severe Duty Timing Chain Set for 2015-2018 Ford 5.0 Coyote

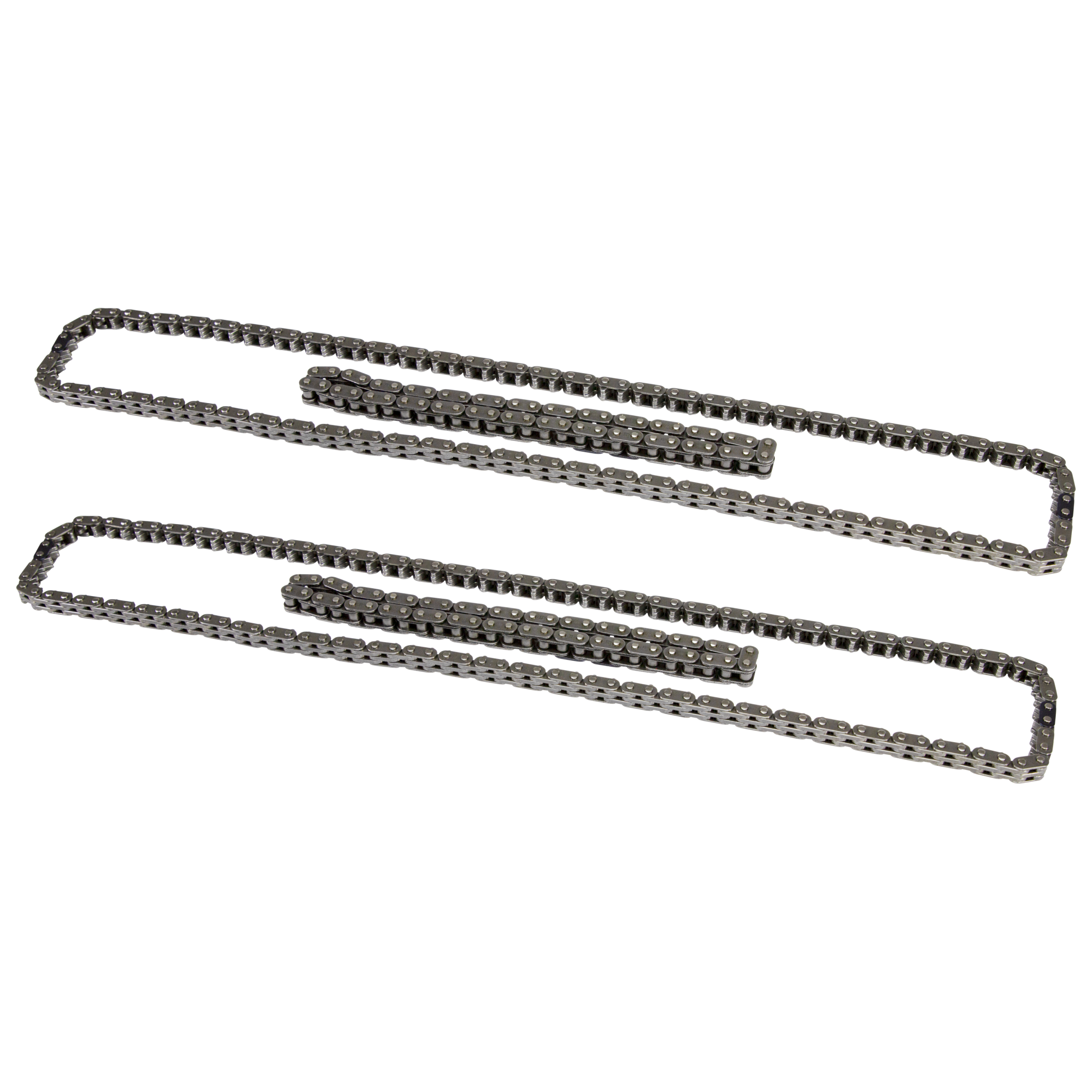

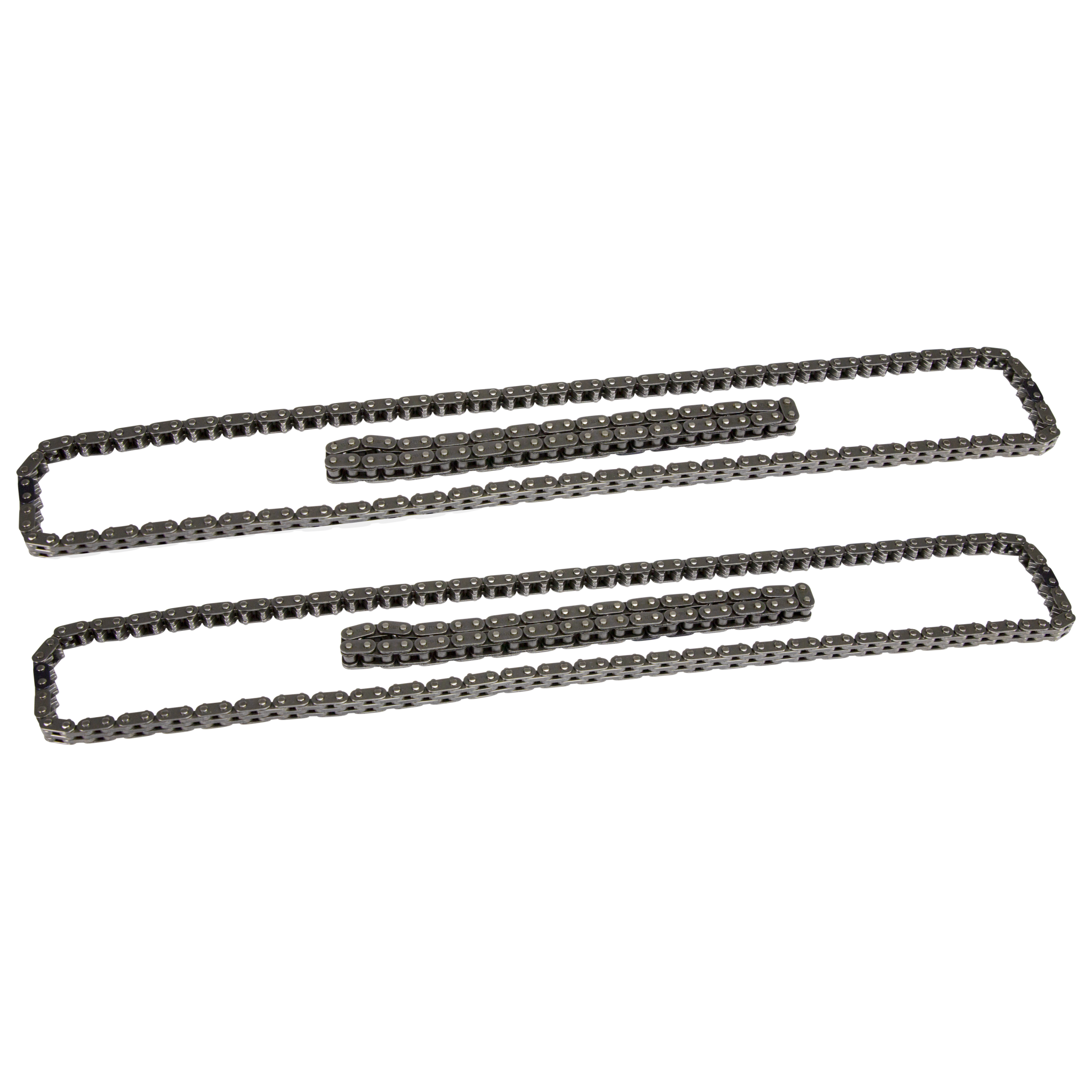

these timing chain sets provide the durability needed in aggressive racing environments. Sets include two primary and two secondary chains.

Additional Attributes:

GTIN: 00036584405450
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam Bolt Number: N/A
Camshaft Sprocket Material: No sprocket included
Chain Width: 0.347 primary, 0.430 secondary
Clears Factory Timing Cover?: Yes
Crankshaft Sprocket Material: No sprocket included
Engine Family: Ford Coyote
Includes Crank Position Trigger Wheel: No
Includes Crankshaft Sprocket: No
Includes Dowel Pin and Fasteners: No
Includes Secondary Timing Chain Tensioners: No
Includes Secondary Timing Chains: Yes
Includes Tensioner Arms: No
Includes Timing Chain Guides: No
Includes Timing Chain Tensioners: No
Keyway Adjustable: N/A
Maximum Advance At Camshaft: N/A
Maximum Advance: N/A
Maximum Retard At Camshaft: N/A
Maximum Retard: N/A
Number of Crankshaft Keyways: N/A
OE Number: M-6004-A504
Pole Count: N/A
Reluctor Count: No reluctor included
Replacement Performance Chain Part Number: N/A
Thrust Bearing Included?: No
Timing Chain Type: Inverted tooth / roller
Timing Set Series: Hi-Tech

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 12 x 6.5 x 2.75 inches
Weight: 4 PG
