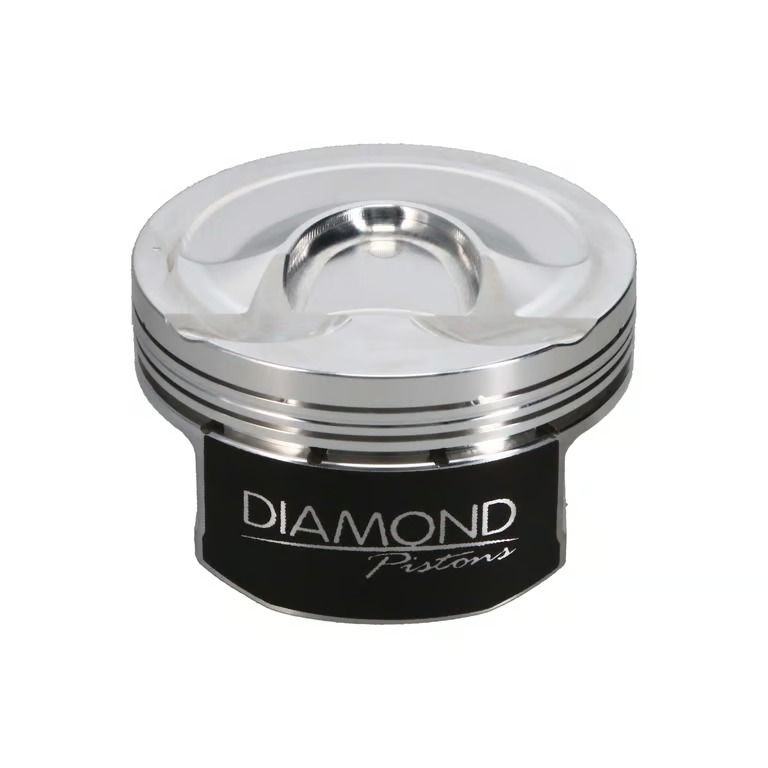

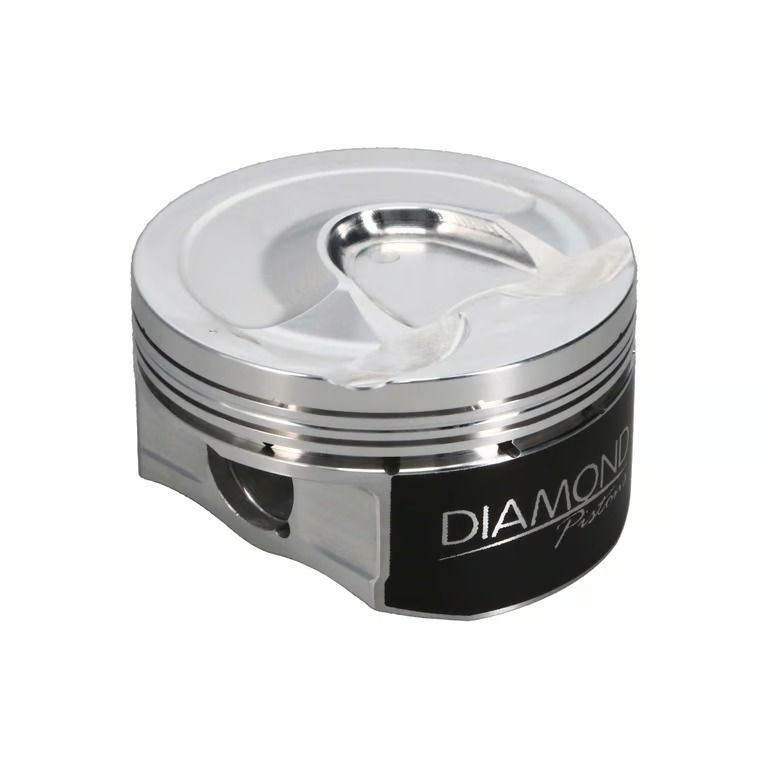

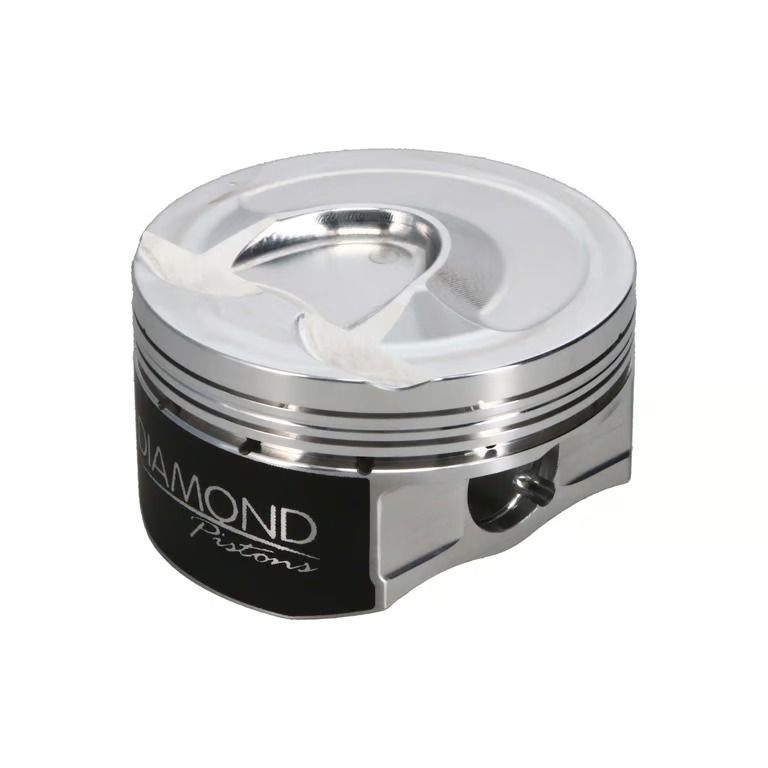

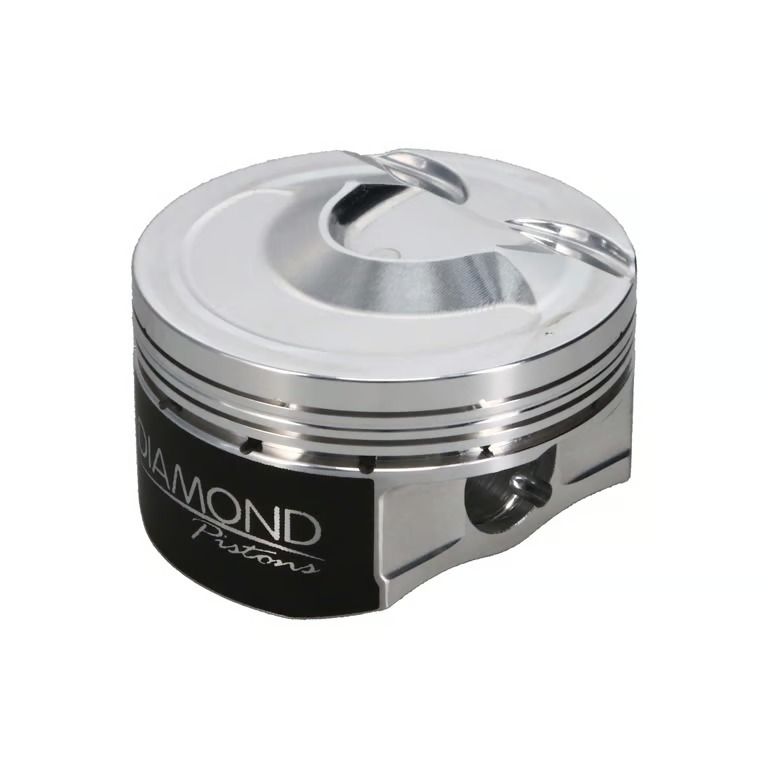

GM LF4 Street/Strip Piston Kit – 94.00 mm Bore – 1.240 in. CH, 1.90 CC

Diamond?s years of working alongside top sport compact race teams have helped generate an exceptionally robust line of sport compact pistons. Race proven designs are combined with precision CNC machining, strong 2618 forged aluminum, and premium Trend Performance wrist pins to deliver unmatched durability and performance. Whether you?re looking more power, boost readiness, or chasing records and win lights on the racetrack, Diamond?s mild-to-wild sport compact line is ready to help you get there. Don?t see the exact part you need in our catalog? No problem, we can custom make you a piston to your exact specifications.

Additional Attributes:

GTIN: 00193564467867
Add-On: 09523700
Add-On: G9452250185C
Add-On: 015133-12
Bore Diameter: 94.00
Compression Height: 1.240
Compression Ratio: 11.30
EBAY Category ID: 33623
Engine – Web: LF4
Engine Type: ICE
Engine: LF4
Forging Type: Full Round
Industry: Automotive
Make: Chevrolet
Oil Rail Support Included: No
Oil Ring Thickness: 2.80
Piston Quantity: 6
Piston Series: LF4
Piston Volume: 1.90
Product Market: Sport Compact
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ring Set Included: Yes
Ring Set Part Number: 09523700
Ring Set Thickness: 1.00 MM x 1.20 MM x 2.80 MM
Rod Length: 5.940
Second Compression Ring Thickness: 1.20
Stroke: 85.60
Top Compression Ring Thickness: 1.00
VP Exhaust Depth: 0.000
VP Intake Depth: 0.110
Wrist Pin Dimensions: 0.945 x 2.250
Wrist Pin Included: Yes
Wrist Pin Length: 2.250
Wrist Pin Outside Diameter: 0.945
Wrist Pin Part Number: G9452250185C
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Part Number: 015133-12

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 22.000 x 11.000 x 4.000 inches
Weight: 14.000 PG
