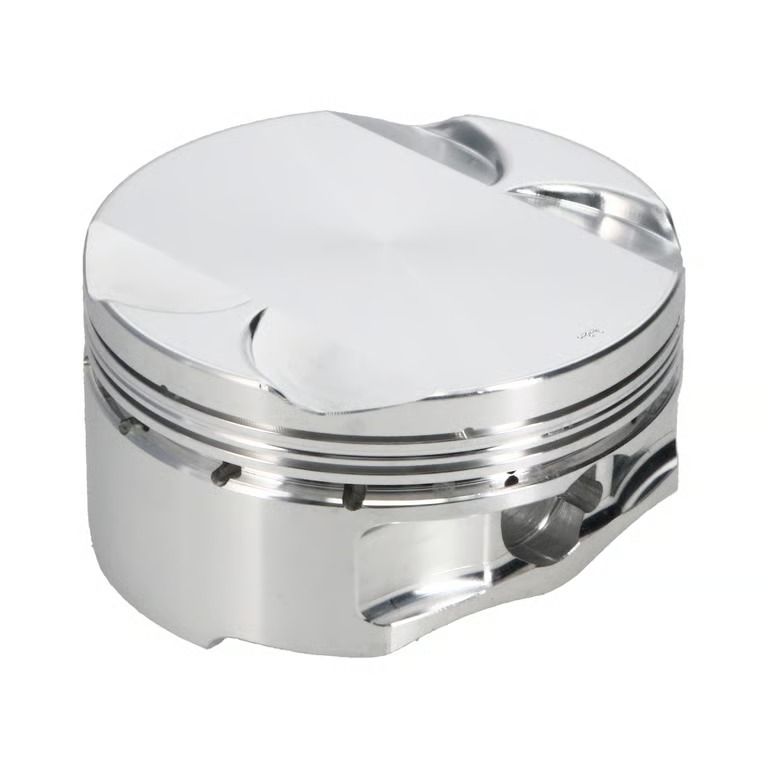

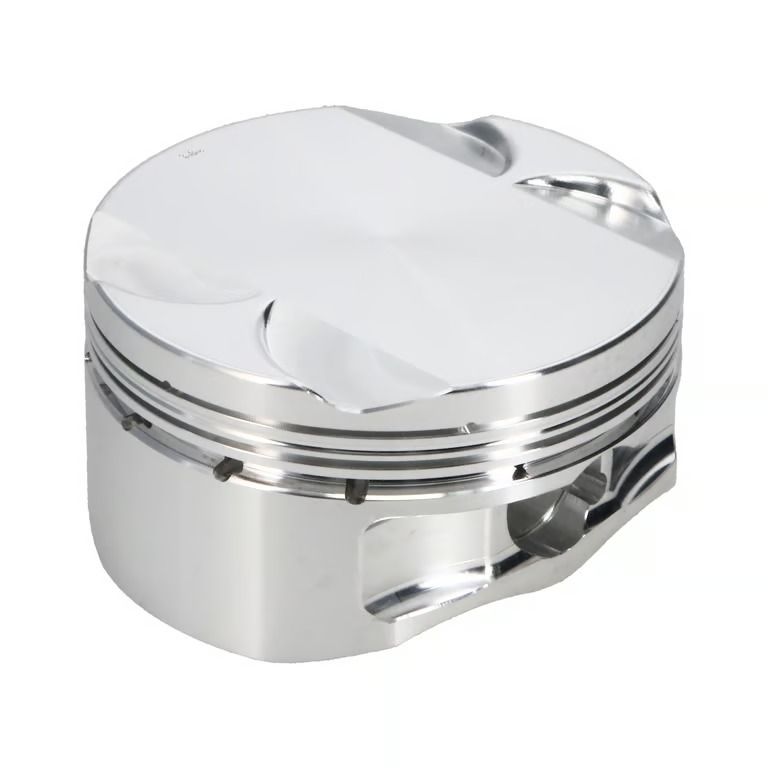

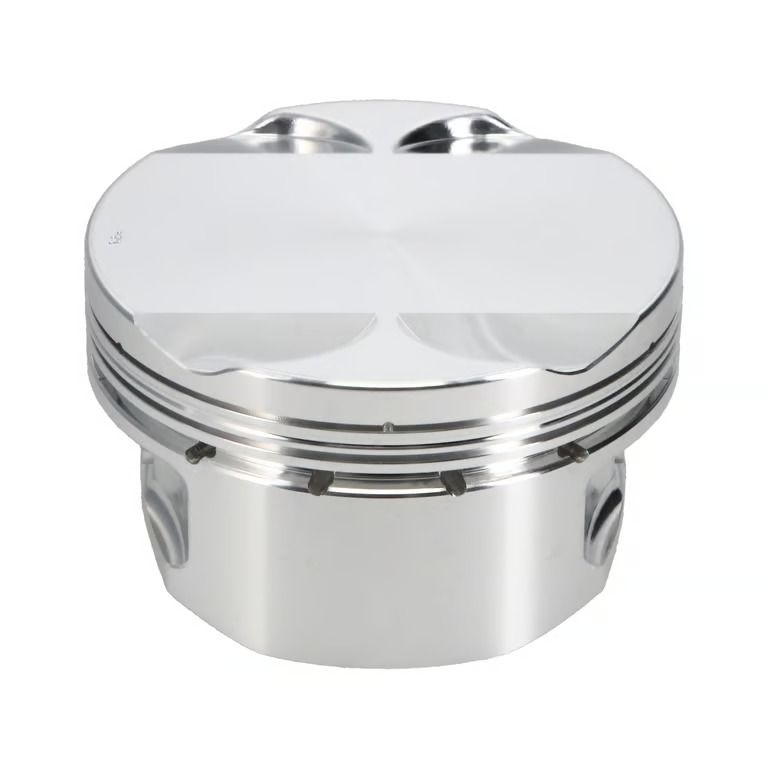

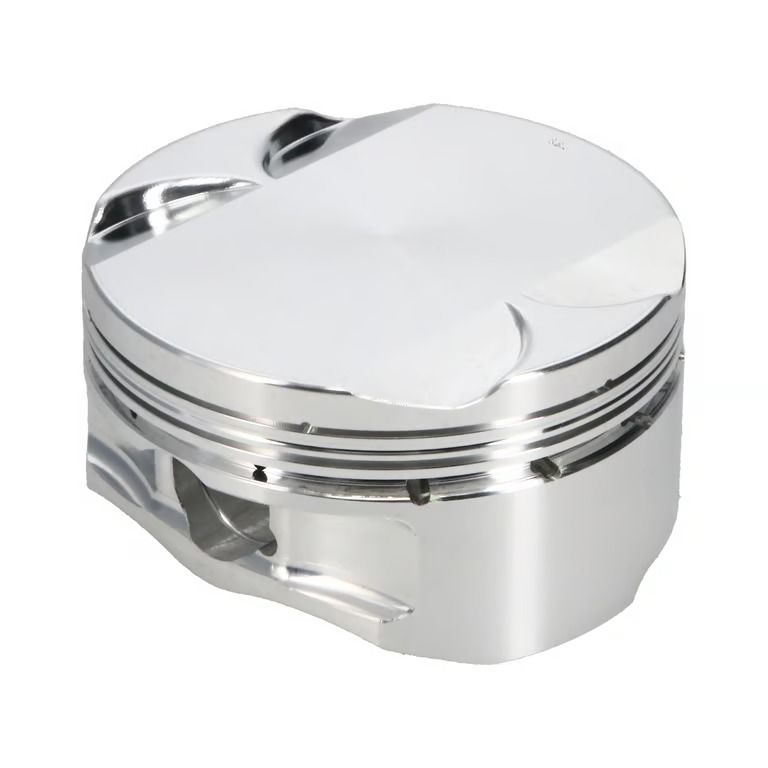

GM Ecotec LE5 Street/Strip Piston Kit - 88.00 mm Bore - 1.092 in. CH, -2.40 CC
GM Ecotec LE5 Street/Strip Piston Kit - 88.00 mm Bore - 1.092 in. CH, -2.40 CC
GM Ecotec LE5 Street/Strip Piston Kit - 88.00 mm Bore - 1.092 in. CH, -2.40 CC
GM Ecotec LE5 Street/Strip Piston Kit - 88.00 mm Bore - 1.092 in. CH, -2.40 CC

GM Ecotec LE5 Street/Strip Piston Kit – 88.00 mm Bore – 1.092 in. CH, -2.40 CC

88.00 mm Bore – -2.40 CC Volume – 1.092 in. Comp Height

    • 3D milling on piston crowns for ready to install finish
    • Offset pins for quiet operation
    • Ratios figured for 88.25mm x .040 head gasket
    • Top ring down dimension: .250″
    • Premium 8620 .155W wrist pins included
    • Standard 1.0mm x 1.2mm x 2.8mm ring package
    • Over-sized valve pockets – for larger than stock valve sizes
    • Valve pocket depth: 0.140″ intake and 0.130″ exhaust
    • 2618 material for High HP/Boost applications
SKU BJBX-10108-4-H Category

$ 1,190.04

Diamond?s years of working alongside top sport compact race teams have helped generate an exceptionally robust line of sport compact pistons. Race proven designs are combined with precision CNC machining, strong 2618 forged aluminum, and premium Trend Performance wrist pins to deliver unmatched durability and performance. Whether you?re looking more power, boost readiness, or chasing records and win lights on the racetrack, Diamond?s mild-to-wild sport compact line is ready to help you get there. Don?t see the exact part you need in our catalog? No problem, we can custom make you a piston to your exact specifications.

Additional Attributes:

GTIN: 00193564437501
Add-On: 09513465
Add-On: H7872250200C
Add-On: 015126-8
Bore Diameter: 88.00
Compression Height: 1.092
Compression Ratio: 10.40
EBAY Category ID: 33623
Engine – Web: Ecotec
Engine Detail – Web: Ecotec LE5
Engine Type: ICE
Engine: Ecotec
Forging Type: Full Round
Industry: Automotive
Make: Chevrolet
Oil Rail Support Included: No
Oil Ring Thickness: 2.80
Piston Quantity: 4
Piston Series: Ecotec LE5
Piston Volume: -2.40
Product Market: Sport Compact
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ring Set Included: Yes
Ring Set Part Number: 09513465
Ring Set Thickness: 1.00 MM x 1.20 MM x 2.80 MM
Rod Length: 5.659
Second Compression Ring Thickness: 1.20
Stroke: 3.858
Top Compression Ring Thickness: 1.00
VP Exhaust Depth: 0.130
VP Intake Depth: 0.140
Wrist Pin Dimensions: 0.787 x 2.250
Wrist Pin Included: Yes
Wrist Pin Length: 2.250
Wrist Pin Outside Diameter: 0.787
Wrist Pin Part Number: H7872250200C
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Part Number: 015126-8

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 16.500 x 12.000 x 4.000 inches
Weight: 10.000 PG

Information complémentaire

Poids4.54 kg
Dimensions16.500 × 12.000 × 4.000 cm
