Fuel Injection Throttle Body

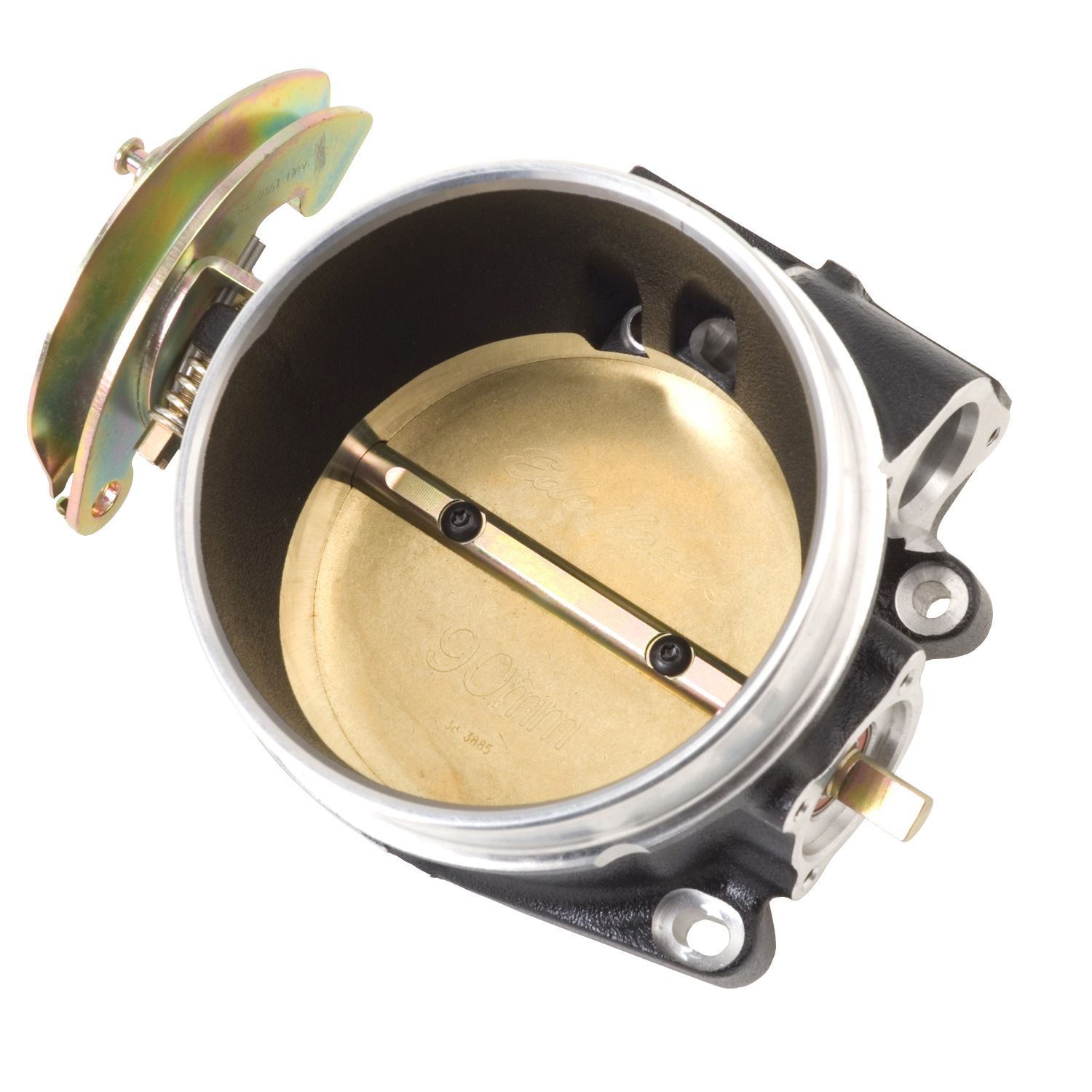

The Edelbrock #386403 Victor LS Series 90mm Throttle Body is Designed for modified Gen III-IV engines in high-performance's street or competition applications. Throttle body #386403 DOES NOT Include a TPS or IAC Motor. Extra idle control is provided with the addition of an idle bleed screw. They have an LS1/LS2 flange that can be mounted on aftermarket LS1 manifolds with a 90mm opening as well as LS2/LS7 factory manifolds. They do not retain the lower water tube and are perfect for enthusiasts who want to use an LS2 or LS7 in an older vehicle with no fly-by-wire throttle. Black Powder Coated Finish

Additional Attributes:

GTIN: 00085347994489
Bore Diameter: 90
Cubic Feet Per Minute Rating: 1100
Finish: Black Powder Coated
Gasket Or Seal Included: Yes
Idle Air Control Motor Included: No
Material: Aluminum
Quantity: Sold Individually
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: Victor LS
Throttle Position Sensor Included: No
Type: Single Blade

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 9 x 5.75 x 3.75 inches
Weight: 2.5 PG
