Fuel Injection System

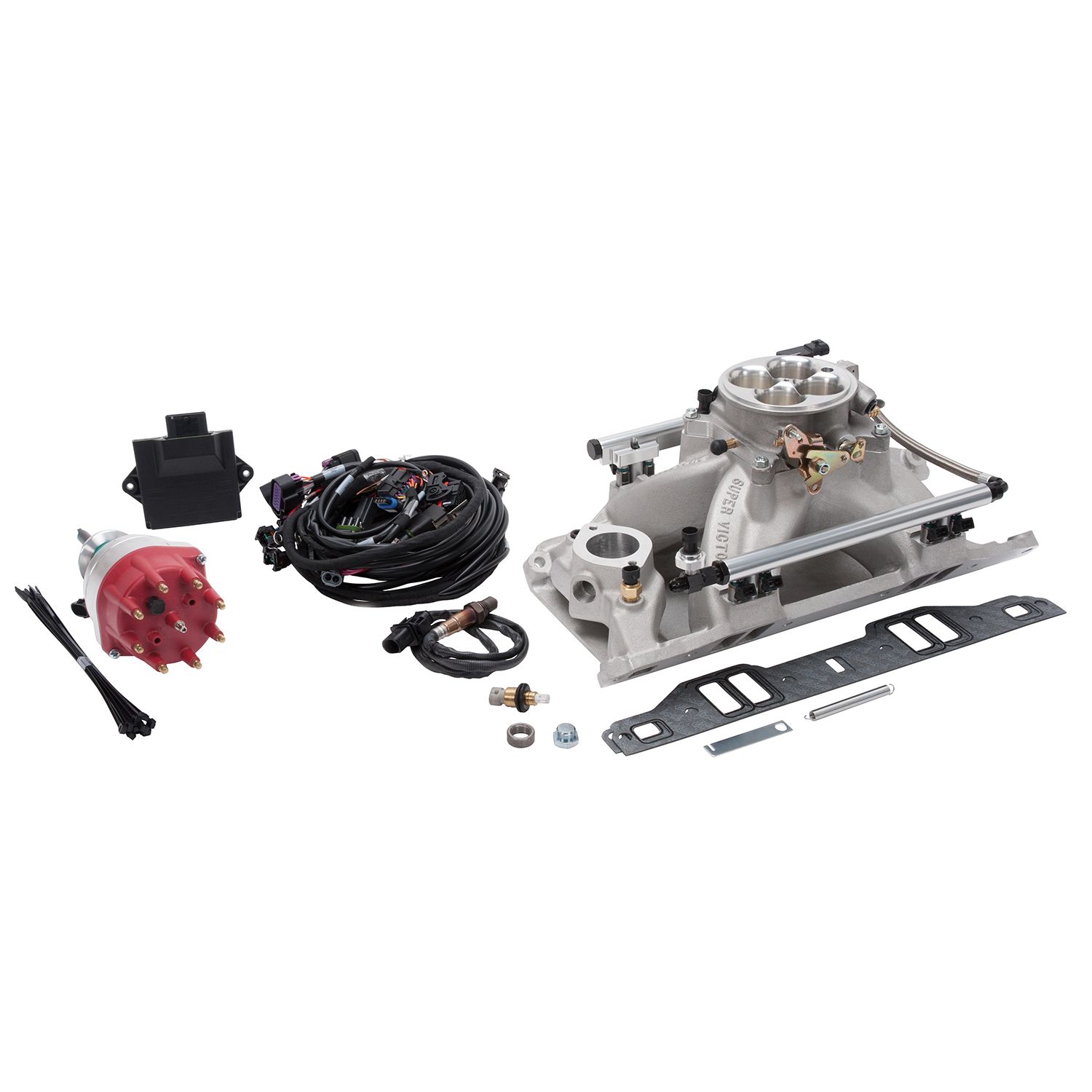

The Edelbrock part #359000 Pro-Flo 4 EFI System for Small-Block Chrysler 318-360 C.I. engines is equipped with the latest technology and features. The EFI system comes complete with a traditional 4150-Style single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android based smart phone or tablet. Please Note "Kit 359000 DOES NOT include a 7" Android tablet". If you don't have a compatible device, then we also offer kits that include a 7" Android tablet with the E-Tuner 4 app installed. Pro-Flo 4 does not require laptop tuning. PLEASE NOTE: #359000 will only work on 318 CID engines when using 340-360 cylinder heads.

Additional Attributes:

GTIN: 00085347999903
Bore Diameter: 1.75
Distributor Cap Included: Yes
Finish: Satin
Flange Type: 4150
Fuel Injector Type: 35 lb/hr
Fuel Pressure Port: 1/8-27 NPT
Gasket Or Seal Included: Yes
Idle Air Control Motor Included: Yes
Manifold Height: 6.30
Maximum Horsepower: 550
Quantity: Kit
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
System Type: Traditional 4150-Style Kit
Throttle Body Type: 4 Barrel
Wire Harness Included: Yes
Wiring Harness Included: Yes

Extended Information:

Emissions : 2
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 30.1875 x 25.25 x 10.3125 inches
Weight: 45 PG
