Fuel Injection System

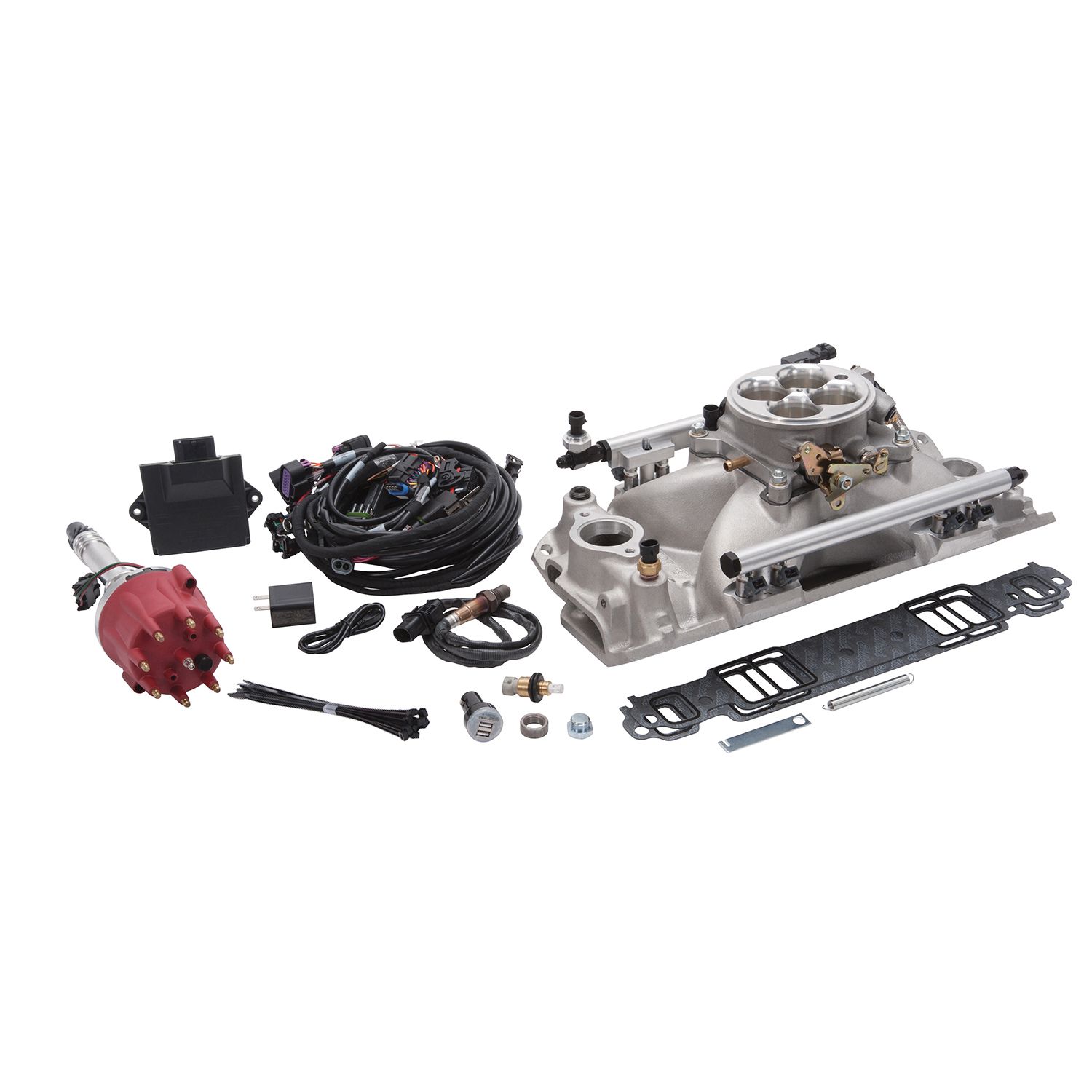

The Edelbrock Pro-Flo 4 EFI Kit W/O Tablet #356900 for 1986-earlier small-block Chevy engines is a fully sequential multi-port injection system designed with a fuel injector positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Super Victor single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses and ECU. This kit does not include the hand-held tuner. The Super Victor SBC manifold is designed with a larger cross-sectional area in the plenum and large runners for high-horsepower and/or large cubic-inch applications. This kit uses 42 lb/hr injectors and is rated for 675 horsepower at 58 PSI of fuel pressure. This kit does not include the hand-held tablet. For the complete kit with Android-based tablet and E-Tuner Calibration app, order kit #35690.

Additional Attributes:

GTIN: 00085347890170
Bore Diameter: 1.75
Distributor Cap Included: Yes
Finish: Satin
Flange Type: 4150
Fuel Injector Type: 42 lb/hr
Fuel Pressure Port: 1/8-27 NPT
Gasket Or Seal Included: Yes
Idle Air Control Motor Included: Yes
Manifold Height: 4.58
Maximum Horsepower: 675
Quantity: Kit
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
System Type: Traditional 4150-Style Kit
Throttle Body Type: 4 Barrel
Wire Harness Included: Yes
Wiring Harness Included: Yes

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 30.1875 x 25.25 x 10.3125 inches
Weight: 43 PG
