Fuel Injection Pressure Regulator

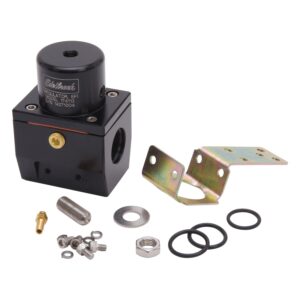

The Edelbrock 1728 fuel pressure regulator is machined from aircraft quality aluminum for those who demand the best. Edelbrock EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection. Regulator part #1728 has a black and clear finish with -6 inlet, outlet and return ports.

Additional Attributes:

GTIN: 00085347017287
Bypass Size: -6 an
End 1 Attachment Type: Threaded
End 1 Connector Quantity: 2
End 1 Diameter: -6 an
End 1 Gender: Female
End 2 Attachment Type: Threaded
End 2 Connector Quantity: 1
End 2 Gender: Female
End 2 Size: -6 an
Flow Rate: 80
Fuel Type: Gas, Ethanol, Methanol, E85
Maximum Pressure: 35-90
Quantity: Sold Individually
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Type: Return Style

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available Only While Supplies Last

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 4 x 4.5 x 3 inches
Weight: 1 PG
