Fuel Injection Fuel Feed and Return Pipe Assembly

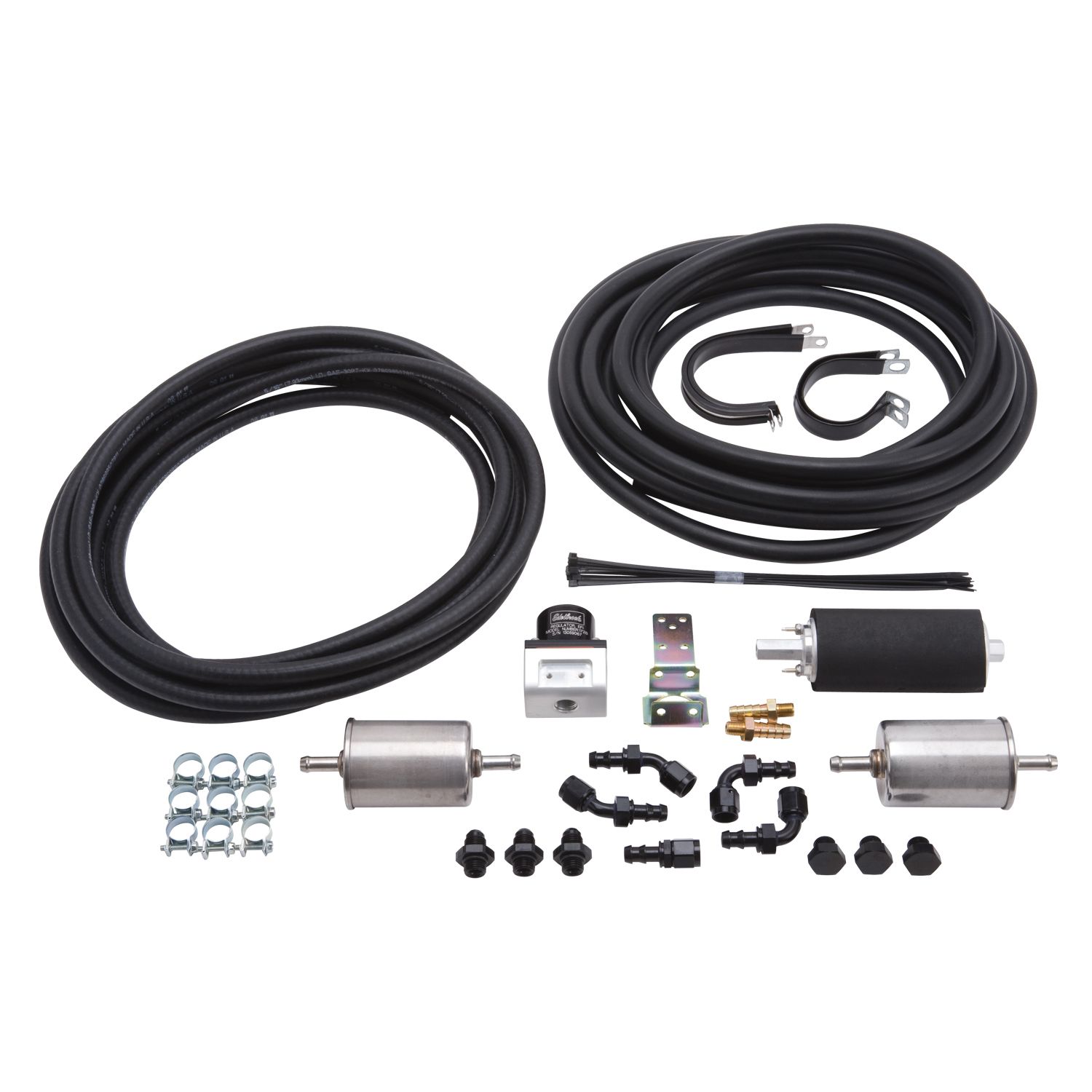

Edelbrock Adjustable Return-Style EFI Fuel Kit #3604 includes everything needed to upgrade a carbureted fuel system to a high pressure EFI system, excluding the fuel tank. This kit is a return-style and will complete the fuel system loop by returning unused fuel to the tank. Kit includes a 67 GPH (215 liter/hr) fuel pump, adjustable regulator (35-90 PSI), filter, Russell Twist-Lok hose, hose ends, mounting brackets and hardware. A baffled fuel tank is recommend to prevent fuel starvation. This system is rated for engines up to 600 HP, when used with an Edelbrock EFI system.

Additional Attributes:

GTIN: 00085347036042
Filter Included: Yes
Fittings Included: Yes
Fuel Pump Included: Yes
Hose Included: Yes
Hose Length: 20
Maximum Flow Rating: 67 GPH/255 LPH
Maximum Horsepower: 600 Supported
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Pressure Rating: 35-90
Quantity: Kit
Regulator Included: Yes
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Type: Return Style

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 17.125 x 14.625 x 5.594 inches
Weight: 9.4 PG
