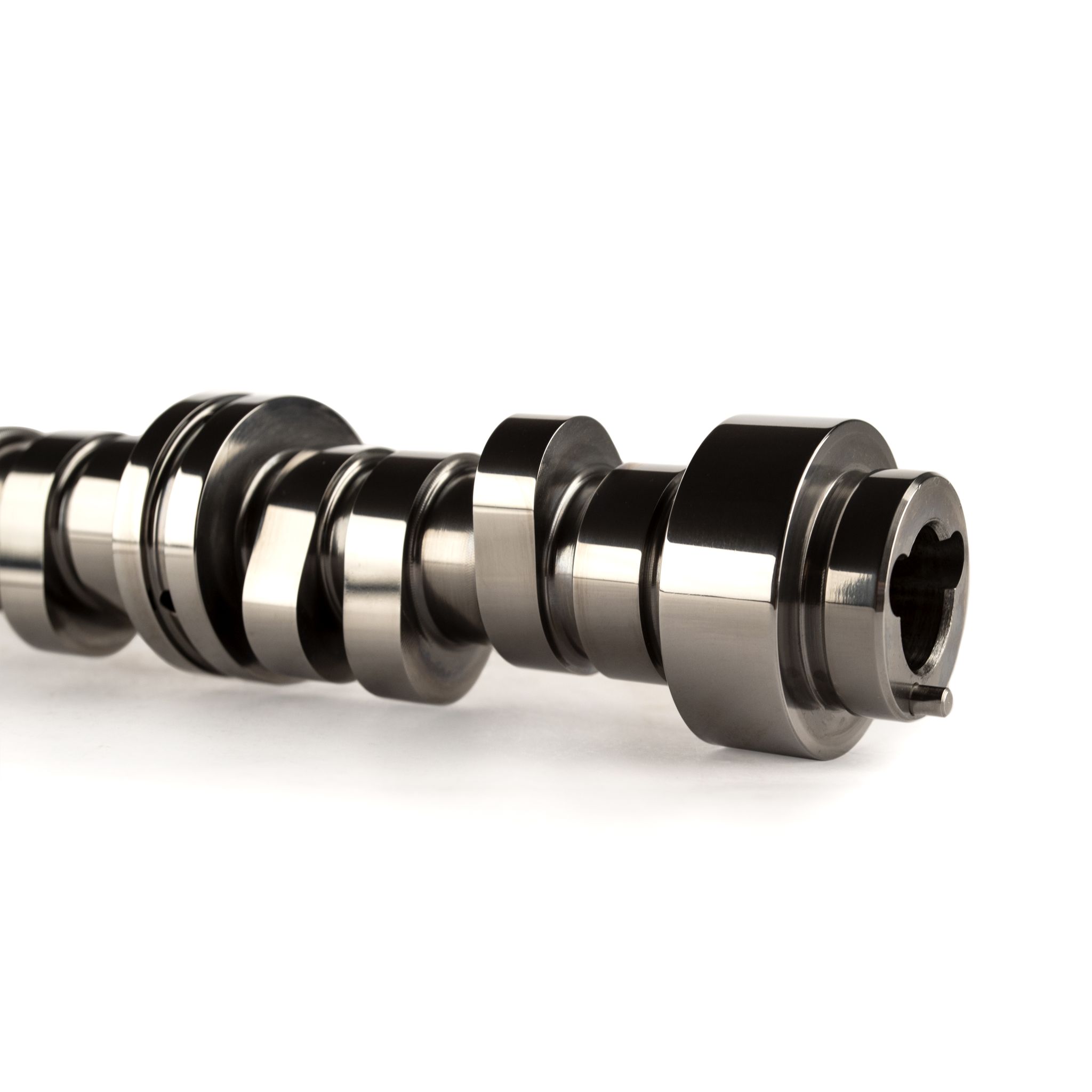

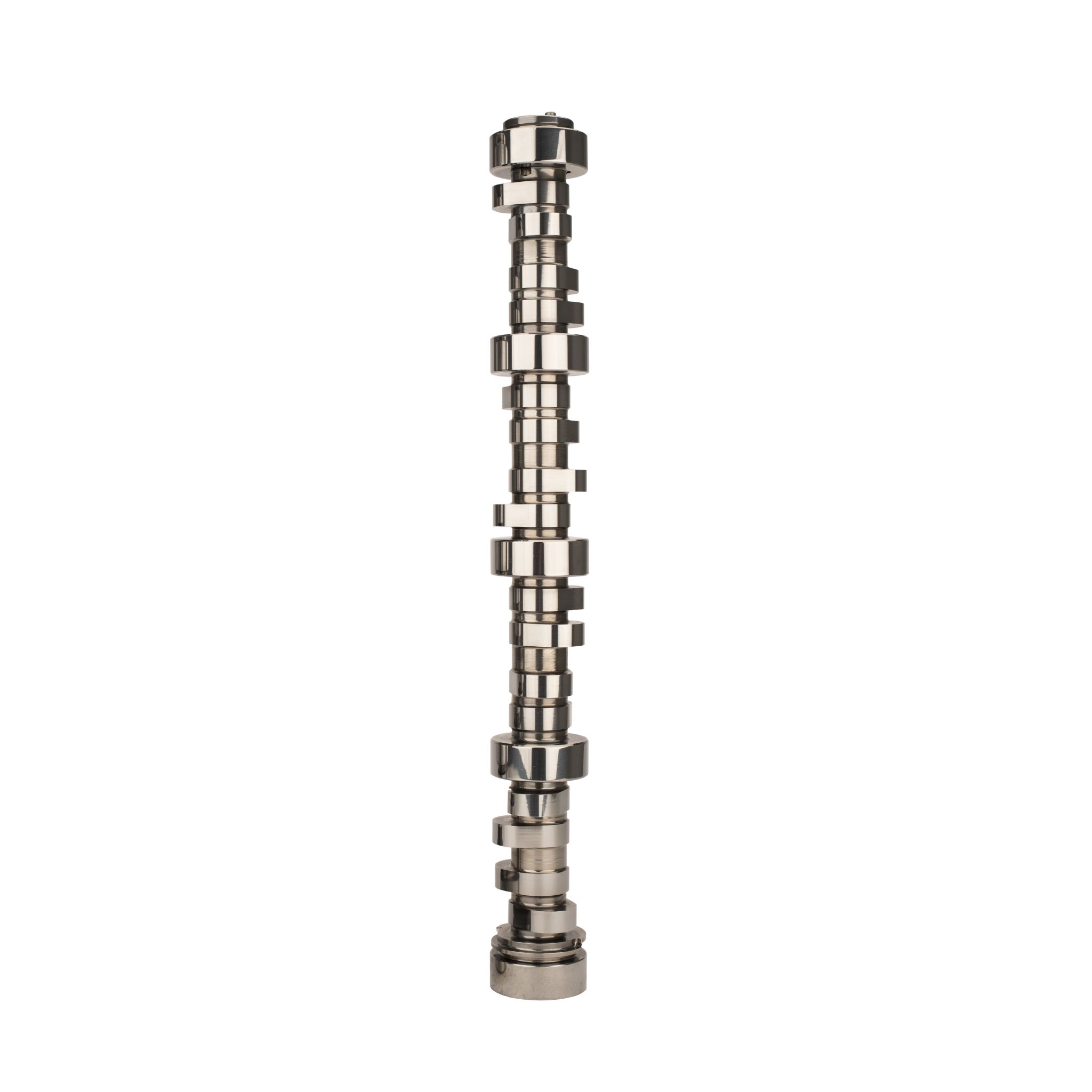

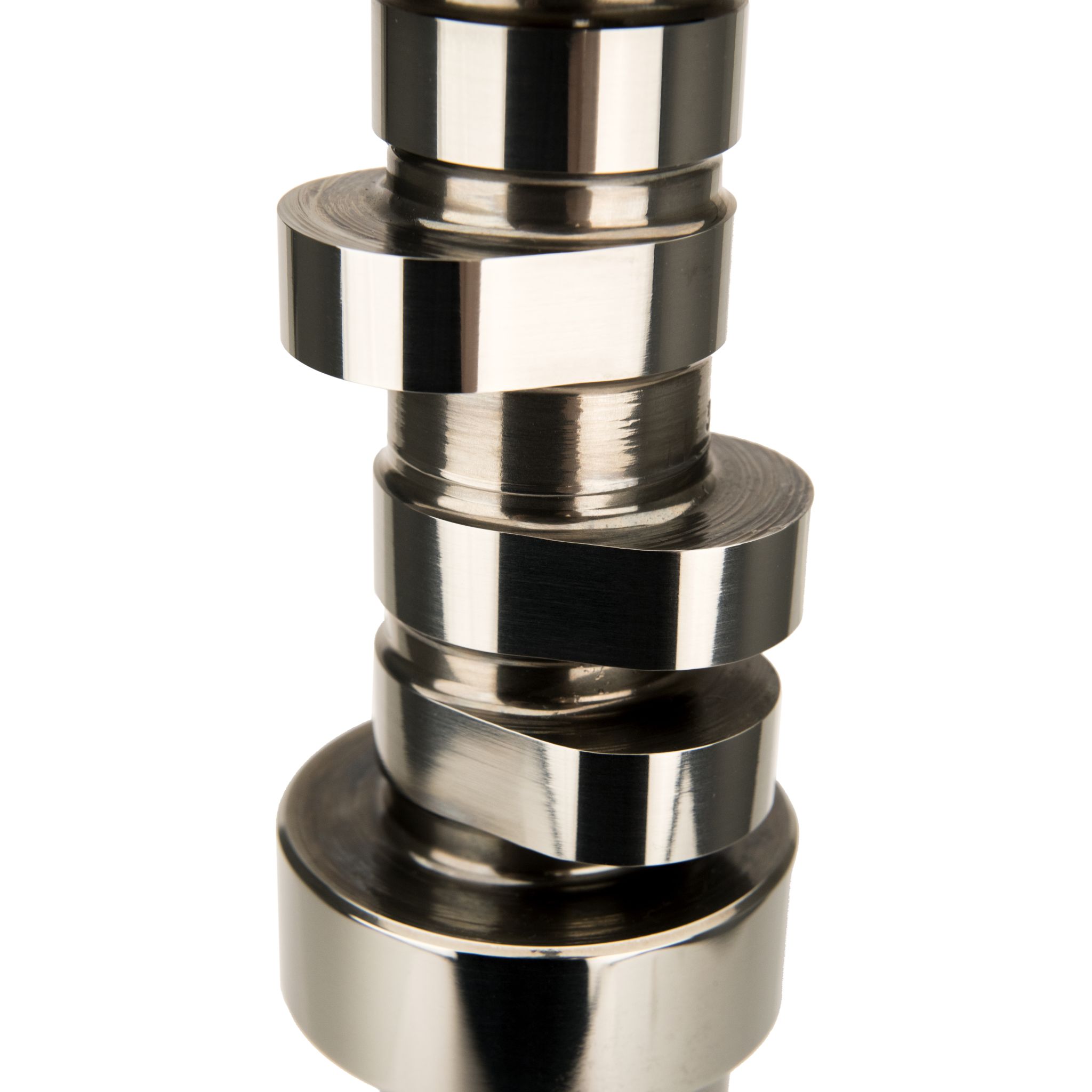

FSL AFM 208/220 D, 206/218 N Hydraulic Roller Cam for GM LS GEN IV

Additional Attributes:

GTIN: 00036584388937
Grind Number: L99E260
Advertised Exhaust Duration Deactivation Cylinders: 269
Advertised Exhaust Duration Non-Deactivation Cylinders: 260
Advertised Intake Duration Deactivation Cylinders: 282
Advertised Intake Duration Non-Deactivation Cylinders: 270
Amazon ASIN: N/A
Assembly Lubricant Included: No
Basic Operating RPM Range: 1600-6800
C.A.R.B. E.O. Number: D-279-12
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: C.A.R.B. EO Issued
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam Type: Hydraulic Roller
Camshaft Gear Attachment: Single-Bolt
Camshaft Material: Billet Steel
Camshaft Series: FSL
Engine Family: GM GEN IV LS Single-Bolt w/ VVT and AFM 8 Cylinder (2007-2015)
Exhaust Duration at .050 inch Lift Deactivation Cylinders: 220
Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 218
Exhaust Valve Lift Deactivation Cylinders: 0.541
Exhaust Valve Lift Non-Deactivation Cylinders: 0.541
Grind Number: L99E260
Intake Duration at .050 Inch Lift Deactivation Cylinders: 208
Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 206
Intake Valve Lift Deactivation Cylinders: 0.541
Intake Valve Lift Non-Deactivation Cylinders: 0.541
Lifter Type: Hydraulic Roller
Lifters Included: No
Lobe Separation: 117
Recommended Cam Install Kit: 5623
Valve Springs Required: 26906

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24.5 x 2.75 x 3 inches
Weight: 11.1 PG
