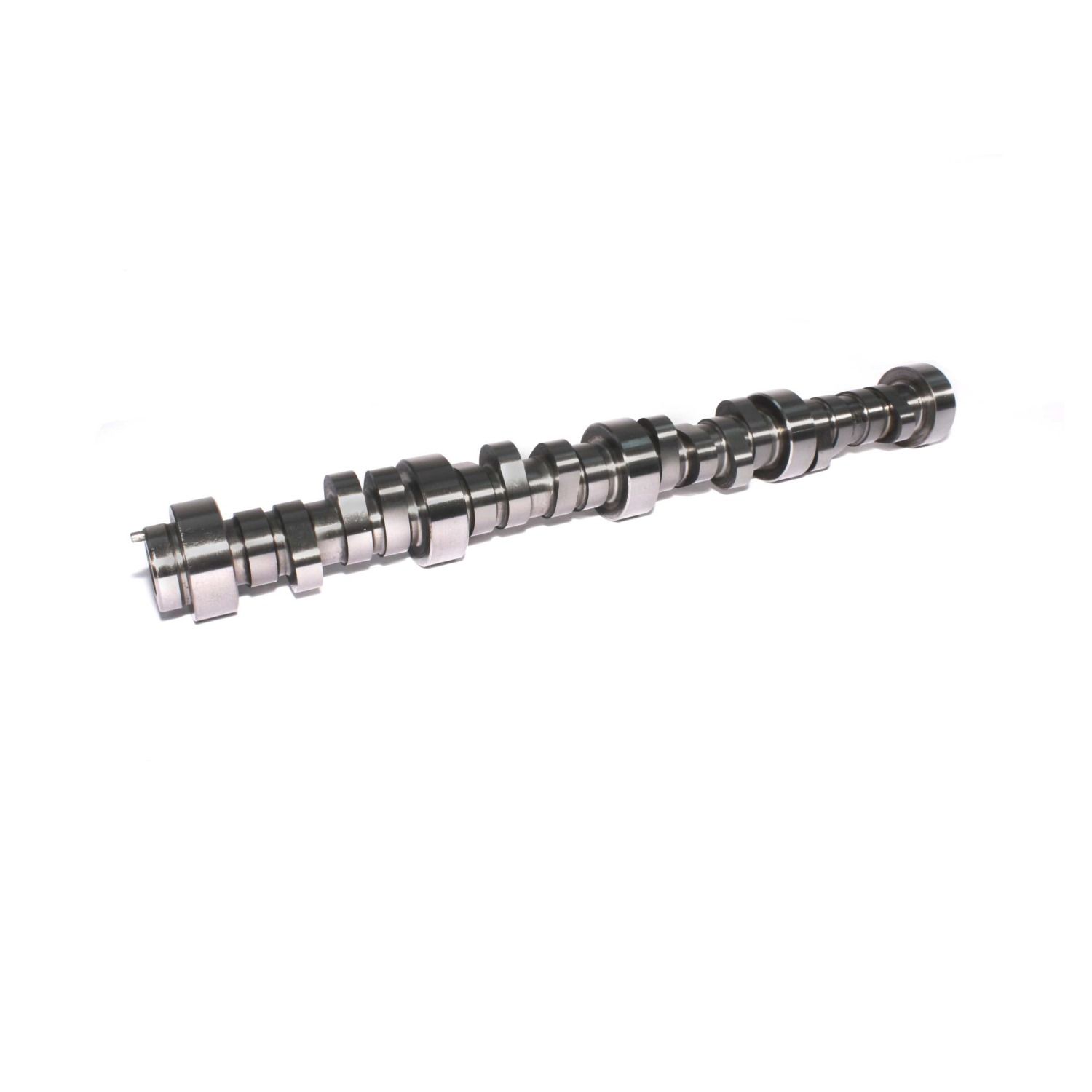

FSL 208/220 D, 206/218 N Hydraulic Roller Cam for GM LS2/LS3 GEN IV

without requiring a valve spring upgrade or tuning. The best part of these new FSL cams is the incredible power gains that come without the risk of non-compliance with emissions regulations.

Additional Attributes:

GTIN: 00036584405580
Grind Number: LAFME260
Advertised Exhaust Duration Deactivation Cylinders: 269
Advertised Exhaust Duration Non-Deactivation Cylinders: 260
Advertised Intake Duration Deactivation Cylinders: 282
Advertised Intake Duration Non-Deactivation Cylinders: 270
Assembly Lubricant Included: No
Basic Operating RPM Range: 1600-6800
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam Type: Hydraulic Roller
Camshaft Gear Attachment: Single-Bolt
Camshaft Material: Billet Steel
Camshaft Series: FSL
Engine Family: Gen IV AFM ONLY EO Camshafts
Exhaust Duration at .050 inch Lift Deactivation Cylinders: 220
Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 218
Exhaust Valve Lift Deactivation Cylinders: 0.541
Exhaust Valve Lift Non-Deactivation Cylinders: 0.541
Grind Number: LAFME260
Intake Duration at .050 Inch Lift Deactivation Cylinders: 208
Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 206
Intake Valve Lift Deactivation Cylinders: 0.541
Intake Valve Lift Non-Deactivation Cylinders: 0.541
Lifter Type: Hydraulic Roller
Lifters Included: No
Lobe Separation: 117
Recommended Cam Install Kit: 5623
Valve Springs Required: 26906
VVT Limiter Required?: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24.5 x 3 x 2.75 inches
Weight: 10 PG
