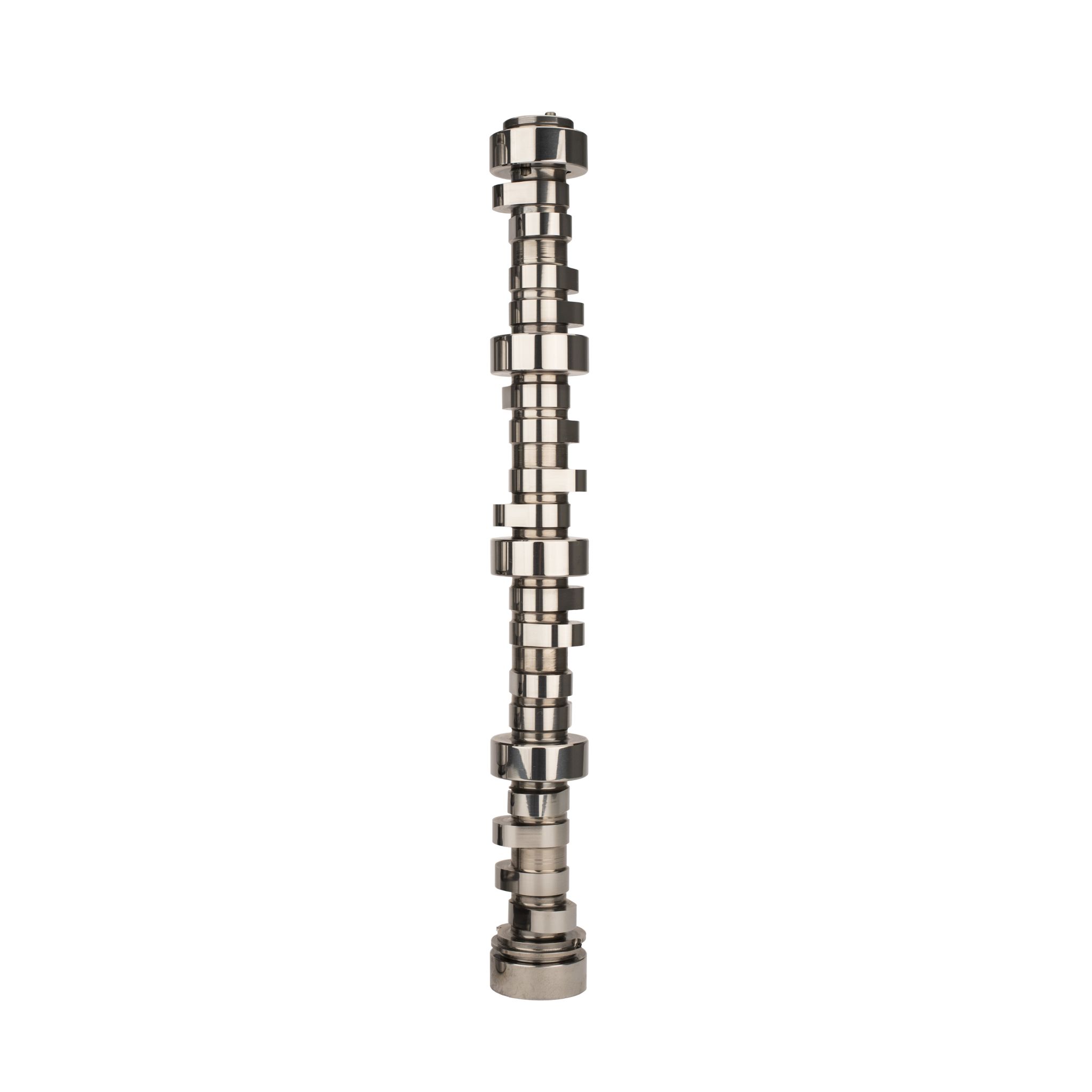

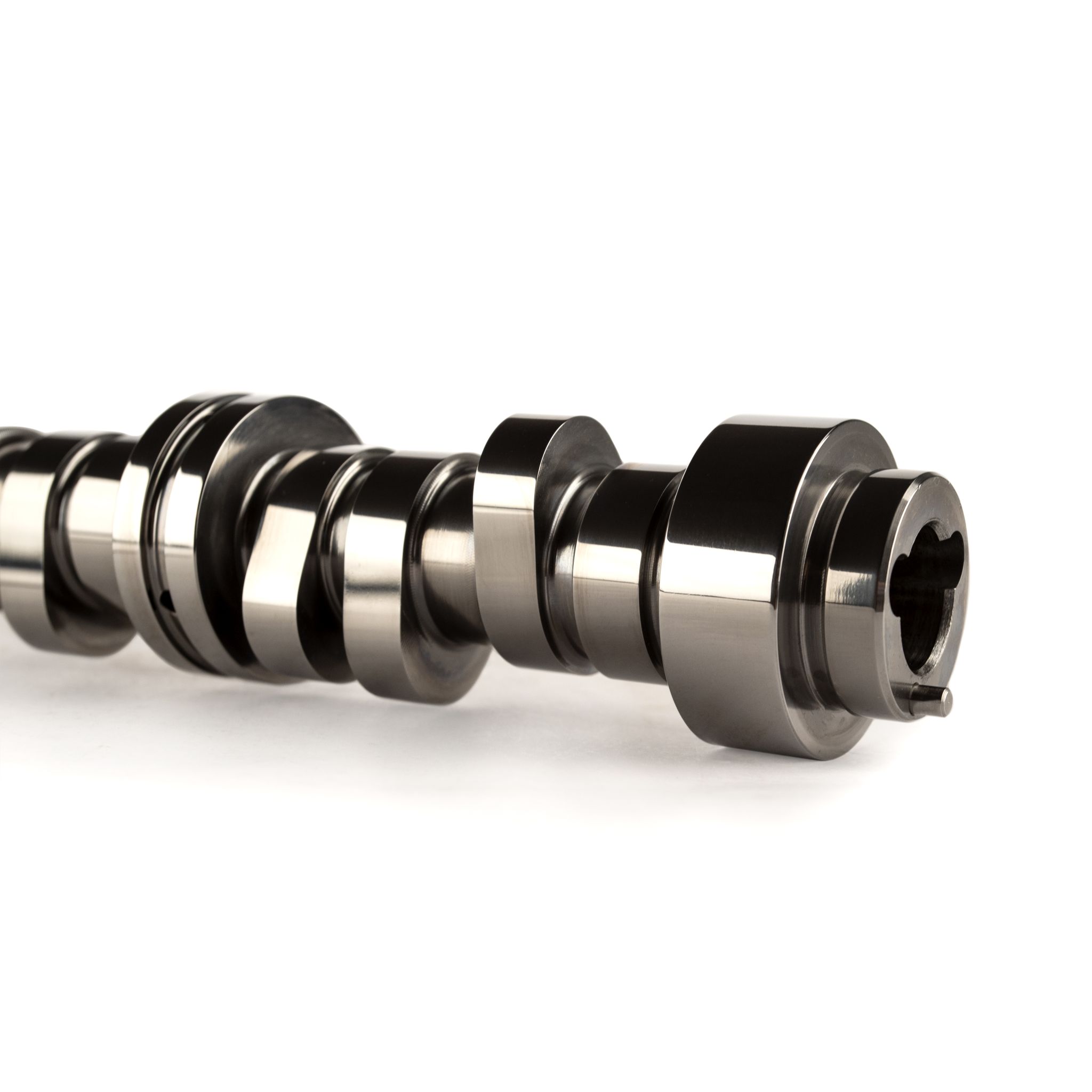

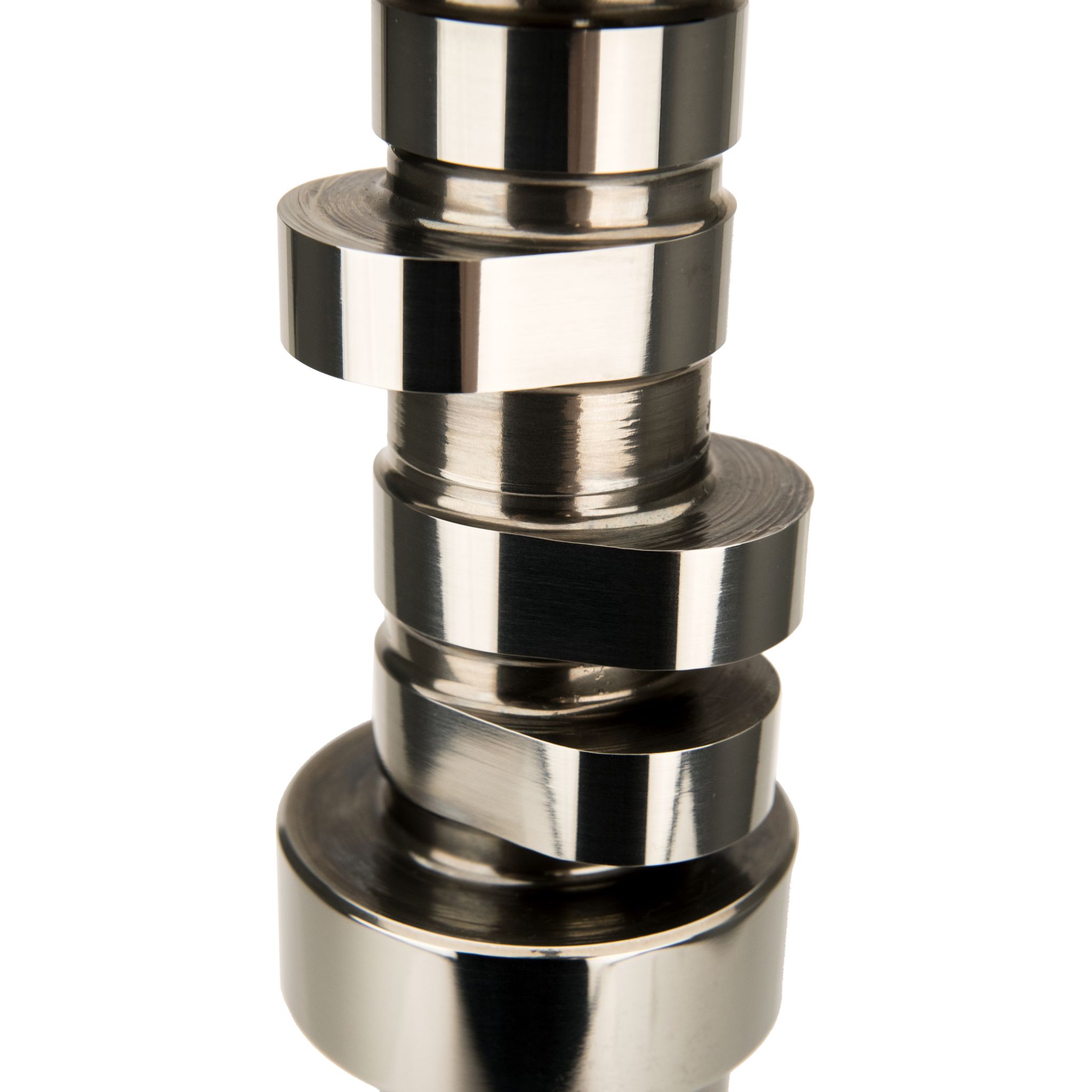

FSL 208/220 D, 206/214 N Hydraulic Roller Cam for GM LS GEN IV

Additional Attributes:

GTIN: 00036584373131
Grind Number: L99LX266
Advertised Exhaust Duration Deactivation Cylinders: 282
Advertised Exhaust Duration Non-Deactivation Cylinders: 266
Advertised Intake Duration Deactivation Cylinders: 274
Advertised Intake Duration Non-Deactivation Cylinders: 266
Amazon ASIN: B07GTVJGYD
Assembly Lubricant Included: No
Basic Operating RPM Range: 1,700-6,400
C.A.R.B. E.O. Number: D-279-12
C.A.R.B. E.O.: D-279-11
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: C.A.R.B. EO Issued
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Camshaft Series: FSL – 50 State Legal
Engine Family: GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015)
Exhaust Duration at .050 inch Lift Deactivation Cylinders: 220
Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 214
Exhaust Valve Lift Deactivation Cylinders: 0.541
Exhaust Valve Lift Non-Deactivation Cylinders: 0.541
Grind Number: L99LX266
Intake Duration at .050 Inch Lift Deactivation Cylinders: 208
Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 206
Intake Valve Lift Deactivation Cylinders: 0.541
Intake Valve Lift Non-Deactivation Cylinders: 0.541
Lifters Included: No
Lobe Separation: 118
Recommended Beehive Valve Spring Kit(s): 26918CS-KIT, 26918TS-KIT, 26918TI-KIT
Recommended Cathedral Port Rocker Arms: 1477-16, 19024-16
Recommended Dual Valve Spring Kit(s): 26925TS-KIT, 26925TI-KIT
Recommended Phaser Limiter: 5460
Recommended Pushrods: 7955-16, 8406-16
Recommended Rectangule Port Rocker Arms: 1478-16, 19028-16
Usage: Street/Performance
Valve Springs Required: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24.5 x 2.75 x 3 inches
Weight: 11.1 PG
