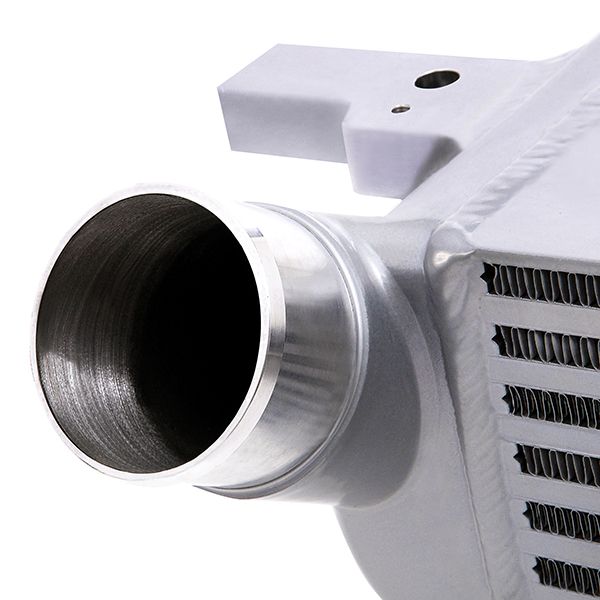

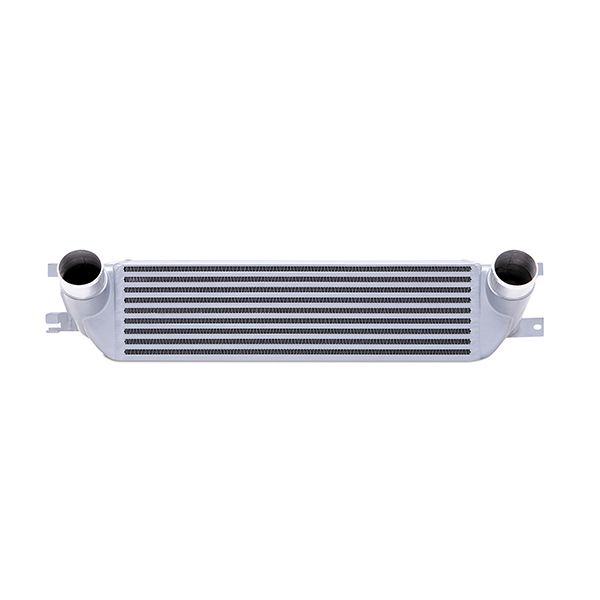

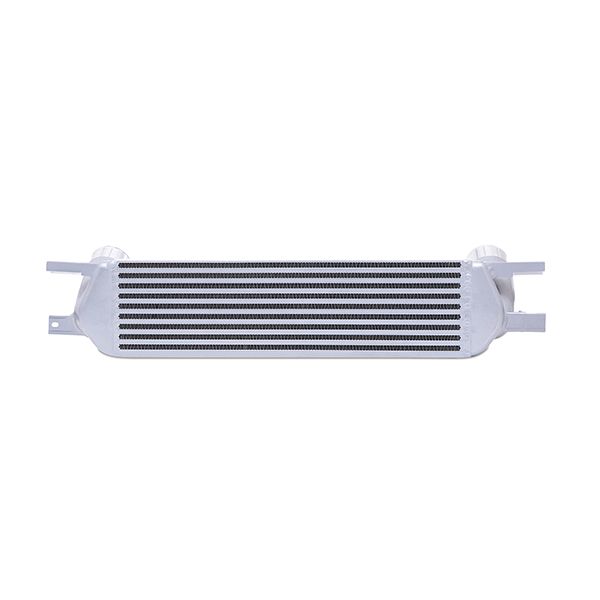

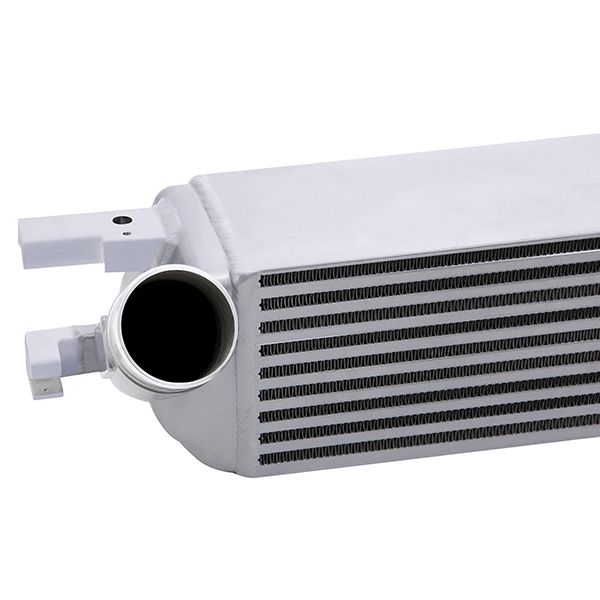

Ford Mustang EcoBoost Performance Intercooler, 2015-2023 Silver

For the first time in over 30 years, the iconic Ford Mustang is available with a turbocharged 4-cylinder engine producing over 300 horsepower! Turbocharged 4-cylinder engines produce extremely hot charge air temperatures very quickly within a few laps on the track or aggressive street driving and stock tube-and-fin intercoolers also heat soak very easily. Mishimoto has developed a highly efficient bar-and plate intercooler engineered specifically for the Mustang EcoBoost to keep your air intake temperatures consistently low, run after run. This intercooler is a direct-fit unit requires no modification to your Mustang. The Engineers at Mishimoto designed this intercooler to fit with the stock active grille shutters, as well as prevent airflow blockage to the radiator and AC condenser by mounting it in the stock location. This cooler is constructed with cast end tanks that are CFD tested for maximum airflow and includes an in-tank air diverter, on the hot side, to provide optimal flow through the intercooler. The Mustang EcoBoost Performance Intercooler reduces intake temperatures by 35 F (19.45 C) with minimal pressure loss, has a 25-percent increase in core volume and 165-percent increase in external fin surface area, providing maximum cooling for your Mustang. This intercooler features precision TIG-welding and is available with a Sleek Silver or Stealth Black finish. As with all our products, the Mishimoto Mustang EcoBoost Performance Intercooler includes the Mishimoto Lifetime Warranty.

Additional Attributes:

GTIN: 00748354019063
CARB EO Number: D-759
Install Difficulty: 3
OptionLabel: Silver
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2015-2023 Ford Mustang EcoBoost
SellingPoint02: 35 F (19.45 C) reduction in AIT
SellingPoint03: 58-percent increase in core size
SellingPoint04: 25-percent increase in internal core volume and 165-percent increase in external fin surface area
SellingPoint05: Cast end tanks and in-tank diverter provide optimal flow through intercooler
SellingPoint06: Stock location prevents airflow blockage to radiator and AC condenser
SellingPoint07: Installs in under 2 hours without having to remove front bumper cover
SellingPoint08: Retains stock active grille shutters, maintaining ideal aerodynamics when cooling demands are lower
SellingPoint09: Bar-and-plate construction
SellingPoint10: All-aluminum, TIG-welded
SellingPoint11: Available in Sleek Silver or Stealth Black
SellingPoint12: Fits with the Mishimoto Mustang EcoBoost Oil Cooler Kit
SellingPoint13: Mishimoto Lifetime Warranty
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2015-2023 Ford Mustang EcoBoost
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: S550
TechSpec Core Height (in): 5.75
TechSpec Core Length (in): 21.06
TechSpec Core Thickness (in): N/A
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: 2.3L EcoBoost
TechSpec Includes: (1) Mishimoto Intercooler–(1) M6 x 1.0 x 20 Flange Bolt–(1) M4 x 0.7 x 12 Button Head Bolt–(1) M4 Lock Washer–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.56
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: 550
TechSpec Note: N/A
TechSpec Outlet (in): 2.56
TechSpec Overall Height (in): 6.8
TechSpec Overall Length (in): 30.3
TechSpec Overall Width (in): 8
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 34 x 9 x 10 inches
Weight: 20 PG
