Ford Fiesta ST Performance Intercooler, 2014-2017 Gold

Many prototypes entered, but only one came out on top. The engineers went through multiple different designs for this 2014-2017 Fiesta ST intercooler, weighing the benefits and downfalls of each. The final design consists of a tube-and-fin style intercooler in order to allow airflow to the radiator and reduce overall weight. The core size is 51-percent larger than stock, and also provides a 25-percent increase in internal core volume. During testing, this 2014-2017 Fiesta ST intercooler dropped intake temperatures by a huge 26 F! This kit is designed to be a direct fit, and fits with the stock or Mishimoto 2014-2017 Fiesta ST Intercooler Pipes. Combine the two, and you'll have a complete high-performance charged air system. This 2014-2017 Fiesta ST intercooler kit includes air diversion plates to channel air through the cooler for maximum efficiency. The all-aluminum, TIG-welded construction is of the highest quality, and like all Mishimoto 2014-2017 Fiesta ST parts, it is backed by the Mishimoto Lifetime Warranty!

Additional Attributes:

GTIN: 00748354027532
CARB EO Number: D-759-6
Install Difficulty: 3
OptionLabel: Gold
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct-fit for the 2014-2019 Ford Fiesta ST
SellingPoint02: 26F (15C) reduction in AIT
SellingPoint03: 51-percent increase in core size
SellingPoint04: 25-percent increase in internal core volume and 226-percent increase in external fin surface area
SellingPoint05: Includes air diversion plates to direct air through the intercooler core for maximum efficiency
SellingPoint06: Stock location prevents airflow blockage to radiator and AC condenser
SellingPoint07: Tube and fin construction for added weight reduction over bar and plate cores
SellingPoint08: All-aluminum, TIG-welded
SellingPoint09: Available in Sleek Silver or Stealth Black or Bold Gold
SellingPoint10: Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
SellingPoint11: Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
SellingPoint12: Mishimoto Lifetime Warranty
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2014-2019 Ford Fiesta ST
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: B3
TechSpec Core Height (in): 6.35
TechSpec Core Length (in): 28.8
TechSpec Core Thickness (in): 2.59
TechSpec Core Type: Tube-and-Fin
TechSpec Engine Codes: 1.6L Ecoboost

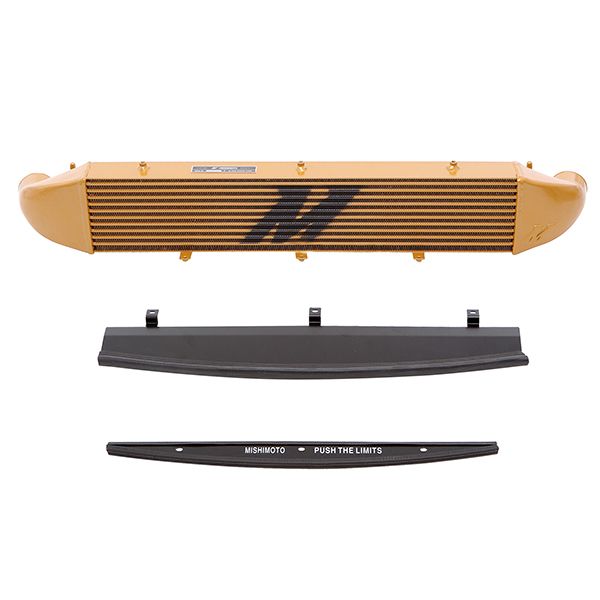

TechSpec Includes: (1) Mishimoto Intercooler–(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal–(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.55
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.–Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
TechSpec Outlet (in): 2.55
TechSpec Overall Height (in): 6.36
TechSpec Overall Length (in): 40.1
TechSpec Overall Width (in): 6.15
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 13.4

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 48 x 10.8 x 12.4 inches
Weight: 38.72 PG
