Ford F-150 3.5L EcoBoost Performance Intercooler Kit, 2017-2021

Mishimoto has developed a direct-fit 2017-2021 3.5L F-150 EcoBoost Intercooler and Pipe kit that allows owners to maximize the performance potential of their F-150 or second-gen Raptor. Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore? technology. The larger volume of our pipes allows your 2017-2021 3.5L EcoBoost to breathe free and make the most of the its two turbochargers. DuraCore? boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination. Combine our piping with the Mishimoto 2015-2021 F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. Our intercooler increases core volume by 77-percent over stock and external fin surface area by 163-percent. With cast end tanks and bar-and-plate construction, our intercooler combines strength and power for an all-around upgrade over stock. This kit is available with a black or silver intercooler and wrinkle black or polished pipes. As with all Mishimoto products, this 2017-2021 3.5L F-150 EcoBoost Intercooler and Pipe kit is backed by our Lifetime Warranty.

Additional Attributes:

GTIN: 00811580033889
Install Difficulty: N/A
OptionLabel: Silver Intercooler, Polished Pipes
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2017+ Ford F-150 3.5L EcoBoost
SellingPoint02: Increased intercooler pipe volume allows for better flow and power potential
SellingPoint03: Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
SellingPoint04: Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
SellingPoint05: Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
SellingPoint06: Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
SellingPoint07: 10F (5.5C) reduction in intake air temp
SellingPoint08: 77-percent increase in intercooler internal core volume
SellingPoint09: 163-percent increase in external fin surface area
SellingPoint10: All-aluminum, TIG-welded construction
SellingPoint11: Fits with stock intercooler fans without modification
SellingPoint12: Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
SellingPoint13: Mishimoto Lifetime Warranty
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2017+ Ford F-150 3.5L V6 EcoBoost–2017+ Ford Raptor 3.5L V6 EcoBoost
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 9.4
TechSpec Core Length (in): 19.6
TechSpec Core Thickness (in): 4.7
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: 3.5L V6 EcoBoost

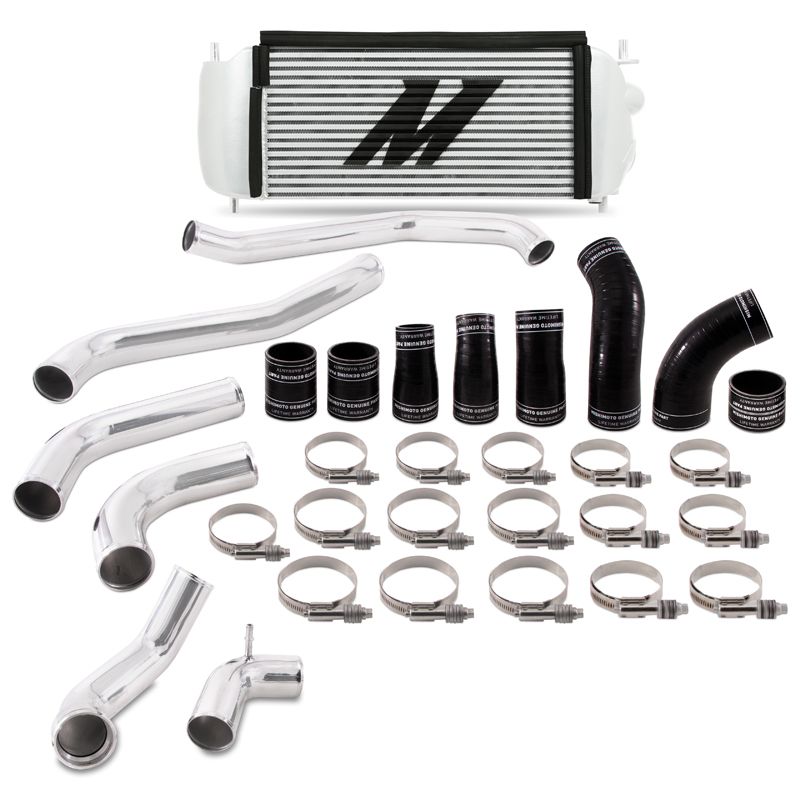

TechSpec Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim–(1) Bypass Valve Bracket–(1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange–(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing–(4) Aluminum Hot-Side Intercooler Pipes–(8) Silicone Boots w/ DuraCore Technology–(16) Constant-Tension Worm Gear Clamps–Mounting Hardware–Bypass Valve Hardware–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.5
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 3
TechSpec Overall Height (in): 9.5
TechSpec Overall Length (in): 29
TechSpec Overall Width (in): 7
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 49 x 20 x 38 inches
Weight: 224.34 PG
