Ford F-150 3.5L EcoBoost Hot-Side Intercooler Pipe Kit, 2017-2021

Mishimoto has developed a direct-fit 2017-2021 3.5L F-150 EcoBoost Hot-Side Intercooler Pipe kit that allows owners to maximize the performance potential of their F-150 or second-gen Raptor. Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore? technology. The larger volume of our hot-side pipes allows your 2017-2021 3.5L F-150 EcoBoost to breathe freely and make the most of the its two turbochargers. DuraCore? boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination. Available with a sleek polished finish or powder-coated in stealthy wrinkle black, these pipes are a great addition to every 2017-2021 F-150 EcoBoost or second-gen Raptor from the show to the track. Combine this kit with the Mishimoto 2017-2021 3.5L Cold-Side Pipe and Mishimoto 2015+ F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. As with all Mishimoto products, this 2017-2021 3.5L F-150 EcoBoost Hot-Side Intercooler Pipe kit is backed by our Lifetime Warranty.

Additional Attributes:

GTIN: 00811580033858
Install Difficulty: N/A
OptionLabel: Wrinkle Black
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct-fit for 2017-2020 Ford F-150 3.5L EcoBoost
SellingPoint02: Increased volume for better flow
SellingPoint03: Multiple pipes make installation fast and easy, no more snaking long pipes around your engine bay.
SellingPoint04: Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
SellingPoint05: Constant-tension worm-gear clamps keep a strong grip as pipes and boots expand and contract
SellingPoint06: Available in polished or wrinkle black powder-coated finish
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2017-2020 Ford F-150 3.5L V6 EcoBoost–2017-2020 Ford Raptor 3.5L V6 EcoBoost–2018-2019 Ford Expedition 3.5L V6 EcoBoost–2018-2019 Lincoln Navigator 3.5L V6 EcoBoost
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: N/A
TechSpec Engine Codes: 3.5L V6 EcoBoost

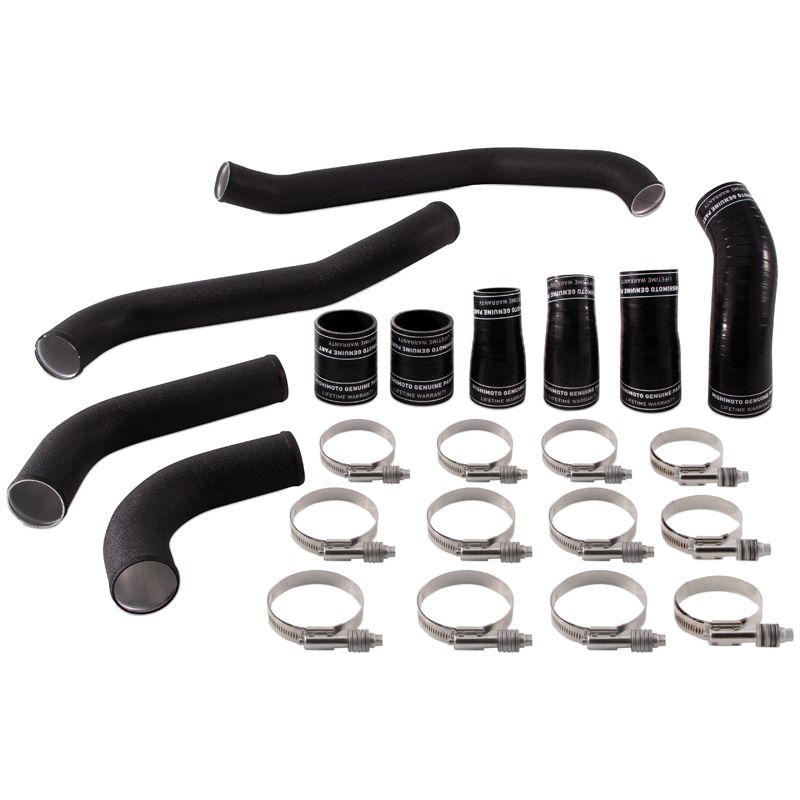

TechSpec Includes: (4) Aluminum Intercooler Pipes–(6) Silicone Boots with DuraCore Technology–(12) Constant-Tension Worm Gear Clamps–Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24 x 16 x 12 inches
Weight: 27.84 PG

PDF:

MMICP-F35T-17_INSTALLATIONGUIDE
