Ford F-150 3.5L EcoBoost Hot-Side Intercooler Pipe Kit, 2011-2014

The Mishimoto 2011?2014 F?150 EcoBoost Hot?Side Intercooler Pipe Kit is an ideal upgrade in reliability and performance. The Mishimoto kit features polished aluminum or wrinkle black piping accompanied by silicone couplers with DuraCore? technology. Engineered to eliminate restrictive bends, this hot?side pipe kit increases average airflow by 10-percent and internal volume by 41-percent when compared to stock. The DuraCore? couplers provide superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our couplers by preventing leaks and blowouts. To add even more reliability, Mishimoto's Constant Tension T?bolt clamps are included for an accurate and secure installation. Pairing this kit with our Mishimoto 2011?2014 F?150 EcoBoost Cold?Side Intercooler Pipe kit gives your truck the efficient, unimpeded airflow it needs to make up to 15 more horsepower and 21 ft/lbs more torque. To further improve your charge?air system, combine this pipe kit with the Mishimoto 2011?2014 F?150 EcoBoost performance intercooler. Of course, this kit is backed by our Mishimoto Lifetime Warranty, so you never need to worry about buying another intercooler pipe kit again.

Additional Attributes:

GTIN: 00748354036626
CARB EO Number: D-759-6
Install Difficulty: 4
OptionLabel: Polished
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2011-2014 Ford F-150 3.5L EcoBoost
SellingPoint02: 41-percent greater internal volume than stock
SellingPoint03: 10-percent greater flow than stock

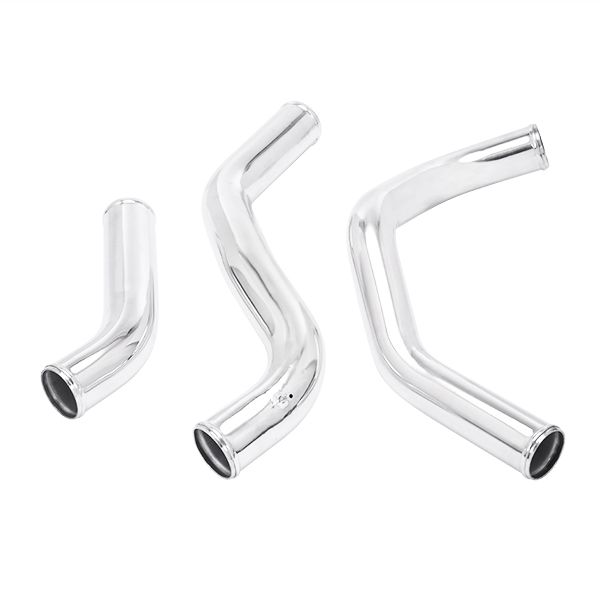

SellingPoint04: 2.5-in Aluminum intercooler pipes replace weak stock plastic pipes
SellingPoint05: No trimming of the engine cover or modifications necessary for installation
SellingPoint06: Includes all boots necessary for easy installation, including couplers to the intercooler

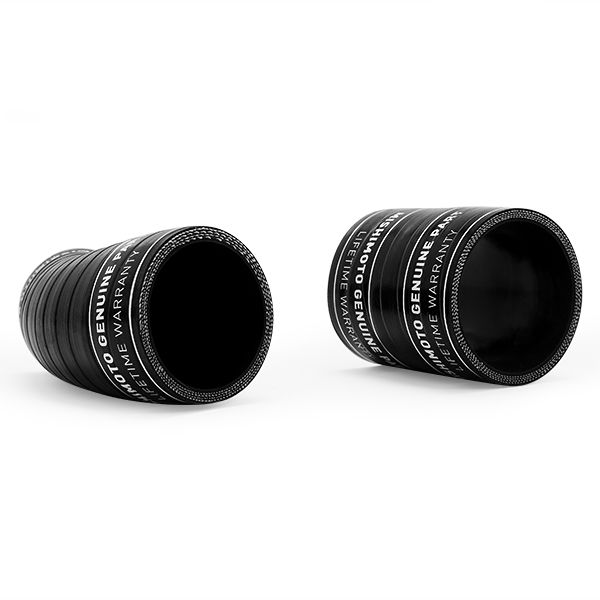

SellingPoint07: Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
SellingPoint08: Max gains of 15whp/21wtq when using Mishimoto’s full kit
SellingPoint09: Available in polished or wrinkle black powder-coated finish
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2011-2014 Ford F-150 3.5L V6 EcoBoost–2015-2017 Ford Expedition 3.5L V6 EcoBoost–2015-2017 Lincoln Navigator 3.5L V6 EcoBoost
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: P415
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: N/A
TechSpec Engine Codes: 3.5L V6 EcoBoost

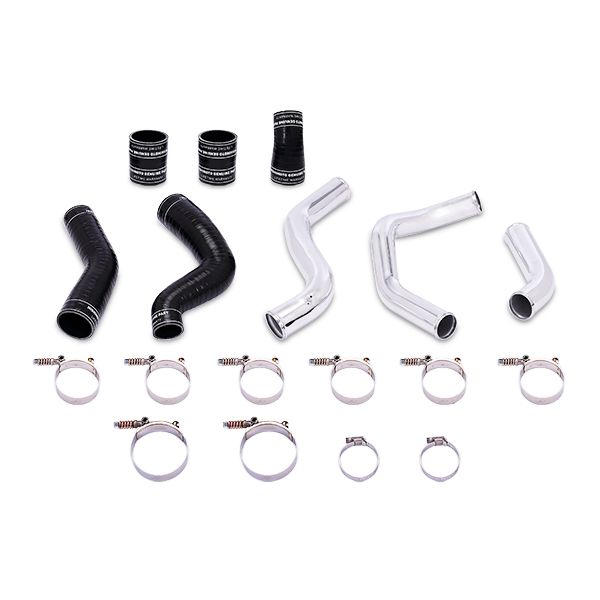

TechSpec Includes: (3) Aluminum Intercooler Pipes–(5) Silicone Boots w/ DuraCore Technology–(2) High-Torque Worm Gear Clamps–(8) Constant-Tension T-Bolt Clamps–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.1
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 2.36
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 28 x 18 x 18 inches
Weight: 54.65 PG
