Ford F-150 2.7L EcoBoost Cold-side Intercooler Pipe Kit, 2015-2017

Mishimoto has developed a direct-fit 2015-2017 2.7L F-150 EcoBoost cold-side intercooler pipe kit that allows owners to maximize the performance potential of their F-150.Our kit replaces the weak and unattractive plastic piping with free-flowing, durable, aluminum piping and silicone boots with DuraCore technology. The 44.5-percent larger volume of our cold-side pipe allows your 2015-2017 2.7L F-150 EcoBoost to breathe free and make the most of the its two turbochargers. DuraCore boots coupled with constant-tension worm-gear clamps provide superior strength and blow-out resistance, ensuring boost always makes it to its destination. Available with a sleek polished finish or powder-coated in stealthy wrinkle black, these pipes are a great addition to every F-150 EcoBoost from the show to the track.Combine this kit with the Mishimoto 2015-2017 2.7L hot-side pipes and Mishimoto 2015+ F-150 EcoBoost intercooler to unleash everything the twin-turbo 2.7L EcoBoost engine is capable of. As with all Mishimoto products, this 2015-2017 2.7L F-150 EcoBoost cold-side intercooler pipe kit is backed by our Lifetime Warranty.

Additional Attributes:

GTIN: 00748354037586
CARB EO Number: D-759-6
Install Difficulty: 4
OptionLabel: Wrinkle Black
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct-fit for 2015+ Ford F-150 2.7L EcoBoost
SellingPoint02: 44.5-percent volume increase over the stock cold-side pipe
SellingPoint03: Includes CNC quick-disconnect with pre-installed o-ring and spring clip for quick and easy installation
SellingPoint04: Constant-tension worm-gear clamps keep a strong grip as pipes and boots expand and contract
SellingPoint05: Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
SellingPoint06: Available in polished or wrinkle black powder-coated finish
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2015+ Ford F-150 2.7L V6 EcoBoost
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: N/A
TechSpec Engine Codes: 2.7L V6 EcoBoost

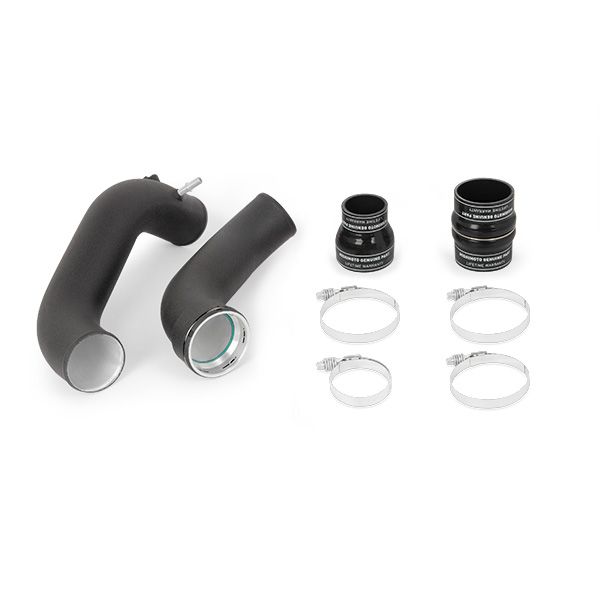

TechSpec Includes: (1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange–(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing–(2) Silicone Boots w/ DuraCore Technology–(4) Constant-Tension Worm Gear Clamps–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 3.5
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 3
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 28 x 18 x 18 inches
Weight: 54.65 PG
